基于官方的release 构建了一个docker 镜像，以下是测试使用

环境准备

• docker-compose 文件

version: "3"

services:

   mypg:

     image: dalongrong/wal2json:1.0

     ports:

     - "5432:5432"

     environment:

     - "POSTGRES_PASSWORD:dalong"

• 启动

docker-compose up -d

测试

• 创建slot 以及使用插件

pg_recvlogical -h 127.0.0.1 -U postgres -d postgres --slot test_slot --create-slot -P wal2json

• 监听变动

pg_recvlogical -h 127.0.0.1 -U postgres -d postgres --slot test_slot --start -o pretty-print=1 -f -

• 添加数据查看变动
  demo sql

CREATE TABLE table_with_pk (a SERIAL, b VARCHAR(30), c TIMESTAMP NOT NULL, PRIMARY KEY(a, c));

CREATE TABLE table_without_pk (a SERIAL, b NUMERIC(5,2), c TEXT);

?

BEGIN;

INSERT INTO table_with_pk (b, c) VALUES(‘Backup and Restore‘, now());

INSERT INTO table_with_pk (b, c) VALUES(‘Tuning‘, now());

INSERT INTO table_with_pk (b, c) VALUES(‘Replication‘, now());

DELETE FROM table_with_pk WHERE a < 3;

?

INSERT INTO table_without_pk (b, c) VALUES(2.34, ‘Tapir‘);

-- it is not added to stream because there isn‘t a pk or a replica identity

UPDATE table_without_pk SET c = ‘Anta‘ WHERE c = ‘Tapir‘;

COMMIT;

添加数据

psql -At -f example1.sql -h 127.0.0.1 -U postgres -d postgres

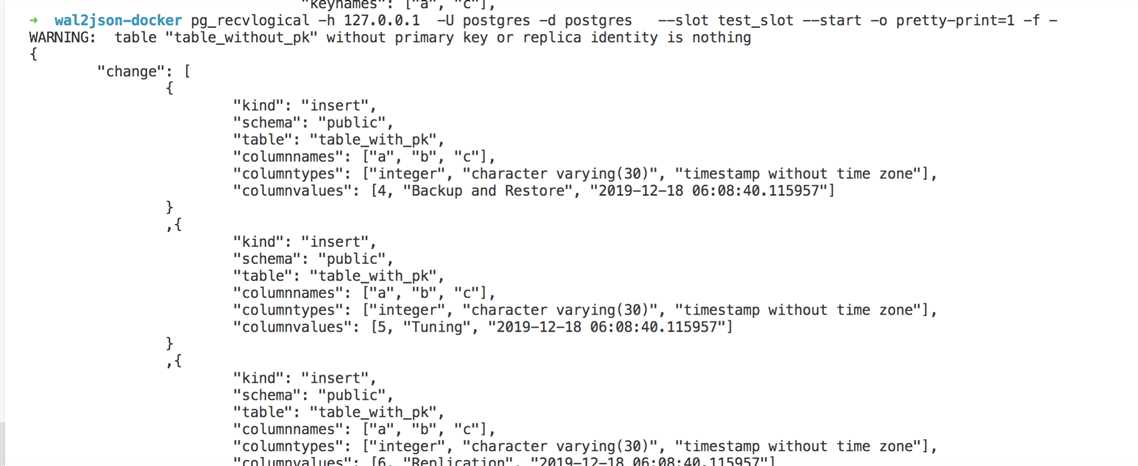

• 监听效果

说明

wal2json 功能强大，同时提供的配置参数也是比较多的，netflix即将开源的dblog 对于pg 的处理也是基于此扩展，详细的一些使用
可以参考github 仓库代码

参考资料

https://github.com/eulerto/wal2json
https://github.com/rongfengliang/wal2json-docker
https://github.com/rongfengliang/wal2json-docker-demo
