以下是一个简单的基于nodejs 的fork 子进程创建子任务，同时使用prometheus 暴露一些简单的metrics
使用express 框架

环境准备

• 项目结构

├── Dockerfile

├── README.md

├── app.js

├── docker-compose.yaml

├── grafana

│ └── metrics.json

├── metrics.js

├── package.json

├── prometheus.yml

├── send_mail.js

├── taskstatus.js

├── utils.js

└── yarn.lock

• 结构说明
  send_mail.js 为简单的fork 子进程的代码
  taskstatus.js 为存储子进程任务状态的
  utils.js 为一个简单的工具模块，主要对于已经完成的子任务的清理
  metrics.js 为prometheus metrics 定义
  app.js express rest 接口操作以及任务处理的核心代码
  docker-compose.yaml docker-compose 全家桶运行
  Dockerfile nodejs 应用容器化
  grafana/metrics.json 为应用grafana 对于 prometheus 的dashboard 配置
• 代码说明
  app.js 核心处理

const { fork } = require(‘child_process‘)

const express = require("express")

const util = require("./utils")

const uuid = require("uuid/v4")

const { child_process_status_all, child_process_status_pending, child_process_status_ok } = require("./taskstatus")

const { child_process_status_all_counter, child_process_status_pending_gauge, child_process_status_ok_counter, initMetrics, initGcStats, process_ok_clean_timer__status, up } = require("./metrics")

const app = express();

const main_process_id = process.pid;

let interval = false;

?

/**

 * metrics route register 注册prometheus metrcis 路由

 */

app.get(‘/metrics‘, (req, res) => {

  initMetrics(req, res);

})

/**

 * disable process clean timer 禁用定时任务清理

 */

app.get("/disable_timer", (req, res) => {

  if (interval) {

    interval = false;

 }

  process_ok_clean_timer__status.set(0)

  res.send({ timer_statuss: false })

})

/**

 * enable process clean timer 启用定时任务清理子进程

 */

app.get("/enable_timer", (req, res) => {

  if (interval == false) {

    interval = true;

 }

  process_ok_clean_timer__status.set(1)

  res.send({ timer_statuss: true })

})

?

/**

 * for create process workers

 */

app.get(‘/endpoint‘, (req, res) => {

  // fork another process 子进程的创建以及消息的通信（状态以及部分prometheus metrics 维护）

  const myprocess = fork(‘./send_mail.js‘);

  child_process_status_pending[myprocess.pid] = {

    status: "pending"

 }

  child_process_status_all[myprocess.pid] = {

    status: "pending"

 }

  child_process_status_all_counter.inc(1)

  child_process_status_pending_gauge.inc(1)

  console.log(`fork process pid:${myprocess.pid}`)

  const mails = uuid();

  // send list of e-mails to forked process

  myprocess.send({ mails });

  // listen for messages from forked process

  myprocess.on(‘message‘, (message) => {

    console.log(`Number of mails sent ${message.counter}`);

    child_process_status_ok[myprocess.pid] = {

      status: "ok"

   }

    child_process_status_ok_counter.inc(1)

    child_process_status_pending_gauge.dec(1)

    child_process_status_all[myprocess.pid] = {

      status: "ok"

   }

    delete child_process_status_pending[myprocess.pid]

 });

  return res.json({ status: true, sent: true });

});

?

/**

 * call api for stop processed workers   删除任务完成的子进程

 */

app.get("/stop", (req, res) => {

  util.stopProcess(main_process_id, (err, data) => {

    if (err == null) {

      res.send({ timer_clean_status: "ok" })

   }

 })

})

?

// init gc metrics   gc metrcis 暴露

initGcStats()

// clean ok process timer 定时任务清理完成的进程

setInterval(function () {

  if (interval) {

    util.stopProcess(main_process_id, (err, data) => {

      if (err == null) {

        console.log({ timer_clean_status: "ok" })

     } else {

        process_ok_clean_timer__status.set(0)

     }

   })

 }

}, 10000)

// set metric status to up

up.set(1)

app.listen(8080, "0.0.0.0", () => {

  console.log(`go to http://localhost:8080/ to generate traffic`)

}).on("error", () => {

  up.set(0)

})

utils.js 定时任务清理模块

const psTree = require("ps-tree")

const {spawn } = require(‘child_process‘)

const {child_process_status_ok} = require("./taskstatus")

const {process_ok_clean_timer__status} = require("./metrics")

/**

 *

 * @param {mainProcessID} mainProcessID

 * @param {cb} callback for check status

 */

function stopProcess(mainProcessID,cb){

    psTree(mainProcessID, function (err, children) {

        if (err){

          process_ok_clean_timer__status.set(0)

       }

        let pids = [];

        for (const key in child_process_status_ok) {

          if (child_process_status_ok.hasOwnProperty(key)) {

            pids.push(key)

            delete child_process_status_ok[key]

         }

       }

        let info = children.filter(item => item.COMM == "ps" || item.COMMAND == "ps").map(function (p) { return p.PID })

        pids.push(...info)

        console.log(`stop child process ids: ${JSON.stringify(pids)}`)

        spawn(‘kill‘, [‘-9‘].concat(pids));

        cb(null,"ok")

     })

}

module.exports = {

    stopProcess

};

metrics.js prometheus metrics 模块
主要是metrics 定义，以及一个初始化的方法

const Prometheus = require("prom-client")

const gcStats = require(‘prometheus-gc-stats‘)

module.exports = {

    child_process_status_all_counter:new Prometheus.Counter({

        name: ‘child_process_status_all_total‘,

        help: ‘all running process‘,

        labelNames: [‘process_all‘]

     }),

      child_process_status_pending_gauge:new Prometheus.Gauge({

        name: ‘current_child_process_status_pending‘,

        help: ‘current pending process‘,

        labelNames: [‘process_pending‘]

     }),

      child_process_status_ok_counter:new Prometheus.Counter({

        name: ‘child_process_status_ok_total‘,

        help: ‘all ok process‘,

        labelNames: [‘process_ok‘]

     }),

      process_ok_clean_timer__status:new Prometheus.Gauge({

        name: ‘process_ok_clean_timer_status‘,

        help: ‘process_ok_clean_timer_status‘,

        labelNames: [‘process_timer‘]

     }),

      up:new Prometheus.Gauge({

        name: ‘up‘,

        help: ‘metrics_status‘,

        labelNames: [‘metrics_status‘]

     }),

      initGcStats: function(){

        const startGcStats = gcStats(Prometheus.register)

        startGcStats()

     },

      initMetrics:function(req,res){

        res.set(‘Content-Type‘, Prometheus.register.contentType)

        res.end(Prometheus.register.metrics())

     }

}

taskstatus.js 状态存储（很简单，就是一个json 对象）

module.exports = {

    child_process_status_all:{},

    child_process_status_pending:{},

    child_process_status_ok:{}

}

send_mail.js 子进程任务处理

async function sendMultipleMails(mails) {

    let sendMails = 0;

    // logic for

    // sending multiple mails

    return sendMails;

 }

 // receive message from master process

 process.on(‘message‘, async (message) => {

   console.log("get messageId",message)

   const numberOfMailsSend = await sendMultipleMails(message.mailsid);

   setTimeout(()=>{

    process.send({ counter: numberOfMailsSend });

   },Number.parseInt(Math.random()*10000))

   // send response to master process

 });

Dockerfile 为了方便使用docker 运行

FROM node:12.14.0-alpine3.9

WORKDIR /app

COPY app.js /app/app.js

COPY package.json /app/package.json

COPY yarn.lock /app/yarn.lock

COPY metrics.js /app/metrics.js

COPY utils.js /app/utils.js

COPY taskstatus.js /app/taskstatus.js

COPY send_mail.js /app/send_mail.js

#CMD [ "yarn","app"]

EXPOSE 8080

RUN yarn

ENTRYPOINT [ "yarn","app" ]

docker-compose 文件主要是包含prometheus 以及grafana还有nodejs 应用

version: "3"

services:

  app:

    build: ./

    ports:

    - "8080:8080"

    image: dalongrong/node-process

  grafana:

    image: grafana/grafana

    ports:

      - "3000:3000"

  prometheus:

    image: prom/prometheus

    volumes:

      - "./prometheus.yml:/etc/prometheus/prometheus.yml"

    ports:

      - "9090:9090"

启动&&效果

• 启动

docker-compose up -d

• 简单压测

ab -n 200 -c 20 http://localhost:8080/endpoint

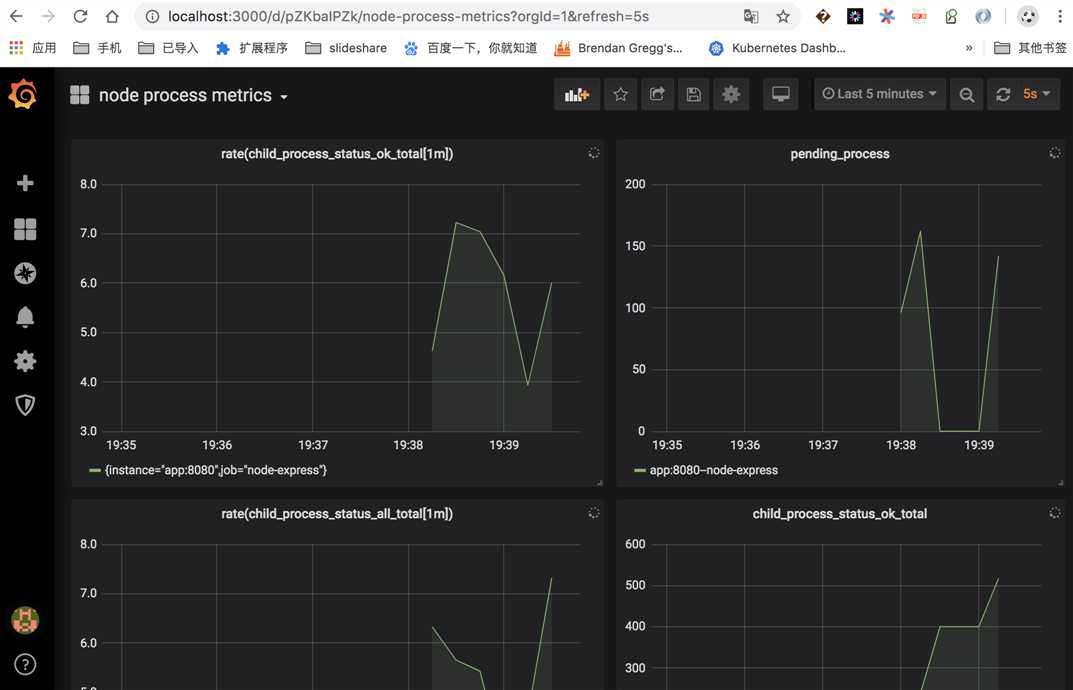

• grafana 效果

说明

以上就是一个简单的基于fork 以及prometheus 的nodejs 子任务创建

参考资料

https://github.com/rongfengliang/node-process-fork-learning
https://nodejs.org/api/child_process.html#child_process_child_process_fork_modulepath_args_options
