CSS Grid 网格布局
网格布局在二维画面里我认为还是非常好用的，所以我打算分享一下我对网格布局的粗浅认知，
所以我打算以一个简单地案例加以分析说明情况，
想了想，就用骰子吧，它的六个面很适合做一通详解
首先，当然是创建总体

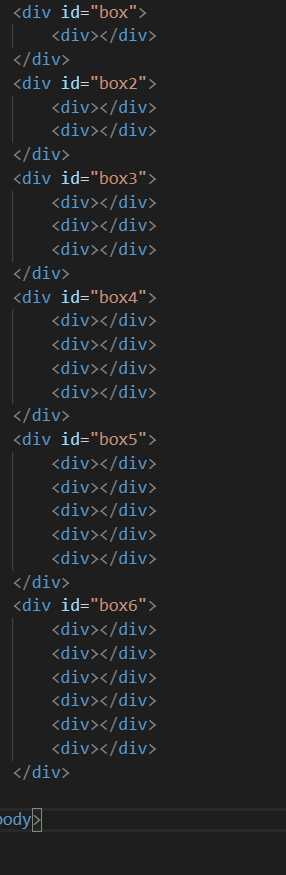

然后稍稍分析写好结构，第一个因为只有一个点所以一个div,第二个有两个点所以两个div，第三个有三个点所以三个div。以此类推。

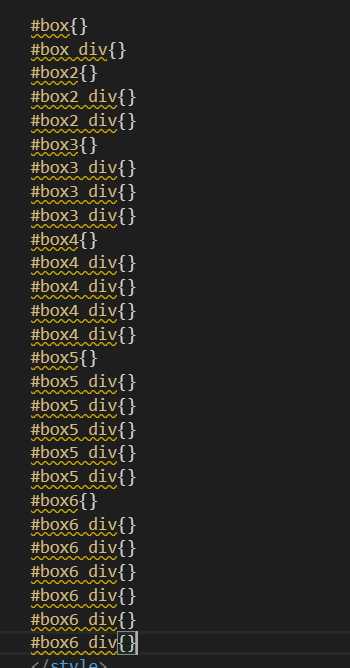

再接着写用到的用到的选择器，很容易知道我要用到六个盒子每个面有对应的点数自然也就写几个div
准备工作做好，然后开始书写再BOX中给长和宽以及边框，当然弄个圆角可以美化一下，
留出一点空间，然后转grid，接着经过分析:

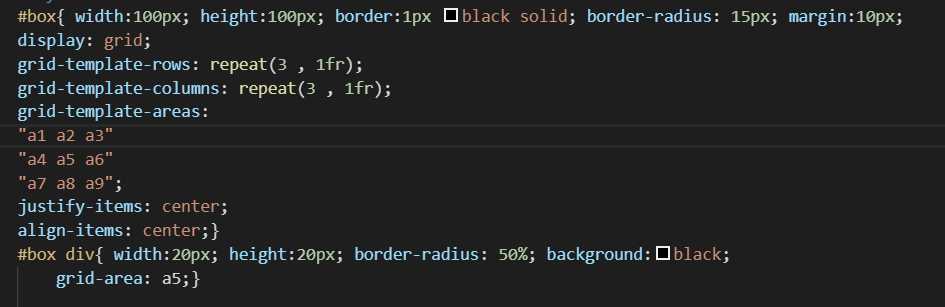

父元素的设置-通过display:grid将盒子转成网格布局，在通过grid-template-columns和grid-template-rows将盒子设计成三行三列，
用grid-template-areas给每个区域赋予名号；
子元素的设置：因一点在中间，故而grid-area:a5,将div放到中间a5区域，
又因要居中所以在父容器加上justify-items：center以及align-items:center

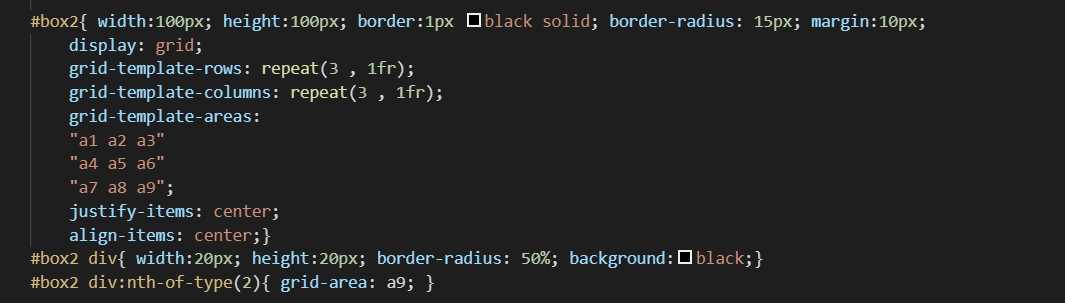

第二面，当然就好书写了，首先面一样大，所以直接写，注意div
思考得知二点位置a1+a9

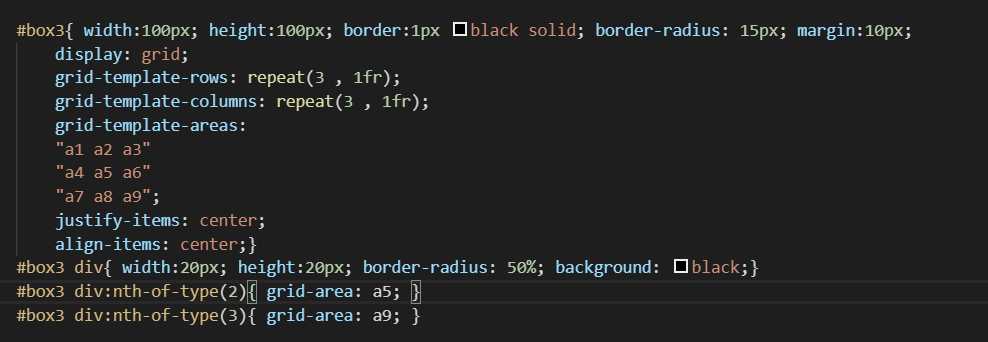

然后是三点位置a1+a5+a9
以此类推，书写好每个面得点数。ok这样我们就书写完成了

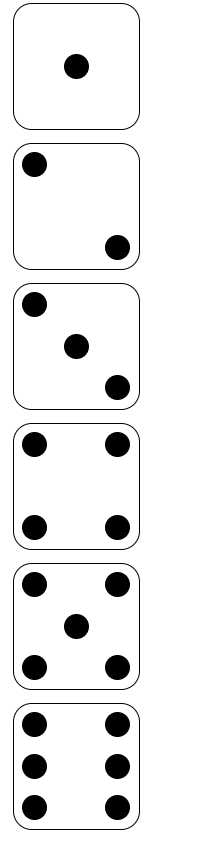

接下来给大家看一下全部布局、结构以及效果
1 <!DOCTYPE html> 2 <html lang="en"> 3 <head> 4 <meta charset="UTF-8"> 5 <meta name="viewport" content="width=device-width, initial-scale=1.0"> 6 <meta http-equiv="X-UA-Compatible" content="ie=edge"> 7 <title>Document</title> 8 <style> 9 #box{ width:100px; height:100px; border:1px black solid; border-radius: 15px; margin:10px; 10 display: grid; 11 grid-template-rows: repeat(3 , 1fr); 12 grid-template-columns: repeat(3 , 1fr); 13 grid-template-areas: 14 "a1 a2 a3" 15 "a4 a5 a6" 16 "a7 a8 a9"; 17 justify-items: center; 18 align-items: center;} 19 #box div{ width:20px; height:20px; border-radius: 50%; background:black; 20 grid-area: a5;} 21 22 #box2{ width:100px; height:100px; border:1px black solid; border-radius: 15px; margin:10px; 23 display: grid; 24 grid-template-rows: repeat(3 , 1fr); 25 grid-template-columns: repeat(3 , 1fr); 26 grid-template-areas: 27 "a1 a2 a3" 28 "a4 a5 a6" 29 "a7 a8 a9"; 30 justify-items: center; 31 align-items: center;} 32 #box2 div{ width:20px; height:20px; border-radius: 50%; background:black;} 33 #box2 div:nth-of-type(2){ grid-area: a9; } 34 35 #box3{ width:100px; height:100px; border:1px black solid; border-radius: 15px; margin:10px; 36 display: grid; 37 grid-template-rows: repeat(3 , 1fr); 38 grid-template-columns: repeat(3 , 1fr); 39 grid-template-areas: 40 "a1 a2 a3" 41 "a4 a5 a6" 42 "a7 a8 a9"; 43 justify-items: center; 44 align-items: center;} 45 #box3 div{ width:20px; height:20px; border-radius: 50%; background: black;} 46 #box3 div:nth-of-type(2){ grid-area: a5; } 47 #box3 div:nth-of-type(3){ grid-area: a9; } 48 49 #box4{ width:100px; height:100px; border:1px black solid; border-radius: 15px; margin:10px; 50 display: grid; 51 grid-template-rows: repeat(3 , 1fr); 52 grid-template-columns: repeat(3 , 1fr); 53 grid-template-areas: 54 "a1 a2 a3" 55 "a4 a5 a6" 56 "a7 a8 a9"; 57 justify-items: center; 58 align-items: center;} 59 #box4 div{ width:20px; height:20px; border-radius: 50%; background:black;} 60 #box4 div:nth-of-type(2){ grid-area: a3; } 61 #box4 div:nth-of-type(3){ grid-area: a7; } 62 #box4 div:nth-of-type(4){ grid-area: a9; } 63 #box5{ width:100px; height:100px; border:1px black solid; border-radius: 15px; margin:10px; 64 display: grid; 65 grid-template-rows: repeat(3 , 1fr); 66 grid-template-columns: repeat(3 , 1fr); 67 grid-template-areas: 68 "a1 a2 a3" 69 "a4 a5 a6" 70 "a7 a8 a9"; 71 justify-items: center; 72 align-items: center;} 73 #box5 div{ width:20px; height:20px; border-radius: 50%; background:black;} 74 #box5 div:nth-of-type(2){ grid-area: a3; } 75 #box5 div:nth-of-type(3){ grid-area: a5; } 76 #box5 div:nth-of-type(4){ grid-area: a7; } 77 #box5 div:nth-of-type(5){ grid-area: a9; } 78 #box6{ width:100px; height:100px; border:1px black solid; border-radius: 15px; margin:10px; 79 display: grid; 80 grid-template-rows: repeat(3 , 1fr); 81 grid-template-columns: repeat(3 , 1fr); 82 grid-template-areas: 83 "a1 a2 a3" 84 "a4 a5 a6" 85 "a7 a8 a9"; 86 justify-items: center; 87 align-items: center;} 88 #box6 div{ width:20px; height:20px; border-radius: 50%; background:black;} 89 #box6 div:nth-of-type(2){ grid-area: a3; } 90 #box6 div:nth-of-type(3){ grid-area: a4; } 91 #box6 div:nth-of-type(4){ grid-area: a6; } 92 #box6 div:nth-of-type(5){ grid-area: a7; } 93 #box6 div:nth-of-type(6){ grid-area: a9; } 94 </style> 95 </head> 96 <body> 97 <div id="box"> 98 <div></div> 99 </div>100 <div id="box2">101 <div></div>102 <div></div>103 </div>104 <div id="box3">105 <div></div>106 <div></div>107 <div></div>108 </div>109 <div id="box4">110 <div></div>111 <div></div>112 <div></div>113 <div></div>114 </div>115 <div id="box5">116 <div></div>117 <div></div>118 <div></div>119 <div></div>120 <div></div>121 </div>122 <div id="box6">123 <div></div>124 <div></div>125 <div></div>126 <div></div>127 <div></div>128 <div></div>129 </div>130 131 </body>132 </html>
好了，以上就是我要分享的，我是《逆战班》幻小梦，粗鄙之见希望可以给大家有所帮助。
谢谢！
