先上示例图：

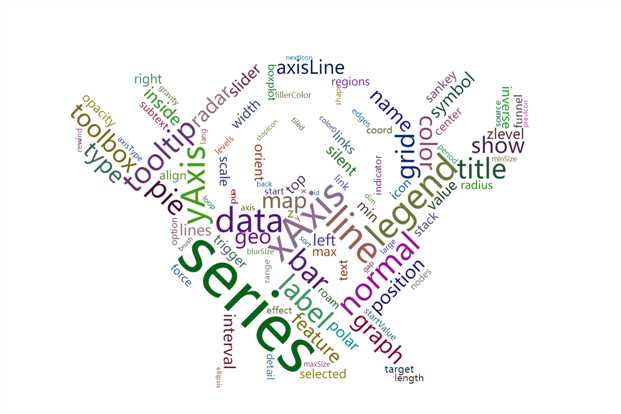

这是自定义图片的示例图
先给最简单的非自定义图代码
1 <html> 2 <head> 3 <meta charset="utf-8"> 4 <!-- <script src=‘https://cdn.bootcss.com/echarts/3.7.0/echarts.simple.js‘></script> --> 5 6 <script src=‘../../echarts/echarts.min.js‘></script> 7 8 <script src=‘../dist/echarts-wordcloud.js‘></script> 9 </head> 10 <body> 11 <style> 12 html, body, #main { 13 width: 100%; 14 height: 100%; 15 margin: 0; 16 } 17 </style> 18 <div id=‘main‘></div> 19 <script> 20 var chart = echarts.init(document.getElementById(‘main‘)); 21 22 var option = { 23 tooltip: {}, 24 series: [ { 25 type: ‘wordCloud‘, 26 gridSize: 2, 27 sizeRange: [12, 50], 28 rotationRange: [-90, 90], 29 shape: ‘pentagon‘, 30 width: 600, 31 height: 400, 32 drawOutOfBound: true, 33 textStyle: { 34 normal: { 35 color: function () { 36 return ‘rgb(‘ + [ 37 Math.round(Math.random() * 160), 38 Math.round(Math.random() * 160), 39 Math.round(Math.random() * 160) 40 ].join(‘,‘) + ‘)‘; 41 } 42 }, 43 emphasis: { 44 shadowBlur: 10, 45 shadowColor: ‘#333‘ 46 } 47 }, 48 data: [ 49 { 50 name: ‘Sam S Club‘, 51 value: 10000, 52 textStyle: { 53 normal: { 54 color: ‘black‘ 55 }, 56 emphasis: { 57 color: ‘red‘ 58 } 59 } 60 }, 61 { 62 name: ‘Macys‘, 63 value: 6181 64 }, 65 { 66 name: ‘Amy Schumer‘, 67 value: 4386 68 }, 69 { 70 name: ‘Jurassic World‘, 71 value: 4055 72 }, 73 { 74 name: ‘Charter Communications‘, 75 value: 2467 76 }, 77 { 78 name: ‘Chick Fil A‘, 79 value: 2244 80 }, 81 { 82 name: ‘Planet Fitness‘, 83 value: 1898 84 }, 85 { 86 name: ‘Pitch Perfect‘, 87 value: 1484 88 }, 89 { 90 name: ‘Express‘, 91 value: 1112 92 }, 93 { 94 name: ‘Home‘, 95 value: 965 96 }, 97 { 98 name: ‘Johnny Depp‘, 99 value: 847100 },101 {102 name: ‘Lena Dunham‘,103 value: 582104 },105 {106 name: ‘Lewis Hamilton‘,107 value: 555108 },109 {110 name: ‘KXAN‘,111 value: 550112 },113 {114 name: ‘Mary Ellen Mark‘,115 value: 462116 },117 {118 name: ‘Farrah Abraham‘,119 value: 366120 },121 {122 name: ‘Rita Ora‘,123 value: 360124 },125 {126 name: ‘Serena Williams‘,127 value: 282128 },129 {130 name: ‘NCAA baseball tournament‘,131 value: 273132 },133 {134 name: ‘Point Break‘,135 value: 265136 }137 ]138 } ]139 };140 141 chart.setOption(option);142 143 window.onresize = chart.resize;144 </script>145 </body>146 </html>
官方非自定义图片
下面这个是自定义图片教程
1，数据填写
1 var keywords = {2 "visualMap": 22199,3 "continuous": 10288,4 "contoller": 620,5 "series": 274470,6 "gauge": 123117 .......8 }
这一部分都是那些文字，可以用ajax或者内嵌java代码填写
2，下载图片（尽量下载那些背景纯白的图片）
3，更改路径（不需要考虑动漫人物颜色）
1 maskImage.src = ‘../img/test.png‘;
4，复制源码：
1 <html> 2 <head> 3 <meta charset="utf-8"> 4 <script src=‘https://cdn.bootcss.com/echarts/3.7.2/echarts.simple.js‘></script> 5 <script src=‘../dist/echarts-wordcloud.js‘></script> 6 </head> 7 <body> 8 <style> 9 html, body, #main { 10 width: 100%; 11 height: 100%; 12 margin: 0; 13 } 14 </style> 15 <div id=‘main‘></div> 16 <script> 17 var chart = echarts.init(document.getElementById(‘main‘)); 18 19 var keywords = { 20 "visualMap": 22199, 21 "continuous": 10288, 22 "contoller": 620, 23 "series": 274470, 24 "gauge": 12311, 25 "detail": 1206, 26 "piecewise": 4885, 27 "textStyle": 32294, 28 "markPoint": 18574, 29 "pie": 38929, 30 "roseType": 969, 31 "label": 37517, 32 "emphasis": 12053, 33 "yAxis": 57299, 34 "name": 15418, 35 "type": 22905, 36 "gridIndex": 5146, 37 "normal": 49487, 38 "itemStyle": 33837, 39 "min": 4500, 40 "silent": 5744, 41 "animation": 4840, 42 "offsetCenter": 232, 43 "inverse": 3706, 44 "borderColor": 4812, 45 "markLine": 16578, 46 "line": 76970, 47 "radiusAxis": 6704, 48 "radar": 15964, 49 "data": 60679, 50 "dataZoom": 24347, 51 "tooltip": 43420, 52 "toolbox": 25222, 53 "geo": 16904, 54 "parallelAxis": 4029, 55 "parallel": 5319, 56 "max": 3393, 57 "bar": 43066, 58 "heatmap": 3110, 59 "map": 20285, 60 "animationDuration": 3425, 61 "animationDelay": 2431, 62 "splitNumber": 5175, 63 "axisLine": 12738, 64 "lineStyle": 19601, 65 "splitLine": 7133, 66 "axisTick": 8831, 67 "axisLabel": 17516, 68 "pointer": 590, 69 "color": 23426, 70 "title": 38497, 71 "formatter": 15214, 72 "slider": 7236, 73 "legend": 66514, 74 "grid": 28516, 75 "smooth": 1295, 76 "smoothMonotone": 696, 77 "sampling": 757, 78 "feature": 12815, 79 "saveAsImage": 2616, 80 "polar": 6279, 81 "calculable": 879, 82 "backgroundColor": 9419, 83 "excludeComponents": 130, 84 "show": 20620, 85 "text": 2592, 86 "icon": 2782, 87 "dimension": 478, 88 "inRange": 1060, 89 "animationEasing": 2983, 90 "animationDurationUpdate": 2259, 91 "animationDelayUpdate": 2236, 92 "animationEasingUpdate": 2213, 93 "xAxis": 89459, 94 "angleAxis": 5469, 95 "showTitle": 484, 96 "dataView": 2754, 97 "restore": 932, 98 "timeline": 10104, 99 "range": 477,100 "value": 5732,101 "precision": 878,102 "target": 1433,103 "zlevel": 5361,104 "symbol": 8718,105 "interval": 7964,106 "symbolSize": 5300,107 "showSymbol": 1247,108 "inside": 8913,109 "xAxisIndex": 3843,110 "orient": 4205,111 "boundaryGap": 5073,112 "nameGap": 4896,113 "zoomLock": 571,114 "hoverAnimation": 2307,115 "legendHoverLink": 3553,116 "stack": 2907,117 "throttle": 466,118 "connectNulls": 897,119 "clipOverflow": 826,120 "startValue": 551,121 "minInterval": 3292,122 "opacity": 3097,123 "splitArea": 4775,124 "filterMode": 635,125 "end": 409,126 "left": 6475,127 "funnel": 2238,128 "lines": 6403,129 "baseline": 431,130 "align": 2608,131 "coord": 897,132 "nameTextStyle": 7477,133 "width": 4338,134 "shadowBlur": 4493,135 "effect": 929,136 "period": 225,137 "areaColor": 631,138 "borderWidth": 3654,139 "nameLocation": 4418,140 "position": 11723,141 "containLabel": 1701,142 "scatter": 10718,143 "areaStyle": 5310,144 "scale": 3859,145 "pieces": 414,146 "categories": 1000,147 "selectedMode": 3825,148 "itemSymbol": 273,149 "effectScatter": 7147,150 "fontStyle": 3376,151 "fontSize": 3386,152 "margin": 1034,153 "iconStyle": 2257,154 "link": 1366,155 "axisPointer": 5245,156 "showDelay": 896,157 "graph": 22194,158 "subtext": 1442,159 "selected": 2881,160 "barCategoryGap": 827,161 "barGap": 1094,162 "barWidth": 1521,163 "coordinateSystem": 3622,164 "barBorderRadius": 284,165 "z": 4014,166 "polarIndex": 1456,167 "shadowOffsetX": 3046,168 "shadowColor": 3771,169 "shadowOffsetY": 2475,170 "height": 1988,171 "barMinHeight": 575,172 "lang": 131,173 "symbolRotate": 2752,174 "symbolOffset": 2549,175 "showAllSymbol": 942,176 "transitionDuration": 993,177 "bottom": 3724,178 "fillerColor": 229,179 "nameMap": 1249,180 "barMaxWidth": 747,181 "radius": 2103,182 "center": 2425,183 "magicType": 3276,184 "labelPrecision": 248,185 "option": 654,186 "seriesIndex": 935,187 "controlPosition": 121,188 "itemGap": 3188,189 "padding": 3481,190 "shadowStyle": 347,191 "boxplot": 1394,192 "labelFormatter": 264,193 "realtime": 631,194 "dataBackgroundColor": 239,195 "showDetail": 247,196 "showDataShadow": 217,197 "x": 684,198 "valueDim": 499,199 "onZero": 931,200 "right": 3255,201 "clockwise": 1035,202 "itemWidth": 1732,203 "trigger": 3840,204 "axis": 379,205 "selectedOffset": 670,206 "startAngle": 1293,207 "minAngle": 590,208 "top": 4637,209 "avoidLabelOverlap": 870,210 "labelLine": 3785,211 "sankey": 2933,212 "endAngle": 213,213 "start": 779,214 "roam": 1738,215 "fontWeight": 2828,216 "fontFamily": 2490,217 "subtextStyle": 2066,218 "indicator": 853,219 "sublink": 708,220 "zoom": 1038,221 "subtarget": 659,222 "length": 1060,223 "itemSize": 505,224 "controlStyle": 452,225 "yAxisIndex": 2529,226 "edgeLabel": 1188,227 "radiusAxisIndex": 354,228 "scaleLimit": 1313,229 "geoIndex": 535,230 "regions": 1892,231 "itemHeight": 1290,232 "nodes": 644,233 "candlestick": 3166,234 "crossStyle": 466,235 "edges": 369,236 "links": 3277,237 "layout": 846,238 "barBorderColor": 721,239 "barBorderWidth": 498,240 "treemap": 3865,241 "y": 367,242 "valueIndex": 704,243 "showLegendSymbol": 482,244 "mapValueCalculation": 492,245 "optionToContent": 264,246 "handleColor": 187,247 "handleSize": 271,248 "showContent": 1853,249 "angleAxisIndex": 406,250 "endValue": 327,251 "triggerOn": 1720,252 "contentToOption": 169,253 "buttonColor": 71,254 "rotate": 1144,255 "hoverLink": 335,256 "outOfRange": 491,257 "textareaColor": 58,258 "textareaBorderColor": 58,259 "textColor": 60,260 "buttonTextColor": 66,261 "category": 336,262 "hideDelay": 786,263 "alwaysShowContent": 1267,264 "extraCssText": 901,265 "effectType": 277,266 "force": 1820,267 "rippleEffect": 723,268 "edgeSymbolSize": 329,269 "showEffectOn": 271,270 "gravity": 199,271 "edgeLength": 193,272 "layoutAnimation": 152,273 "length2": 169,274 "enterable": 957,275 "dim": 83,276 "readOnly": 143,277 "levels": 444,278 "textGap": 256,279 "pixelRatio": 84,280 "nodeScaleRatio": 232,281 "draggable": 249,282 "brushType": 158,283 "radarIndex": 152,284 "large": 182,285 "edgeSymbol": 675,286 "largeThreshold": 132,287 "leafDepth": 73,288 "childrenVisibleMin": 73,289 "minSize": 35,290 "maxSize": 35,291 "sort": 90,292 "funnelAlign": 61,293 "source": 336,294 "nodeClick": 200,295 "curveness": 350,296 "areaSelectStyle": 104,297 "parallelIndex": 52,298 "initLayout": 359,299 "trailLength": 116,300 "boxWidth": 20,301 "back": 53,302 "rewind": 110,303 "zoomToNodeRatio": 80,304 "squareRatio": 60,305 "parallelAxisDefault": 358,306 "checkpointStyle": 440,307 "nodeWidth": 49,308 "color0": 62,309 "layoutIterations": 56,310 "nodeGap": 54,311 "color(Array": 76,312 "<string>)": 76,313 "repulsion": 276,314 "tiled": 105,315 "currentIndex": 145,316 "axisType": 227,317 "loop": 97,318 "playInterval": 112,319 "borderColor0": 23,320 "gap": 43,321 "autoPlay": 123,322 "showPlayBtn": 25,323 "breadcrumb": 119,324 "colorMappingBy": 85,325 "id": 18,326 "blurSize": 85,327 "minOpacity": 50,328 "maxOpacity": 54,329 "prevIcon": 12,330 "children": 21,331 "shape": 98,332 "nextIcon": 12,333 "showNextBtn": 17,334 "stopIcon": 21,335 "visibleMin": 83,336 "visualDimension": 97,337 "colorSaturation": 56,338 "colorAlpha": 66,339 "emptyItemWidth": 10,340 "inactiveOpacity": 4,341 "activeOpacity": 4,342 "showPrevBtn": 19,343 "playIcon": 26,344 "ellipsis": 19,345 "gapWidth": 19,346 "borderColorSaturation": 10,347 "handleIcon": 2,348 "handleStyle": 6,349 "borderType": 1,350 "constantSpeed": 1,351 "polyline": 2,352 "blendMode": 1,353 "dataBackground": 1,354 "textAlign": 1,355 "textBaseline": 1,356 "brush": 3357 };358 359 var data = [];360 for (var name in keywords) {361 data.push({362 name: name,363 value: Math.sqrt(keywords[name])364 })365 }366 367 var maskImage = new Image();368 369 var option = {370 series: [ {371 type: ‘wordCloud‘,372 sizeRange: [10, 100],373 rotationRange: [-90, 90],374 rotationStep: 45,375 gridSize: 2,376 shape: ‘pentagon‘,377 maskImage: maskImage,378 drawOutOfBound: false,379 textStyle: {380 normal: {381 color: function () {382 return ‘rgb(‘ + [383 Math.round(Math.random() * 160),384 Math.round(Math.random() * 160),385 Math.round(Math.random() * 160)386 ].join(‘,‘) + ‘)‘;387 }388 },389 emphasis: {390 shadowBlur: 10,391 shadowColor: ‘#333‘392 }393 },394 data: data.sort(function (a, b) {395 return b.value - a.value;396 })397 } ]398 };399 400 maskImage.onload = function () {401 option.series[0].maskImage402 chart.setOption(option);403 }404 405 maskImage.src = ‘../img/test.png‘;406 407 window.onresize = function () {408 chart.resize();409 }410 411 </script>412 </body>413 </html>

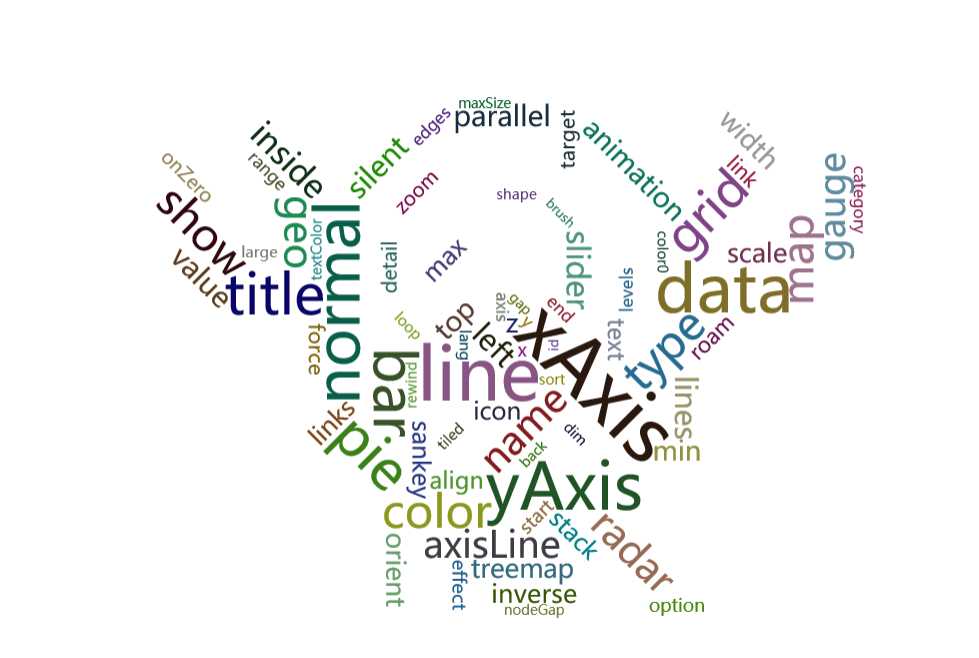

自定义照片
JAR包下载地址：
https://github.com/Smartisa/JAR
