MMM 是一套支持双主故障切换以及双主日常管理的第三方软件。MMM 由 Perl 开发，用来管理和监控双主复制，虽然是双主架构，但是业务上同一时间只允许一个节点进行写入操作。
MMM 包含两类角色: writer 和 reader, 分别对应读写节点和只读节点。
使用 MMM 管理双主节点的情况下，当 writer 节点出现宕机(假定是 master1)，程序会自动移除该节点上的读写 VIP，切换到 Master2 ，并设置 Master2 为 read_only = 0, 同时，所有 Slave 节点会指向 Master2。
除了管理双主节点，MMM 也会管理 Slave 节点，在出现宕机、复制延迟或复制错误，MMM 会移除该节点的 VIP，直到节点恢复正常。
MMM 由两类程序组成
monitor: 监控集群内数据库的状态，在出现异常时发布切换命令，一般和数据库分开部署agent: 运行在每个 MySQL 服务器上的代理进程，monitor 命令的执行者，完成监控的探针工作和具体服务设置，例如设置 VIP、指向新同步节点其架构如下:
以上述架构为例，描述一下故障转移的流程，现在假设 Master1 宕机
read_only=1select master_pos_wait() 等待同步完毕read_only=0从整个流程可以看到，如果主节点出现故障，MMM 会自动实现切换，不需要人工干预，同时我们也能看出一些问题，就是数据库挂掉后，只是做了切换，不会主动补齐丢失的数据，所以 MMM 会有数据不一致性的风险。
如果服务器能连网或者有合适 yum 源，直接执行以下命令安装
# 增加 yum 源(如果默认 yum 源有，这一步可以忽略)yum install epel-release.noarch # 在 agent 节点执行yum install -y mysql-mmm-agent# 在 monitor 节点执行yum install -y mysql-mmm-monitor执行该安装命令，会安装以下软件包或依赖
mysql-mmm-agent.noarch 0:2.2.1-1.el5libart_lgpl.x86_64 0:2.3.17-4 mysql-mmm.noarch 0:2.2.1-1.el5 perl-Algorithm-Diff.noarch 0:1.1902-2.el5 perl-DBD-mysql.x86_64 0:4.008-1.rf perl-DateManip.noarch 0:5.44-1.2.1 perl-IPC-Shareable.noarch 0:0.60-3.el5 perl-Log-Dispatch.noarch 0:2.20-1.el5 perl-Log-Dispatch-FileRotate.noarch 0:1.16-1.el5 perl-Log-Log4perl.noarch 0:1.13-2.el5 perl-MIME-Lite.noarch 0:3.01-5.el5 perl-Mail-Sender.noarch 0:0.8.13-2.el5.1 perl-Mail-Sendmail.noarch 0:0.79-9.el5.1 perl-MailTools.noarch 0:1.77-1.el5 perl-Net-ARP.x86_64 0:1.0.6-2.1.el5 perl-Params-Validate.x86_64 0:0.88-3.el5 perl-Proc-Daemon.noarch 0:0.03-1.el5 perl-TimeDate.noarch 1:1.16-5.el5 perl-XML-DOM.noarch 0:1.44-2.el5 perl-XML-Parser.x86_64 0:2.34-6.1.2.2.1 perl-XML-RegExp.noarch 0:0.03-2.el5 rrdtool.x86_64 0:1.2.27-3.el5 rrdtool-perl.x86_64 0:1.2.27-3.el5 其他系统安装方式可以参考官网

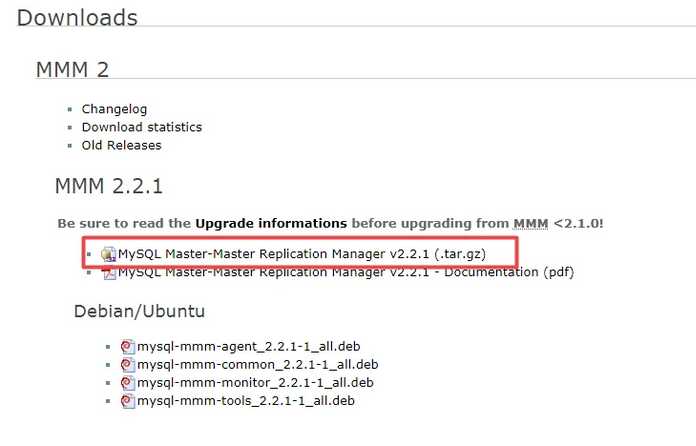

进入 MMM 下载页面 Downloads MMM for MySQL，点击下载，如图
下载完成上传到服务器上
yum install -y wget perl openssl gcc gcc-c++wget http://xrl.us/cpanm --no-check-certificatemv cpanm /usr/binchmod 755 /usr/bin/cpanmcat > /root/list << EOFinstall Algorithm::Diffinstall Class::Singletoninstall DBIinstall DBD::mysqlinstall File::Basenameinstall File::statinstall File::Tempinstall Log::Dispatchinstall Log::Log4perlinstall Mail::Sendinstall Net::ARPinstall Net::Pinginstall Proc::Daemoninstall Thread::Queueinstall Time::HiResEOF for package in `cat /root/list`do cpanm $packagedonetar -xvf mysql-mmm-2.2.1.tar.gzcd mysql-mmm-2.2.1make installps: 大部分时候，数据库机器都是不允许连接外网的，这个时候只能把上述依赖的 RPM 包一个个下载下来拷到服务器上
操作前已经准备好了一套主主从架构的数据库，搭建方法可以参考以往文章，具体信息如下
| IP | 系统 | 端口 | MySQL版本 | 节点 | 读写 | 说明 |
|---|---|---|---|---|---|---|
| 10.0.0.247 | Centos6.5 | 3306 | 5.7.9 | Master | 读写 | 主节点 |
| 10.0.0.248 | Centos6.5 | 3306 | 5.7.9 | Standby | 只读,可切换为读写 | 备主节点 |
| 10.0.0.249 | Centos6.5 | 3306 | 5.7.9 | Slave | 只读 | 从节点 |
| 10.0.0.24 | Centos6.5 | - | - | monitor | - | MMM Monitor |
| 简称 | VIP | 类型 |
|---|---|---|
| RW-VIP | 10.0.0.237 | 读写VIP |
| RO-VIP1 | 10.0.0.238 | 读VIP |
| RO-VIP2 | 10.0.0.239 | 读VIP |
Master1
[client]port = 3306default-character-set=utf8mb4socket = /data/mysql_db/test_mmm/mysql.sock[mysqld]datadir = /data/mysql_db/test_mmmbasedir = /usr/local/mysql57tmpdir = /tmpsocket = /data/mysql_db/test_mmm/mysql.sockpid-file = /data/mysql_db/test_mmm/mysql.pidskip-external-locking = 1skip-name-resolve = 1port = 3306server_id = 2473306default-storage-engine = InnoDBcharacter-set-server = utf8mb4default_password_lifetime=0auto_increment_offset = 1auto_increment_increment = 2#### log ####log_timestamps=systemlog_bin = /data/mysql_log/test_mmm/mysql-binlog_bin_index = /data/mysql_log/test_mmm/mysql-bin.indexbinlog_format = rowrelay_log_recovery=ONrelay_log=/data/mysql_log/test_mmm/mysql-relay-binrelay_log_index=/data/mysql_log/test_mmm/mysql-relay-bin.indexlog_error = /data/mysql_log/test_mmm/mysql-error.log#### replication ####log_slave_updates = 1replicate_wild_ignore_table = information_schema.%,performance_schema.%,sys.%#### semi sync replication settings #####plugin_dir=/usr/local/mysql57/lib/pluginplugin_load = "rpl_semi_sync_master=semisync_master.so;rpl_semi_sync_slave=semisync_slave.so"loose_rpl_semi_sync_master_enabled = 1loose_rpl_semi_sync_slave_enabled = 1Master2
[client]port = 3306default-character-set=utf8mb4socket = /data/mysql_db/test_mmm/mysql.sock[mysqld]datadir = /data/mysql_db/test_mmmbasedir = /usr/local/mysql57tmpdir = /tmpsocket = /data/mysql_db/test_mmm/mysql.sockpid-file = /data/mysql_db/test_mmm/mysql.pidskip-external-locking = 1skip-name-resolve = 1port = 3306server_id = 2483306default-storage-engine = InnoDBcharacter-set-server = utf8mb4default_password_lifetime=0auto_increment_offset = 2auto_increment_increment = 2#### log ####log_timestamps=systemlog_bin = /data/mysql_log/test_mmm/mysql-binlog_bin_index = /data/mysql_log/test_mmm/mysql-bin.indexbinlog_format = rowrelay_log_recovery=ONrelay_log=/data/mysql_log/test_mmm/mysql-relay-binrelay_log_index=/data/mysql_log/test_mmm/mysql-relay-bin.indexlog_error = /data/mysql_log/test_mmm/mysql-error.log#### replication ####log_slave_updates = 1replicate_wild_ignore_table = information_schema.%,performance_schema.%,sys.%#### semi sync replication settings #####plugin_dir=/usr/local/mysql57/lib/pluginplugin_load = "rpl_semi_sync_master=semisync_master.so;rpl_semi_sync_slave=semisync_slave.so"loose_rpl_semi_sync_master_enabled = 1loose_rpl_semi_sync_slave_enabled = 1Slave
[client]port = 3306default-character-set=utf8mb4socket = /data/mysql_db/test_mmm/mysql.sock[mysqld]datadir = /data/mysql_db/test_mmmbasedir = /usr/local/mysql57tmpdir = /tmpsocket = /data/mysql_db/test_mmm/mysql.sockpid-file = /data/mysql_db/test_mmm/mysql.pidskip-external-locking = 1skip-name-resolve = 1port = 3306server_id = 2493306default-storage-engine = InnoDBcharacter-set-server = utf8mb4default_password_lifetime=0read_only=1#### log ####log_timestamps=systemlog_bin = /data/mysql_log/test_mmm/mysql-binlog_bin_index = /data/mysql_log/test_mmm/mysql-bin.indexbinlog_format = rowrelay_log_recovery=ONrelay_log=/data/mysql_log/test_mmm/mysql-relay-binrelay_log_index=/data/mysql_log/test_mmm/mysql-relay-bin.indexlog_error = /data/mysql_log/test_mmm/mysql-error.log#### replication ####log_slave_updates = 1replicate_wild_ignore_table = information_schema.%,performance_schema.%,sys.%#### semi sync replication settings #####plugin_dir=/usr/local/mysql57/lib/pluginplugin_load = "rpl_semi_sync_master=semisync_master.so;rpl_semi_sync_slave=semisync_slave.so"loose_rpl_semi_sync_master_enabled = 1loose_rpl_semi_sync_slave_enabled = 1在主节点中执行下列建立 MMM 用户的命令，由于是测试环境，密码就设为和账号一样
CREATE USER ‘mmm_monitor‘@‘%‘ IDENTIFIED BY ‘mmm_monitor‘;CREATE USER ‘mmm_agent‘@‘%‘ IDENTIFIED BY ‘mmm_agent‘;GRANT REPLICATION CLIENT ON *.* TO ‘mmm_monitor‘@‘%‘;GRANT SUPER, REPLICATION CLIENT, PROCESS ON *.* TO ‘mmm_agent‘@‘%‘;FLUSH PRIVILEGES;MMM 有3个配置文件，分别是 mmm_agent.conf, mmm_common.conf, mmm_mon.conf, 在目录 /etc/mysql-mmm 下。如果区分集群，也就是说一台服务器跑多个 MMM，那么配置文件可以这样命名 mmm_agent_cluster.conf, mmm_common_cluster.conf, mmm_mon_cluster.conf, 其中 cluster 表示集群名称
mmm_common.conf , 通用配置，在所有 MMM 节点都需要mmm_agent.conf, agent 配置，在 MMM Agent 节点需要mmm_mon.conf, monitor 配置，在 MMM Monitor 节点需要这次配置，我们把集群名命名为 test_mmm, 下面是具体配置
在所有节点新建 /etc/mysql-mmm/mmm_common_test_mmm.conf, 根据实际情况写上
active_master_role writer<host default> cluster_interface eth0 # 群集的网络接口 agent_port 9989 # agent 监听端口，如果有多个 agent，需要更改默认端口 mysql_port 3306 # 数据库端口，默认为3306 pid_path /var/run/mysql-mmm/mmm_agentd_test_mmm.pid # pid路径, 要和启动文件对应 bin_path /usr/libexec/mysql-mmm # bin 文件路径 replication_user repl # 复制用户 replication_password repl # 复制用户密码 agent_user mmm_agent # 代理用户，用来设置 `read_only` 等 agent_password mmm_agent # 代理用户密码</host><host cluster01> # master1 的 host 名 ip 10.0.0.247 # master1 的 ip mode master # 角色属性，master 代表是主节点 peer cluster02 # 与 master1 对等的服务器的 host 名，双主中另一个的主机名</host><host cluster02> # master2 的 host 名 ip 10.0.0.248 # master2 的 ip mode master # 角色属性，master 代表是主节点 peer cluster01 # 与 master2 对等的服务器的 host 名，双主中另一个的主机名</host><host cluster03> # slave 的 host 名 ip 10.0.0.249 # slave 的 ip mode slave # 角色属性，slave 代表是从节点</host><role writer> # writer 角色配置 hosts cluster01, cluster02 # 能进行写操作的服务器的 host 名 ips 10.0.0.237 # writer 的 VIP mode exclusive # exclusive 代表只允许存在一个主节点(写节点)，也就是只能提供一个写的 VIP</role><role reader> # writer 角色配置 hosts cluster01, cluster02, cluster03 # 能进行读操作的服务器的 host 名 ips 10.0.0.238,10.0.0.239 # reader 的 VIP mode balanced # balanced 代表负载均衡可以多个 host 同时拥有此角色</role>在所有 agent 的节点新建 /etc/mysql-mmm/mmm_agent_test_mmm.conf 文件，写上以下内容
include mmm_common_test_mmm.conf # common 文件名，对应上述写下的文件this cluster01 # 当前节点名称，对应 common 文件 host 名include mmm_common_test_mmm.confthis cluster02include mmm_common_test_mmm.confthis cluster03在 monitor 节点新建 /etc/mysql-mmm/mmm_mon_test_mmm.conf 文件，写下监控节点配置
include mmm_common_test_mmm.conf # common 文件名<monitor> ip 127.0.0.1 # 监听 IP port 9992 # 监听端口 pid_path /var/run/mysql-mmm/mmm_mond_test_mmm.pid # PID 文件位置, 要和启动文件对应 bin_path /usr/libexec/mysql-mmm # bin目录 status_path /var/lib/mysql-mmm/mmm_mond_test_mmm.status # 状态文件位置 ping_ips 10.0.0.247, 10.0.0.248, 10.0.0.249 # 需要监控的主机 IP，对应 MySQL 节点 IP auto_set_online 30 # 自动恢复 online 的时间</monitor><host default> monitor_user mmm_monitor # 监控用的 MySQL 账号 monitor_password mmm_monitor # 监控用的 MySQL 密码</host><check mysql> check_period 2 # 监控周期 trap_period 4 # 一个节点被检测不成功的时间持续 trap_period 秒，就认为失去连接 max_backlog 900 # 主从延迟超过这个值就会设为 offline</check>debug 0 # 是否开启 debug 模式PS1: 以上配置文件在使用的时候需要去掉注释
PS2: 如果只有一个集群，可以在默认配置文件上改
安装成功后，会在 /etc/init.d/ 下生成配置启动文件
[root@chengqm ~]# ls /etc/init.d/mysql*/etc/init.d/mysqld /etc/init.d/mysql-mmm-agent /etc/init.d/mysql-mmm-monitor在所有 agent 节点执行
cp /etc/init.d/mysql-mmm-agent /etc/init.d/mysql-mmm-agent-test-mmm打开 /etc/init.d/mysql-mmm-agent-test-mmm, 如果你的配置文件头部是这样的
CLUSTER=‘‘#-----------------------------------------------------------------------# Pathsif [ "$CLUSTER" != "" ]; then MMM_AGENTD_BIN="/usr/sbin/mmm_agentd @$CLUSTER" MMM_AGENTD_PIDFILE="/var/run/mmm_agentd-$CLUSTER.pid"else MMM_AGENTD_BIN="/usr/sbin/mmm_agentd" MMM_AGENTD_PIDFILE="/var/run/mmm_agentd.pid"fiecho "Daemon bin: ‘$MMM_AGENTD_BIN‘"echo "Daemon pid: ‘$MMM_AGENTD_PIDFILE‘"改为
CLUSTER=‘test_mmm‘#-----------------------------------------------------------------------# Pathsif [ "$CLUSTER" != "" ]; then MMM_AGENTD_BIN="/usr/sbin/mmm_agentd @$CLUSTER" MMM_AGENTD_PIDFILE="/var/run/mysql-mmm/mmm_agentd_$CLUSTER.pid"else MMM_AGENTD_BIN="/usr/sbin/mmm_agentd" MMM_AGENTD_PIDFILE="/var/run/mysql-mmm/mmm_agentd.pid"fiecho "Daemon bin: ‘$MMM_AGENTD_BIN‘"echo "Daemon pid: ‘$MMM_AGENTD_PIDFILE‘"如果打开发现是这样的
MMMD_AGENT_BIN="/usr/sbin/mmm_agentd"MMMD_AGENT_PIDFILE="/var/run/mysql-mmm/mmm_agentd.pid"LOCKFILE=‘/var/lock/subsys/mysql-mmm-agent‘prog=‘MMM Agent Daemon‘改为
...CLUSTER=‘test_mmm‘MMMD_AGENT_BIN="/usr/sbin/mmm_agentd @$CLUSTER"MMMD_AGENT_PIDFILE="/var/run/mysql-mmm/mmm_agentd_$CLUSTER.pid"LOCKFILE=‘/var/lock/subsys/mysql-mmm-agent_CLUSTER$‘prog=‘MMM Agent Daemon‘在 monitor 节点执行
cp /etc/init.d/mysql-mmm-monitor /etc/init.d/mysql-mmm-monitor-test-mmm打开 /etc/init.d/mysql-mmm-monitor-test-mmm， 把文件开始部分改为
# Cluster name (it can be empty for default cases)CLUSTER=‘test_mmm‘LOCKFILE="/var/lock/subsys/mysql-mmm-monitor-${CLUSTER}"prog=‘MMM Monitor Daemon‘if [ "$CLUSTER" != "" ]; then MMMD_MON_BIN="/usr/sbin/mmm_mond @$CLUSTER" MMMD_MON_PIDFILE="/var/run/mysql-mmm/mmm_mond_$CLUSTER.pid"else MMMD_MON_BIN="/usr/sbin/mmm_mond" MMMD_MON_PIDFILE="/var/run/mysql-mmm/mmm_mond.pid"fistart() {...如果打开启动文件发现和本文的启动文件有出入，可以根据实际情况进行修改，确保启动 monitor 命令为 /usr/sbin/mmm_mond @$CLUSTER 且 pid 文件和配置文件一致即可
PS: 如果只有一个集群，可以直接使用默认启动文件
注意： 配置文件的 PID 文件位置要和启动文件的 PID 文件位置要一致，如果不一致就改为一致
启动 MMM 的顺序是
关闭 MMM 的顺序则反过来执行
在 monitor 节点上执行启动命令，示例如下
[root@chengqm ~]# /etc/init.d/mysql-mmm-monitor-test-mmm startStarting MMM Monitor Daemon: [ OK ]如果启动有报错查看 mmm 日志，mmm 日志放在 /var/log/mysql-mmm/ 目录下
在所有 agent 节点执行启动命令，示例如下
[root@cluster01 ~]# /etc/init.d/mysql-mmm-agent-test-mmm startDaemon bin: ‘/usr/sbin/mmm_agentd @test_mmm‘Daemon pid: ‘/var/run/mmm_agentd-test_mmm.pid‘Starting MMM Agent daemon... Ok在 monitor 节点执行 mmm_control @cluster show 命令查看各节点状态
[root@chengqm ~]# mmm_control @test_mmm show cluster01(10.0.0.247) master/ONLINE. Roles: reader(10.0.0.238), writer(10.0.0.237) cluster02(10.0.0.248) master/ONLINE. Roles: reader(10.0.0.239) cluster03(10.0.0.249) slave/ONLINE. Roles: 在 monitor 节点执行 mmm_control @cluster checks all 命令检测所有节点
[root@chengqm ~]# mmm_control @test_mmm checks allcluster01 ping [last change: 2018/12/05 20:06:35] OKcluster01 mysql [last change: 2018/12/05 20:23:59] OKcluster01 rep_threads [last change: 2018/12/05 20:24:14] OKcluster01 rep_backlog [last change: 2018/12/05 20:24:14] OK: Backlog is nullcluster02 ping [last change: 2018/12/05 20:06:35] OKcluster02 mysql [last change: 2018/12/05 20:23:59] OKcluster02 rep_threads [last change: 2018/12/05 20:24:14] OKcluster02 rep_backlog [last change: 2018/12/05 20:24:14] OKcluster03 ping [last change: 2018/12/05 20:06:35] OKcluster03 mysql [last change: 2018/12/05 20:23:59] OKcluster03 rep_threads [last change: 2018/12/05 20:24:14] OKcluster03 rep_backlog [last change: 2018/12/05 20:24:14] OK: Backlog is null在 Cluster1 主机查看 VIP 情况
[root@cluster01 ~]# ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether fa:16:3e:de:80:33 brd ff:ff:ff:ff:ff:ff inet 10.0.0.247/16 brd 10.0.255.255 scope global eth0 inet 10.0.0.238/32 scope global eth0 inet 10.0.0.237/32 scope global eth0 inet6 fe80::f816:3eff:fede:8033/64 scope link valid_lft forever preferred_lft forever可以看到 VIP 和 MMM 描述的一致
MMM 切换有两种方式，手动切换和自动切换
相关命令: mmm_control [@cluster] move_role [writer/reader] host 给某个节点增加角色
让我们测试一下
[root@chengqm ~]# mmm_control @test_mmm show cluster01(10.0.0.247) master/ONLINE. Roles: reader(10.0.0.238), writer(10.0.0.237) cluster02(10.0.0.248) master/ONLINE. Roles: reader(10.0.0.239) cluster03(10.0.0.249) slave/ONLINE. Roles: [mysql@cluster01 ~]$ ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether fa:16:3e:de:80:33 brd ff:ff:ff:ff:ff:ff inet 10.0.0.247/16 brd 10.0.255.255 scope global eth0 inet 10.0.0.238/32 scope global eth0 inet 10.0.0.237/32 scope global eth0 inet6 fe80::f816:3eff:fede:8033/64 scope link valid_lft forever preferred_lft forever[mysql@cluster01 ~]$ /usr/local/mysql57/bin/mysql -S /data/mysql_db/test_mmm/mysql.sock -e "show variables like ‘read_only‘";+---------------+-------+| Variable_name | Value |+---------------+-------+| read_only | OFF |+---------------+-------+[mysql@cluster02 ~]$ ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether fa:16:3e:66:7e:e8 brd ff:ff:ff:ff:ff:ff inet 10.0.0.248/16 brd 10.0.255.255 scope global eth0 inet 10.0.0.239/32 scope global eth0 inet6 fe80::f816:3eff:fe66:7ee8/64 scope link valid_lft forever preferred_lft forever[mysql@cluster02 ~]$ /usr/local/mysql57/bin/mysql -S /data/mysql_db/test_mmm/mysql.sock -e "show variables like ‘read_only‘";+---------------+-------+| Variable_name | Value |+---------------+-------+| read_only | ON |+---------------+-------+[mysql@cluster03 ~]$ /usr/local/mysql57/bin/mysql -S /data/mysql_db/test_mmm/mysql.sock -e "show slave status \G";*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 10.0.0.247 Master_User: repl Master_Port: 3306 Connect_Retry: 60.......执行 mmm_control @test_mmm move_role writer cluster02 切换
[root@chengqm ~]# mmm_control @test_mmm move_role writer cluster02OK: Role ‘writer‘ has been moved from ‘cluster01‘ to ‘cluster02‘. Now you can wait some time and check new roles info![root@chengqm ~]# mmm_control @test_mmm show cluster01(10.0.0.247) master/ONLINE. Roles: reader(10.0.0.238) cluster02(10.0.0.248) master/ONLINE. Roles: reader(10.0.0.239), writer(10.0.0.237) cluster03(10.0.0.249) slave/ONLINE. Roles: [mysql@cluster02 ~]$ ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether fa:16:3e:66:7e:e8 brd ff:ff:ff:ff:ff:ff inet 10.0.0.248/16 brd 10.0.255.255 scope global eth0 inet 10.0.0.239/32 scope global eth0 inet 10.0.0.237/32 scope global eth0 inet6 fe80::f816:3eff:fe66:7ee8/64 scope link valid_lft forever preferred_lft forever[mysql@cluster02 ~]$ /usr/local/mysql57/bin/mysql -S /data/mysql_db/test_mmm/mysql.sock -e "show variables like ‘read_only‘";+---------------+-------+| Variable_name | Value |+---------------+-------+| read_only | OFF |+---------------+-------+[mysql@cluster03 ~]$ /usr/local/mysql57/bin/mysql -S /data/mysql_db/test_mmm/mysql.sock -e "show slave status \G";*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 10.0.0.248 Master_User: repl Master_Port: 3306 Connect_Retry: 60可以看到切换成功
切换操作也可以用以下两个命令完成
mmm_control [@cluster] set_offline host 下线节点mmm_control [@cluster] set_online host 上线节点现在我们想把写节点从 Master2 切换到 Master1，可以进行如下操作
mmm_control @test_mmm set_offline cluster02mmm_control @test_mmm set_online cluster02切换后的效果是一样的，就不演示了
现在我们演示一下 Master2 数据库挂掉后自动切换情况
[root@chengqm ~]# tail -8 /var/log/mysql-mmm/mmm_mond_test_mmm.log 2018/12/06 18:09:27 WARN Check ‘rep_backlog‘ on ‘cluster02‘ is in unknown state! Message: UNKNOWN: Connect error (host = 10.0.0.248:3306, user = mmm_monitor)! Lost connection to MySQL server at ‘reading initial communication packet‘, system error: 1112018/12/06 18:09:30 ERROR Check ‘mysql‘ on ‘cluster02‘ has failed for 4 seconds! Message: ERROR: Connect error (host = 10.0.0.248:3306, user = mmm_monitor)! Lost connection to MySQL server at ‘reading initial communication packet‘, system error: 1112018/12/06 18:09:31 FATAL State of host ‘cluster02‘ changed from ONLINE to HARD_OFFLINE (ping: OK, mysql: not OK)2018/12/06 18:09:31 INFO Removing all roles from host ‘cluster02‘:2018/12/06 18:09:31 INFO Removed role ‘reader(10.0.0.238)‘ from host ‘cluster02‘2018/12/06 18:09:31 INFO Removed role ‘writer(10.0.0.237)‘ from host ‘cluster02‘2018/12/06 18:09:31 INFO Orphaned role ‘writer(10.0.0.237)‘ has been assigned to ‘cluster01‘2018/12/06 18:09:31 INFO Orphaned role ‘reader(10.0.0.238)‘ has been assigned to ‘cluster01‘[root@chengqm ~]# mmm_control @test_mmm show cluster01(10.0.0.247) master/ONLINE. Roles: reader(10.0.0.238), reader(10.0.0.239), writer(10.0.0.237) cluster02(10.0.0.248) master/HARD_OFFLINE. Roles: cluster03(10.0.0.249) slave/ONLINE. Roles: [mysql@cluster01 ~]$ ip addr1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether fa:16:3e:de:80:33 brd ff:ff:ff:ff:ff:ff inet 10.0.0.247/16 brd 10.0.255.255 scope global eth0 inet 10.0.0.238/32 scope global eth0 inet 10.0.0.237/32 scope global eth0 inet6 fe80::f816:3eff:fede:8033/64 scope link valid_lft forever preferred_lft forever[mysql@cluster03 ~]$ /usr/local/mysql57/bin/mysql -S /data/mysql_db/test_mmm/mysql.sock -e "show slave status \G";*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 10.0.0.247 Master_User: repl Master_Port: 3306 Connect_Retry: 60可以看到数据库宕机后, MMM 会自动切换, 从而实现高可用
笔者在实际使用过程中发现:
到此, MMM 高可用架构搭建完毕
FATAL Configuration file /etc/mysql-mmm/mmm_agent*.conf is world writable!FATAL Configuration file /etc/mysql-mmm/mmm_agent*.conf is world readable!chmod 664 /etc/mysql-mmm/*这个问题容易出现在多个 MMM 监控实例的情况下, 报错如下
FATAL Listener: Can’t create socket!FATAL Couldn’t configure IP ‘192.168.1.202’ on interface ‘em1’: undefifconfig 命令查看网卡，更改配置文件
参考: mmm 官方文档
