主播通过 obs软件通过直播 -》推流到-》直播服务器客户通过浏览器 访问站点-》flv.js拉取直播服务器视频流并播放centos7
直播服务器
https://github.com/gwuhaolin/livego OBS
录屏客户端软件flv.js
https://github.com/Bilibili/flv.js/播放站点
nginx站点安装golang开发环境git下载livego代码go build编译成执行文件livego运行 ./livego
[root@localhost livego]# ./livego 2020/01/28 19:53:13 main.go:118: start livego, version master2020/01/28 19:53:13 liveconfig.go:35: starting load configure file(.livego.json)......2020/01/28 19:53:13 liveconfig.go:42: loadconfig: { "server": [ { "appname": "live", "liveon": "on", "hlson": "on" } ]}2020/01/28 19:53:13 liveconfig.go:49: get config json data:{[{live on on []}]}2020/01/28 19:53:13 main.go:62: hls server enable....2020/01/28 19:53:13 main.go:70: RTMP Listen On :19352020/01/28 19:53:13 main.go:105: HTTP-Operation listen On :80902020/01/28 19:53:13 main.go:43: HLS listen On :70022020/01/28 19:53:13 main.go:87: HTTP-FLV listen On :7001视频推送地址

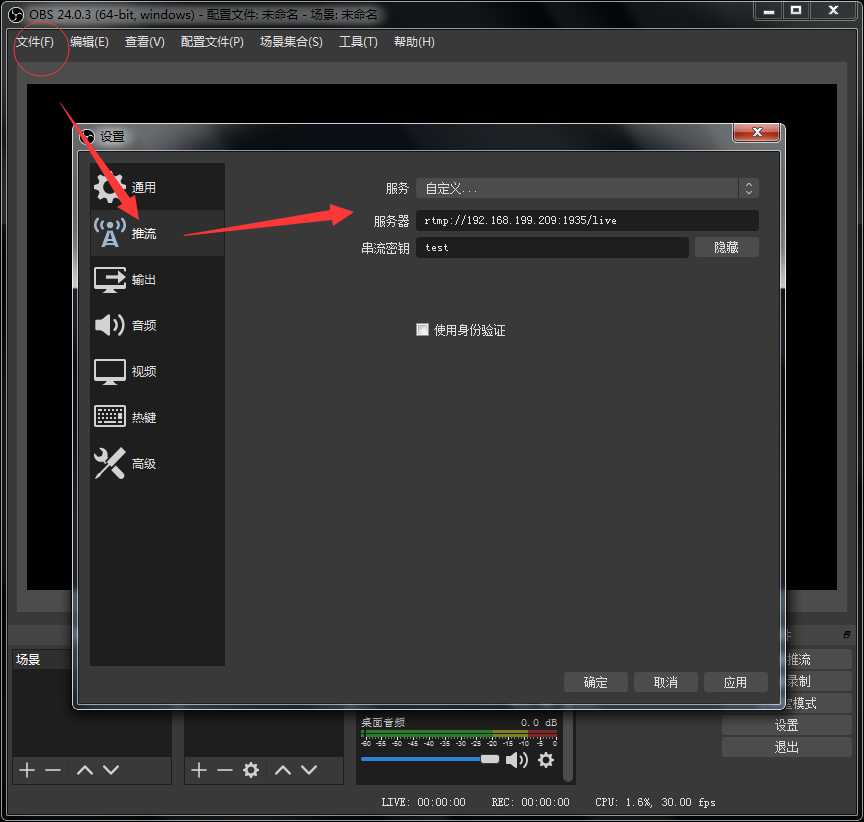

rtmp://192.168.199.209:1935/live配置

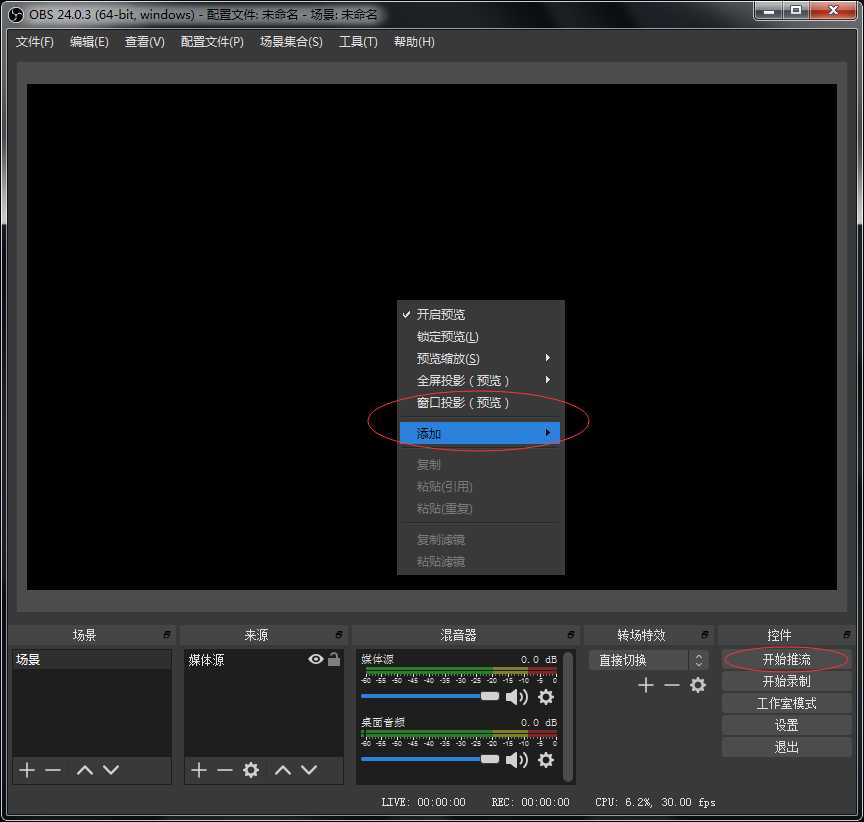

添加视频源和推送
flv.js编译flv.min.js
git下载代码库切换到代码目录npm install # install dev-dependencesnpm install -g gulp # install build toolgulp release # packaged & minimized js will be emitted in dist foldernpm慢的解决（数据源网站太慢，可以使用淘宝提供的npm数据源）
npm install -gd express --registry=http://registry.npm.taobao.orgnpm config set registry http://registry.npm.taobao.orgnpm install cnpm -g播放页面代码 index.html
<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>课程直播</title></head><body> <script src="flv.min.js"></script> <video id="videoElement"></video> <script> if (flvjs.isSupported()) { var videoElement = document.getElementById('videoElement'); var flvPlayer = flvjs.createPlayer({ type: 'flv', isLive: true, url: 'http://192.168.199.209:7001/live/test.flv' }); flvPlayer.attachMediaElement(videoElement); flvPlayer.load(); flvPlayer.play(); } </script></body></html>
