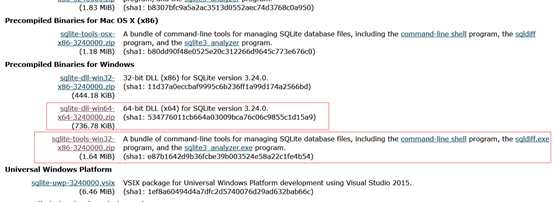

首先从https://www.sqlite.org/download.html下载

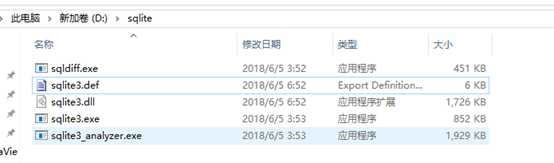

下载完成后，将文件全部解压到D:\sqlite

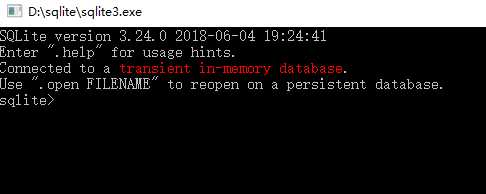

运行sqlite3.exe查看是否正常

下载可视化工具 https://github.com/sqlitebrowser/sqlitebrowser/releases

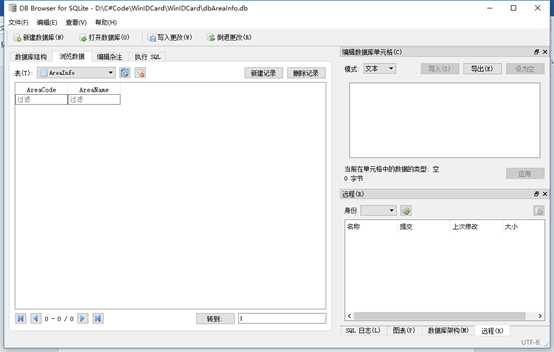

利用可视化工具创建表结构

准备工作完成，接下来就是C#操作SQLite

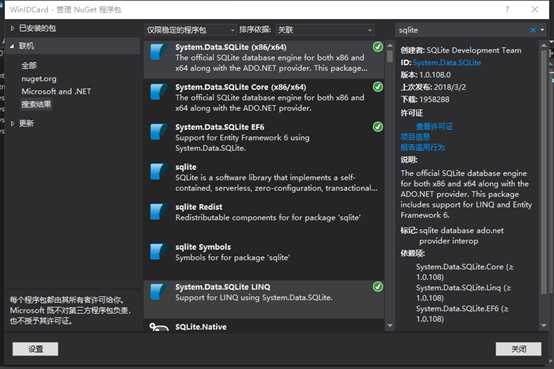

在NuGet包管理工具中添加所需的dll

在config文件中配置数据库连接字符串

 <connectionStrings> <add name="sqliteConn" connectionString="Data Source=..\..\dataBase\dbAreaInfo.db;Pooling=true;FailIfMissing=false" providerName="System.Data.SQLite" /> </connectionStrings>

接下来是一个简单的SQLiteHelper

 1 public class SQLiteHelper 2  { 3 private static string connString = System.Configuration.ConfigurationManager.ConnectionStrings["sqliteConn"].ToString(); 4 private static SQLiteConnection conn; 5  6 static SQLiteHelper() 7  { 8 conn = new SQLiteConnection(connString); 9  }10 11 12 /// <summary>13 /// 查询数据,返回DataSet14 /// </summary>15 /// <param name="sql"></param>16 /// <returns></returns>17 public static DataSet QuerySql(string sql)18  {19 DataSet ds = new DataSet();20 try21  {22 using (SQLiteDataAdapter adapter = new SQLiteDataAdapter(sql, conn))23  {24  conn.Open();25  adapter.Fill(ds);26  conn.Close();27  }28  }29 catch { }30 return ds;31  }32 33 /// <summary>34 /// 执行单条SQL语句35 /// </summary>36 /// <param name="sql"></param>37 /// <returns></returns>38 public static bool ExecuteSql(string sql)39  {40 bool result = false;41 try42  {43 using (SQLiteCommand cmd = new SQLiteCommand(conn))44  {45  conn.Open();46 cmd.CommandText = sql;47 result = cmd.ExecuteNonQuery() > 0;48  conn.Close();49  }50  }51 catch { }52 return result;53  }54 55 /// <summary>56 /// 事务执行多条SQL语句57 /// </summary>58 /// <param name="lstSql"></param>59 /// <returns></returns>60 public static bool ExecuteSql(List<string> lstSql)61  {62 bool result = false;63 try64  {65 using (SQLiteCommand cmd = new SQLiteCommand(conn))66  {67  conn.Open();68 DbTransaction trans = conn.BeginTransaction();69 foreach (var sql in lstSql)70  {71 cmd.CommandText = sql;72  cmd.ExecuteNonQuery();73  }74  trans.Commit();75 result = true;76  conn.Close();77  }78  }79 catch { }80 return result;81  }82 }

两个简单的调用例子

查询

 1 /// <summary> 2 /// 获取区域名称 3 /// </summary> 4 /// <param name="areaCode">区域编号</param> 5 /// <returns></returns> 6 public string GetAreaName(string areaCode) 7  { 8 string result = string.Empty; ; 9 string sql = "select AreaName from AreaInfo where AreaCode=‘" + areaCode + "‘";10 DataSet ds = SQLiteHelper.QuerySql(sql);11 if (ds != null && ds.Tables.Count > 0 && ds.Tables[0].Rows.Count == 1)12  {13 result = ds.Tables[0].Rows[0]["AreaName"].ToString();14  }15 return result;16 }

删除和新增

 1 public void InsertAreaSource() 2  { 3 string sql = "delete from AreaInfo"; 4  SQLiteHelper.ExecuteSql(sql); 5  6 AreaInfo areaInfo = new AreaInfo(); 7 List<Area> lstArea = areaInfo.GetAreaInfoFromWeb(); 8 List<string> lstSql = new List<string>(); 9 foreach (Area item in lstArea)10  {11 sql = "INSERT INTO AreaInfo(AreaCode,AreaName) VALUES(‘" + item.AreaCode + "‘,‘" + item.AreaName + "‘)";12  lstSql.Add(sql);13  }14  SQLiteHelper.ExecuteSql(lstSql);15 }
