C#/VB.NET设置Word表格边框

概述

文本讲述通过C#和VB.NET程序代码给Word中的表格设置边框的方法,可分为给Table表格设置边框、给表格中的指定Cell设置边框,设置边框时,可设置边框颜色、边框类型、边框线条样式、边框线条粗细等等。

工具导入

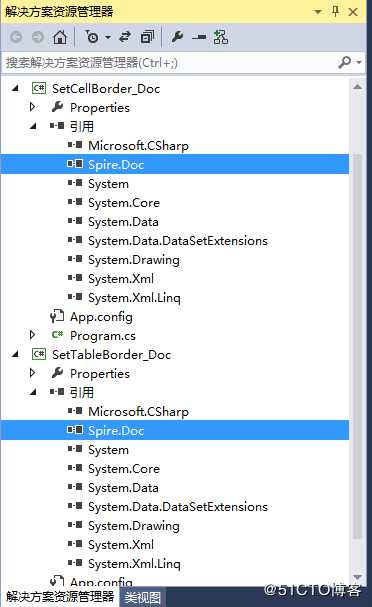

编辑代码前,先下载需要的Word类库工具,本文中使用的是Spire的免费版库Free Spire.Doc for .NET。下载后,需要解压安装。在VS程序中将安装路径下Bin文件下的Spire.Doc.dll文件添加引用到“解决方案资源管理器”,如下添加引用结果:
C#/VB.NET设置Word表格边框

代码示例

1. 设置Table边框
[C#]

using Spire.Doc;using System.Drawing;namespace SetTableBorder_Doc{ class Program { static void Main(string[] args) { //加载Word文档 Document doc = new Document(); doc.LoadFromFile("test.docx"); //获取Section Section section = doc.Sections[0]; //获取第一个表格 Table table = section.Tables[0] as Table; //设置上边框 table.TableFormat.Borders.Top.BorderType = Spire.Doc.Documents.BorderStyle.DotDash; table.TableFormat.Borders.Top.LineWidth = 2.0F; table.TableFormat.Borders.Top.Color = Color.Red; //设置右边框 table.TableFormat.Borders.Right.BorderType = Spire.Doc.Documents.BorderStyle.Double; table.TableFormat.Borders.Right.LineWidth = 2.0F; table.TableFormat.Borders.Right.Color = Color.Green; //设置下边框 table.TableFormat.Borders.Bottom.BorderType = Spire.Doc.Documents.BorderStyle.None; //设置左边框 table.TableFormat.Borders.Left.BorderType = Spire.Doc.Documents.BorderStyle.Hairline; table.TableFormat.Borders.Left.LineWidth = 2.0F; table.TableFormat.Borders.Left.Color = Color.Blue; //设置垂直边框 table.TableFormat.Borders.Vertical.BorderType = Spire.Doc.Documents.BorderStyle.Dot; table.TableFormat.Borders.Vertical.LineWidth = 2.0F; table.TableFormat.Borders.Vertical.Color = Color.Orange; //设置水平边框 table.TableFormat.Borders.Horizontal.BorderType = Spire.Doc.Documents.BorderStyle.Wave; table.TableFormat.Borders.Horizontal.LineWidth = 2.0F; table.TableFormat.Borders.Horizontal.Color = Color.Purple; //保存文档 doc.SaveToFile("SetTableBorder.docx",FileFormat.Docx2013); System.Diagnostics.Process.Start("SetTableBorder.docx"); } }}

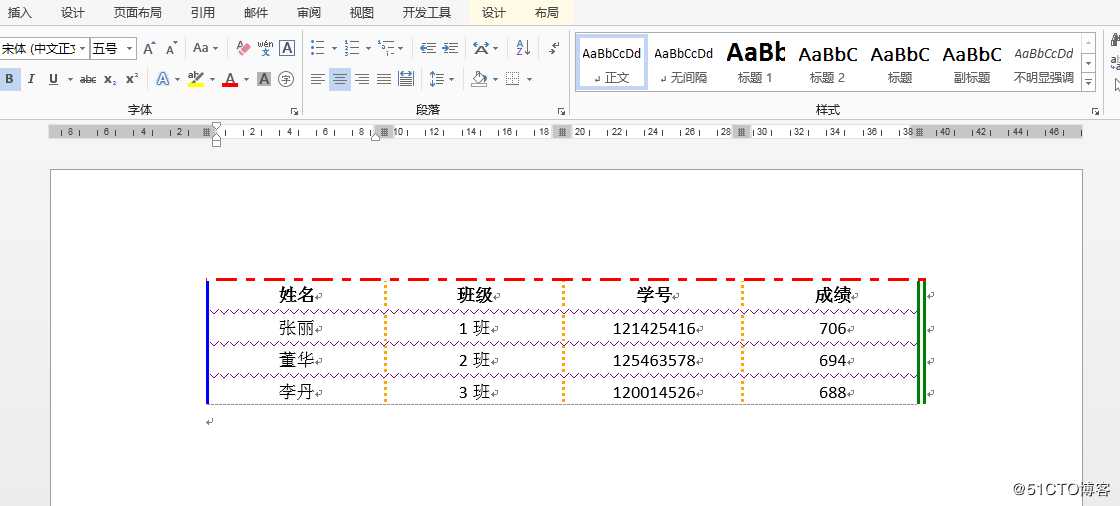

表格边框设置结果:
C#/VB.NET设置Word表格边框
[VB.NET]

Imports Spire.DocImports System.DrawingNamespace SetTableBorder_Doc Class Program Private Shared Sub Main(args As String()) ‘加载Word文档 Dim doc As New Document() doc.LoadFromFile("test.docx") ‘获取Section Dim section As Section = doc.Sections(0) ‘获取第一个表格 Dim table As Table = TryCast(section.Tables(0), Table) ‘设置上边框 table.TableFormat.Borders.Top.BorderType = Spire.Doc.Documents.BorderStyle.DotDash table.TableFormat.Borders.Top.LineWidth = 2F table.TableFormat.Borders.Top.Color = Color.Red ‘设置右边框 table.TableFormat.Borders.Right.BorderType = Spire.Doc.Documents.BorderStyle.[Double] table.TableFormat.Borders.Right.LineWidth = 2F table.TableFormat.Borders.Right.Color = Color.Green ‘设置下边框 table.TableFormat.Borders.Bottom.BorderType = Spire.Doc.Documents.BorderStyle.None ‘设置左边框 table.TableFormat.Borders.Left.BorderType = Spire.Doc.Documents.BorderStyle.Hairline table.TableFormat.Borders.Left.LineWidth = 2F table.TableFormat.Borders.Left.Color = Color.Blue ‘设置垂直边框 table.TableFormat.Borders.Vertical.BorderType = Spire.Doc.Documents.BorderStyle.Dot table.TableFormat.Borders.Vertical.LineWidth = 2F table.TableFormat.Borders.Vertical.Color = Color.Orange ‘设置水平边框 table.TableFormat.Borders.Horizontal.BorderType = Spire.Doc.Documents.BorderStyle.Wave table.TableFormat.Borders.Horizontal.LineWidth = 2F table.TableFormat.Borders.Horizontal.Color = Color.Purple ‘保存文档 doc.SaveToFile("SetTableBorder.docx", FileFormat.Docx2013) System.Diagnostics.Process.Start("SetTableBorder.docx") End Sub End ClassEnd Namespace

2. 设置Cell边框
[C#]

using Spire.Doc;using System.Drawing;namespace SetCellBorder_Doc{ class Program { static void Main(string[] args) { //加载Word文档 Document doc = new Document(); doc.LoadFromFile("test.docx"); //获取Section Section section = doc.Sections[0]; //获取第一个表格 Table table = section.Tables[0] as Table; //获取单元格,设置上、下边框 TableCell cell1 = table[0, 0]; cell1.CellFormat.Borders.Top.BorderType = Spire.Doc.Documents.BorderStyle.Single; cell1.CellFormat.Borders.Top.LineWidth = 2.0F; cell1.CellFormat.Borders.Top.Color = Color.Red; cell1.CellFormat.Borders.Bottom.BorderType = Spire.Doc.Documents.BorderStyle.DashDotStroker; cell1.CellFormat.Borders.Bottom.LineWidth = 2.0F; cell1.CellFormat.Borders.Bottom.Color = Color.Pink; //获取单元格,设置左、右边框 TableCell cell2 = table[2, 2]; cell2.CellFormat.Borders.Left.BorderType = Spire.Doc.Documents.BorderStyle.Hairline; cell2.CellFormat.Borders.Left.LineWidth = 2.0F; cell2.CellFormat.Borders.Left.Color = Color.Yellow; cell2.CellFormat.Borders.Right.BorderType = Spire.Doc.Documents.BorderStyle.Double; cell2.CellFormat.Borders.Right.LineWidth = 2.0F; cell2.CellFormat.Borders.Right.Color = Color.HotPink; //保存文档 doc.SaveToFile("SetCellBorder.docx",FileFormat.Docx2013); System.Diagnostics.Process.Start("SetCellBorder.docx"); } }}

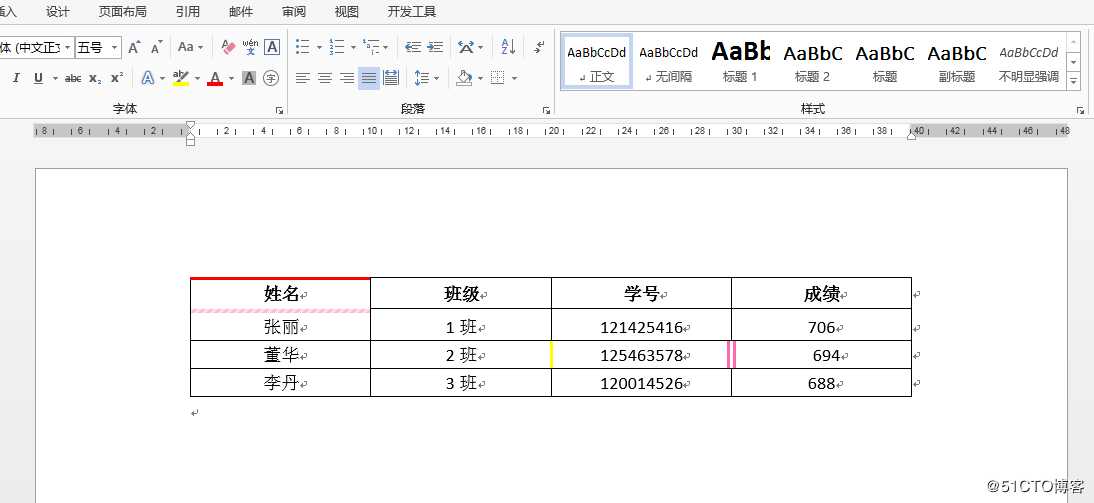

单元格边框设置结果:
C#/VB.NET设置Word表格边框
[VB.NET]

Imports Spire.DocImports System.DrawingNamespace SetCellBorder_Doc Class Program Private Shared Sub Main(args As String()) ‘加载Word文档 Dim doc As New Document() doc.LoadFromFile("test.docx") ‘获取Section Dim section As Section = doc.Sections(0) ‘获取第一个表格 Dim table As Table = TryCast(section.Tables(0), Table) ‘获取单元格,设置上、下边框 Dim cell1 As TableCell = table(0, 0) cell1.CellFormat.Borders.Top.BorderType = Spire.Doc.Documents.BorderStyle.[Single] cell1.CellFormat.Borders.Top.LineWidth = 2F cell1.CellFormat.Borders.Top.Color = Color.Red cell1.CellFormat.Borders.Bottom.BorderType = Spire.Doc.Documents.BorderStyle.DashDotStroker cell1.CellFormat.Borders.Bottom.LineWidth = 2F cell1.CellFormat.Borders.Bottom.Color = Color.Pink ‘获取单元格,设置左、右边框 Dim cell2 As TableCell = table(2, 2) cell2.CellFormat.Borders.Left.BorderType = Spire.Doc.Documents.BorderStyle.Hairline cell2.CellFormat.Borders.Left.LineWidth = 2F cell2.CellFormat.Borders.Left.Color = Color.Yellow cell2.CellFormat.Borders.Right.BorderType = Spire.Doc.Documents.BorderStyle.[Double] cell2.CellFormat.Borders.Right.LineWidth = 2F cell2.CellFormat.Borders.Right.Color = Color.HotPink ‘保存文档 doc.SaveToFile("SetCellBorder.docx", FileFormat.Docx2013) System.Diagnostics.Process.Start("SetCellBorder.docx") End Sub End ClassEnd Namespace
