一、SparkSQL介绍

 1、概述： sparkSQL是spark用来处理结构化数据的一个模块。 sparkSQL提供了一个编程的抽象叫做DataFrame并且作为我们分布式SQL的查询引擎 2、作用：用来处理结构化数据，先将非结构化的数据转成结构化数据。 3、SparkSQL提供了两种编程模型： 1）SQL的方式 select * from user; 2）DataFrame方式(DSL) HQL:将SQL转换为mr任务 SparkSQL:将SQL转换为RDD，效率快 4、特点： 1）容易整合 spark 2）统一数据的访问方式 3）标准的数据连接 支持JDBC/ODBC，可以对接BI工具 4）兼容HIVE

二、DataFrame介绍

 与RDD类似，DataFrame也是一个分布式数据容器。 SparkSQL属于SQL解析引擎。在spark,将SQL解析RDD。注意：这个RDD比较特殊，是带有schema信息的RDD。 这个RDD就叫DataFrame。 DataFrame像数据库的二维表格（有行有列表描述），它除了数据之外还记录了数据的结构信息（schema）。 与RDD区别： DataFrame:存放了结构化数据的描述信息 RDD：存储文本数据、二进制、音频、视频...

三、SQL风格

1、SqlTest1

import org.apache.spark.rdd.RDDimport org.apache.spark.sql.types.{IntegerType, StringType, StructField, StructType}import org.apache.spark.sql.{DataFrame, Row, SparkSession}/** * spark2.x * SQL风格 */object SqlTest1 { def main(args: Array[String]): Unit = { //1.构建SparkSession val sparkSession = SparkSession.builder().appName("SqlTest1") .master("local[2]") .getOrCreate() //2.创建RDD val dataRdd: RDD[String] = sparkSession.sparkContext .textFile("hdfs://192.168.146.111:9000/user.txt") //3.切分数据 val splitRdd: RDD[Array[String]] = dataRdd.map(_.split("\t")) //4.封装数据 val rowRdd = splitRdd.map(x => { val id = x(0).toInt val name = x(1).toString val age = x(2).toInt //封装一行数据 Row(id, name, age) }) //5.创建schema（描述DataFrame信息） sql=表 val schema: StructType = StructType(List( StructField("id", IntegerType, true), StructField("name", StringType, true), StructField("age", IntegerType, true) )) //6.创建DataFrame val userDF: DataFrame = sparkSession.createDataFrame(rowRdd, schema) //7.注册表 userDF.registerTempTable("user_t") //8.写sql val uSql: DataFrame = sparkSession.sql("select * from user_t order by age") //9.查看结果 show databases; uSql.show() //10.释放资源 sparkSession.stop() }}

 2、user.txt

1 zhangsan 182 lisi 233 tom 264 mary 165 zhangsanfeng 128

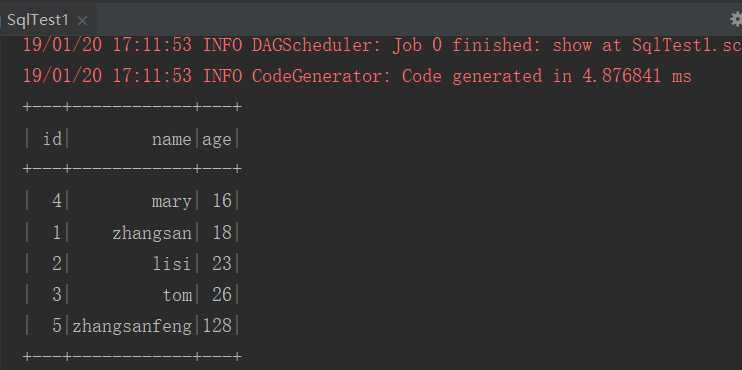

3、结果

四、toDF使用

scala> val rdd = sc.textFile("hdfs://192.168.146.111:9000/user.txt").map(_.split("\t"))rdd: org.apache.spark.rdd.RDD[Array[String]] = MapPartitionsRDD[2] at map at <console>:24scala> case class User(id:Int,name:String,age:Int)defined class Userscala> val userRdd = rdd.map(x => User(x(0).toInt,x(1),x(2).toInt))userRdd: org.apache.spark.rdd.RDD[User] = MapPartitionsRDD[4] at map at <console>:28scala> val udf = userRdd.toDFudf: org.apache.spark.sql.DataFrame = [id: int, name: string ... 1 more field]scala> udf.show()+---+------------+---+| id| name|age|+---+------------+---+| 1| zhangsan| 18|| 2| lisi| 23|| 3| tom| 26|| 4| mary| 16|| 5|zhangsanfeng|128|+---+------------+---+scala> udf.select("name","age").show()+------------+---+| name|age|+------------+---+| zhangsan| 18|| lisi| 23|| tom| 26|| mary| 16||zhangsanfeng|128|+------------+---+scala> udf.filter(col("id") <= 3).show()+---+--------+---+| id| name|age|+---+--------+---+| 1|zhangsan| 18|| 2| lisi| 23|| 3| tom| 26|+---+--------+---+scala> udf.filter(col("id") > 3).show()+---+------------+---+| id| name|age|+---+------------+---+| 4| mary| 16|| 5|zhangsanfeng|128|+---+------------+---+scala> udf.groupBy(("name")).count.show()+------------+-----+ | name|count|+------------+-----+|zhangsanfeng| 1|| mary| 1|| zhangsan| 1|| tom| 1|| lisi| 1|+------------+-----+scala> udf.sort("age").show()+---+------------+---+| id| name|age|+---+------------+---+| 4| mary| 16|| 1| zhangsan| 18|| 2| lisi| 23|| 3| tom| 26|| 5|zhangsanfeng|128|+---+------------+---+scala> udf.orderBy("age").show()+---+------------+---+| id| name|age|+---+------------+---+| 4| mary| 16|| 1| zhangsan| 18|| 2| lisi| 23|| 3| tom| 26|| 5|zhangsanfeng|128|+---+------------+---+scala> udf.registerTempTable("user_t")warning: there was one deprecation warning; re-run with -deprecation for detailsscala> spark.sqlContext.sql("select * from user_t").show()+---+------------+---+| id| name|age|+---+------------+---+| 1| zhangsan| 18|| 2| lisi| 23|| 3| tom| 26|| 4| mary| 16|| 5|zhangsanfeng|128|+---+------------+---+scala> spark.sqlContext.sql("select name,age from user_t where age>18").show()+------------+---+| name|age|+------------+---+| lisi| 23|| tom| 26||zhangsanfeng|128|+------------+---+scala>

五、DSL风格

import org.apache.spark.rdd.RDDimport org.apache.spark.sql.types.{IntegerType, StringType, StructField, StructType}import org.apache.spark.sql.{DataFrame, Dataset, Row, SparkSession}/** * DSL风格 */object SqlTest2 { def main(args: Array[String]): Unit = { //1.创建sparkSession val sparkSession: SparkSession = SparkSession.builder() .appName("SqlTest2") .master("local[2]") .getOrCreate() //2.创建rdd val dataRDD: RDD[String] = sparkSession.sparkContext .textFile("hdfs://192.168.146.111:9000/user.txt") //3.切分数据 val splitRDD: RDD[Array[String]] = dataRDD.map(_.split("\t")) val rowRDD: RDD[Row] = splitRDD.map(x => { val id = x(0).toInt val name = x(1).toString val age = x(2).toInt //Row代表一行数据 Row(id, name, age) }) val schema: StructType = StructType(List( //结构字段 StructField("id", IntegerType, true), StructField("name", StringType, true), StructField("age", IntegerType, true) )) //4.rdd转换为dataFrame val userDF: DataFrame = sparkSession.createDataFrame(rowRDD, schema) //5.DSL风格 查询年龄大于18 rdd dataFrame dataSet import sparkSession.implicits._ val user1DF: Dataset[Row] = userDF.where($"age" > 18) user1DF.show() //6.关闭资源 sparkSession.stop() }}

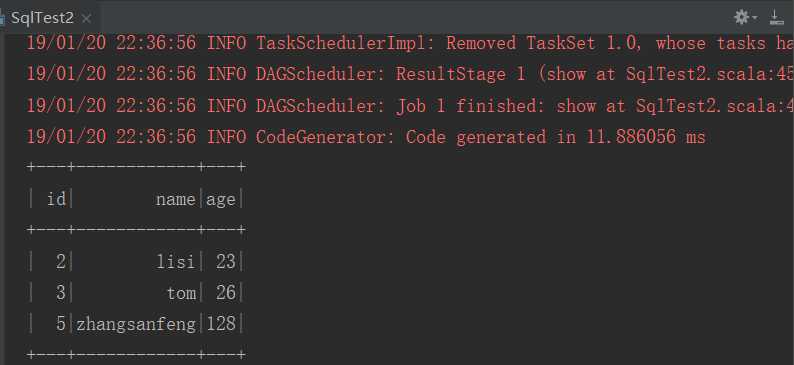

结果：

六、WordCount

1、SqlWordCount

import org.apache.spark.sql.{DataFrame, Dataset, SparkSession}object SqlWordCount { def main(args: Array[String]): Unit = { //1.创建SparkSession val sparkSession: SparkSession = SparkSession.builder() .appName("SqlWordCount") .master("local[2]") .getOrCreate() //2.加载数据 使用dataSet处理数据 dataSet是一个更加智能的rdd，默认有一列叫value val datas: Dataset[String] = sparkSession.read .textFile("hdfs://192.168.146.111:9000/words.txt") //3.sparkSql 注册表/注册视图 rdd.flatMap import sparkSession.implicits._ val word: Dataset[String] = datas.flatMap(_.split("\t")) //4.注册视图 word.createTempView("wc_t") //5.执行sql wordCount val r: DataFrame = sparkSession .sql("select value as word,count(*) sum from wc_t group by value order by sum desc") r.show() sparkSession.stop() }}

2、words.txt

hello worldhello Chinahello Beijinghaha heihei

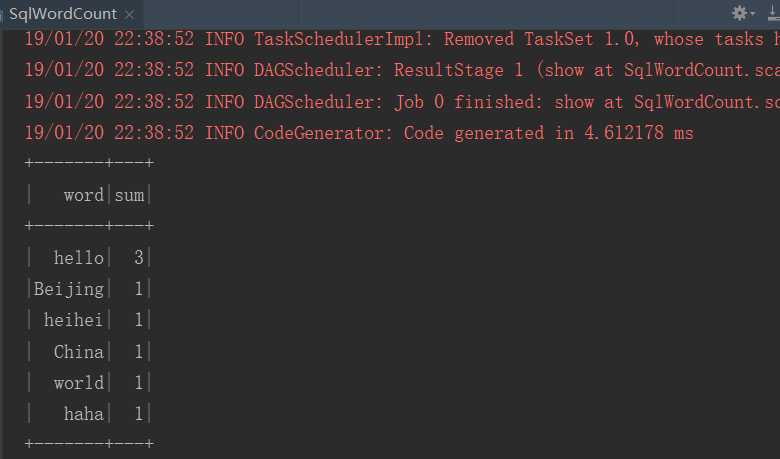

3、结果

七、Join操作

1、JoinDemo

import org.apache.spark.sql.{DataFrame, Dataset, SparkSession}/** * SQL方式 */object JoinDemo { def main(args: Array[String]): Unit = { //1.创建SparkSession val sparkSession: SparkSession = SparkSession.builder().appName("JoinDemo") .master("local[2]").getOrCreate() import sparkSession.implicits._ //2.直接创建dataSet val datas1: Dataset[String] = sparkSession .createDataset(List("1 Tom 18", "2 John 22", "3 Mary 16")) //3.整理数据 val dataDS1: Dataset[(Int, String, Int)] = datas1.map(x => { val fields: Array[String] = x.split(" ") val id = fields(0).toInt val name = fields(1).toString val age = fields(2).toInt //元组输出 (id, name, age) }) val dataDF1: DataFrame = dataDS1.toDF("id", "name", "age") //2.创建第二份数据 val datas2: Dataset[String] = sparkSession .createDataset(List("18 young", "22 old")) val dataDS2: Dataset[(Int, String)] = datas2.map(x => { val fields: Array[String] = x.split(" ") val age = fields(0).toInt val desc = fields(1).toString //元组输出 (age, desc) }) //3.转化为dataFrame val dataDF2: DataFrame = dataDS2.toDF("dage", "desc") //4.注册视图 dataDF1.createTempView("d1_t") dataDF2.createTempView("d2_t") //5.写sql（join） val r = sparkSession.sql("select name,desc from d1_t join d2_t on age = dage") //6.触发任务 r.show() //7.关闭资源 sparkSession.stop() }}

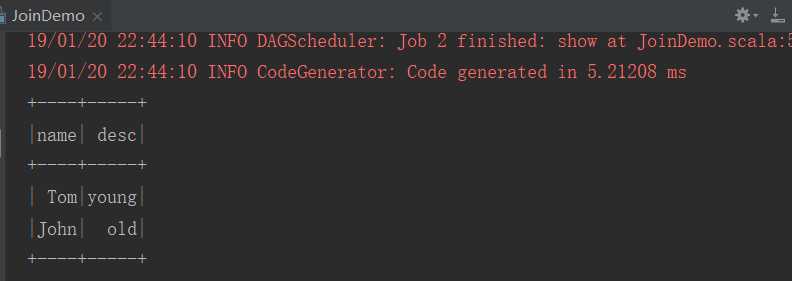

2、结果

3、JoinDemo1

import org.apache.spark.sql.{DataFrame, Dataset, SparkSession}object JoinDemo1 { def main(args: Array[String]): Unit = { //1.创建SparkSession val sparkSession: SparkSession = SparkSession.builder() .appName("JoinDemo1") .master("local[2]").getOrCreate() import sparkSession.implicits._ //2.直接创建dataSet val datas1: Dataset[String] = sparkSession .createDataset(List("1 Tom 18", "2 John 22", "3 Mary 16")) //3.整理数据 val dataDS1: Dataset[(Int, String, Int)] = datas1.map(x => { val fields: Array[String] = x.split(" ") val id = fields(0).toInt val name = fields(1).toString val age = fields(2).toInt //元组输出 (id, name, age) }) val dataDF1: DataFrame = dataDS1.toDF("id", "name", "age") //2.创建第二份数据 val datas2: Dataset[String] = sparkSession .createDataset(List("18 young", "22 old")) val dataDS2: Dataset[(Int, String)] = datas2.map(x => { val fields: Array[String] = x.split(" ") val age = fields(0).toInt val desc = fields(1).toString //元组输出 (age, desc) }) //3.转化为dataFrame val dataDF2: DataFrame = dataDS2.toDF("dage", "desc") //默认方式 inner join //val r: DataFrame = dataDF1.join(dataDF2, $"age" === $"dage") //val r: DataFrame = dataDF1.join(dataDF2, $"age" === $"dage", "left") //val r: DataFrame = dataDF1.join(dataDF2, $"age" === $"dage", "right") //val r: DataFrame = dataDF1.join(dataDF2, $"age" === $"dage", "left_outer") val r: DataFrame = dataDF1.join(dataDF2, $"age" === $"dage", "cross") r.show() //7.关闭资源 sparkSession.stop() }}

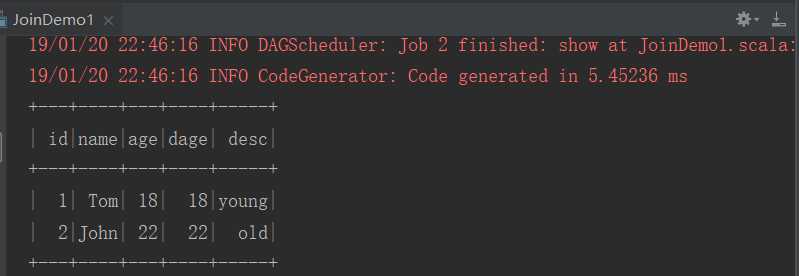

4、结果
