作为Kube认得Web用户界面，用户可以通过Dashboard在Kubernetes集群中部署容器化的应用，对应用进行问题处理和管理，并对集群本身进行管理。通过Dashboard，用户可以查看集群中应用的运行情况，同时也能够基于Dashboard创建或修改部署、任务、服务等Kubernetes的资源。通过部署向导，用户能够对部署进行扩容缩容，进行滚动更新。重启Pod或部署新应用，也能够查看Kubernetes资源的状态。
apiVersion: v1kind: Secretmetadata: labels: k8s-app: kubernetes-dashboard # Allows editing resource and makes sure it is created first. addonmanager.kubernetes.io/mode: EnsureExists name: kubernetes-dashboard-certs namespace: kube-systemtype: Opaque---apiVersion: v1kind: Secretmetadata: labels: k8s-app: kubernetes-dashboard # Allows editing resource and makes sure it is created first. addonmanager.kubernetes.io/mode: EnsureExists name: kubernetes-dashboard-key-holder namespace: kube-systemtype: Opaque
apiVersion: v1kind: ConfigMapmetadata: labels: k8s-app: kubernetes-dashboard # Allows editing resource and makes sure it is created first. addonmanager.kubernetes.io/mode: EnsureExists name: kubernetes-dashboard-settings namespace: kube-system
apiVersion: v1kind: Servicemetadata: name: kubernetes-dashboard namespace: kube-system labels: k8s-app: kubernetes-dashboard kubernetes.io/cluster-service: "true" addonmanager.kubernetes.io/mode: Reconcilespec: selector: k8s-app: kubernetes-dashboard type: NodePort ports: - port: 443 targetPort: 8443
kind: RoleapiVersion: rbac.authorization.k8s.io/v1metadata: labels: k8s-app: kubernetes-dashboard addonmanager.kubernetes.io/mode: Reconcile name: kubernetes-dashboard-minimal namespace: kube-systemrules: # Allow Dashboard to get, update and delete Dashboard exclusive secrets.- apiGroups: [""] resources: ["secrets"] resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs"] verbs: ["get", "update", "delete"] # Allow Dashboard to get and update ‘kubernetes-dashboard-settings‘ config map.- apiGroups: [""] resources: ["configmaps"] resourceNames: ["kubernetes-dashboard-settings"] verbs: ["get", "update"] # Allow Dashboard to get metrics from heapster.- apiGroups: [""] resources: ["services"] resourceNames: ["heapster"] verbs: ["proxy"]- apiGroups: [""] resources: ["services/proxy"] resourceNames: ["heapster", "http:heapster:", "https:heapster:"] verbs: ["get"]---apiVersion: rbac.authorization.k8s.io/v1kind: RoleBindingmetadata: name: kubernetes-dashboard-minimal namespace: kube-system labels: k8s-app: kubernetes-dashboard addonmanager.kubernetes.io/mode: ReconcileroleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: kubernetes-dashboard-minimalsubjects:- kind: ServiceAccount name: kubernetes-dashboard namespace: kube-system---apiVersion: rbac.authorization.k8s.io/v1beta1kind: ClusterRoleBindingmetadata: name: kubernetes-dashboard-crbroleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: adminsubjects:- kind: ServiceAccount name: kubernetes-dashboard namespace: kube-system
apiVersion: v1kind: ServiceAccountmetadata: labels: k8s-app: kubernetes-dashboard addonmanager.kubernetes.io/mode: Reconcile name: kubernetes-dashboard namespace: kube-system---apiVersion: apps/v1kind: Deploymentmetadata: name: kubernetes-dashboard namespace: kube-system labels: k8s-app: kubernetes-dashboard kubernetes.io/cluster-service: "true" addonmanager.kubernetes.io/mode: Reconcilespec: selector: matchLabels: k8s-app: kubernetes-dashboard template: metadata: labels: k8s-app: kubernetes-dashboard annotations: scheduler.alpha.kubernetes.io/critical-pod: ‘‘ seccomp.security.alpha.kubernetes.io/pod: ‘docker/default‘ spec: priorityClassName: system-cluster-critical containers: - name: kubernetes-dashboard #image: k8s.gcr.io/kubernetes-dashboard-amd64:v1.8.3 image: dockeryanxiao/kubernetes-dashboard-amd64 resources: limits: cpu: 100m memory: 300Mi requests: cpu: 50m memory: 100Mi ports: - containerPort: 8443 protocol: TCP args: # PLATFORM-SPECIFIC ARGS HERE - --auto-generate-certificates volumeMounts: - name: kubernetes-dashboard-certs mountPath: /certs - name: tmp-volume mountPath: /tmp livenessProbe: httpGet: scheme: HTTPS path: / port: 8443 initialDelaySeconds: 30 timeoutSeconds: 30 volumes: - name: kubernetes-dashboard-certs secret: secretName: kubernetes-dashboard-certs - name: tmp-volume emptyDir: {} serviceAccountName: kubernetes-dashboard tolerations: - key: "CriticalAddonsOnly" operator: "Exists"
提交资源后查看svc对外提供服务的端口访问：https://node:svc-port。查看访问token后使用token登录：
kubectl describe secret $(kubectl get secret -n kube-system |grep dashboard-token | awk ‘{print $1}‘) -n kube-system
apiVersion: v1kind: ServiceAccountmetadata: name: heapster namespace: kube-system---kind: ClusterRoleBindingapiVersion: rbac.authorization.k8s.io/v1beta1metadata: name: heapsterroleRef: kind: ClusterRole name: cluster-admin apiGroup: rbac.authorization.k8s.iosubjects: - kind: ServiceAccount name: heapster namespace: kube-system
apiVersion: v1kind: Servicemetadata: name: heapster namespace: kube-systemspec: selector: k8s-app: heapster ports: - port: 80 targetPort: 8082
apiVersion: extensions/v1beta1kind: Deploymentmetadata: name: heapster namespace: kube-systemspec: replicas: 1 template: metadata: labels: task: monitoring k8s-app: heapster spec: serviceAccountName: heapster containers: - name: heapster image: registry.cn-hangzhou.aliyuncs.com/google-containers/heapster-amd64:v1.5.1 imagePullPolicy: IfNotPresent command: - /heapster #- --source=kubernetes:kubernetes:https://kubernetes.default?useServiceAccount=true&kubeletHttps=true&kubeletPort=10250&insecure=true #- --source=kubernetes:https://kubernetes.default #- --sink=influxdb:http://monitoring-influxdb:8086 #- --source=kubernetes:https://kuberntes.default:443?useServiceAccount=true&kubeletHttps=true&kubeletPort=10250&insecure=true - --source=kubernetes:kubernetes:https://kuberntes.default?useServiceAccount=true&kubeletHttps=true&kubeletPort=10250&insecure=true - --metric-resolution=10s

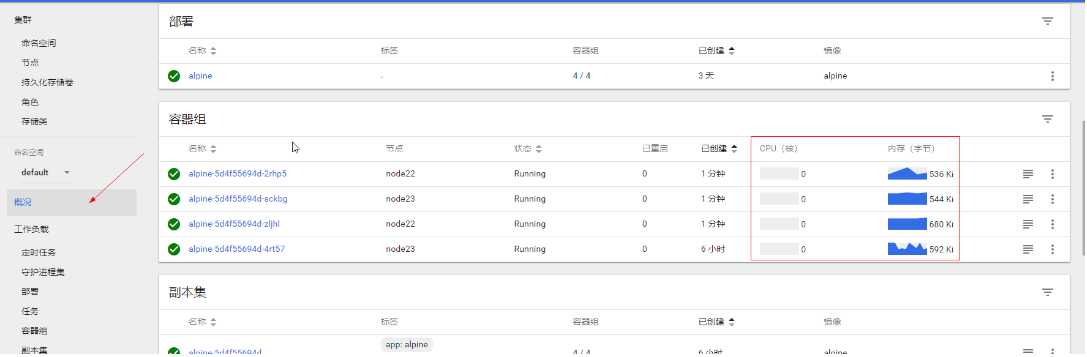

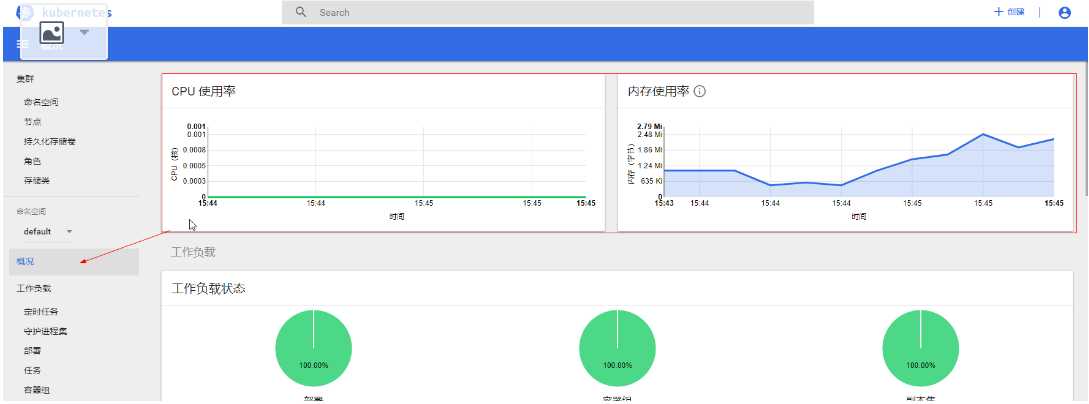

安装后dashboard界面会显示更多功能：
