MVC项目集成swagger

1、创建WebAPI项目解决方案

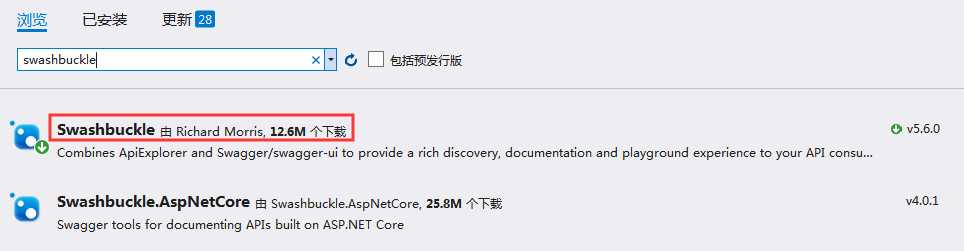

2、使用nuget引入Swashbuckle包





引入Swashbuckle包后App_Start文件夹下会多出一个SwaggerConfig文件

3、添加接口注释

项目属性->生成,勾选生成xml文档文件(有些太古老的WebSite项目不支持注释功能,因为根本没有生成xml这一个选项)

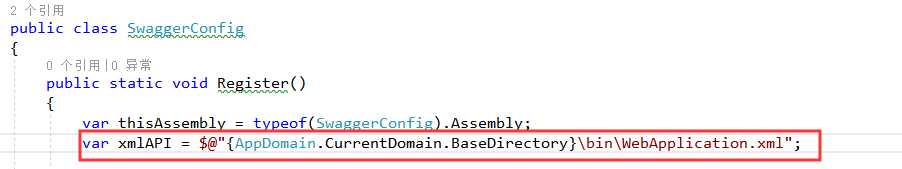

生成xml文档后在SwaggerConfig文件里加入配置

 var xmlAPI = $@"{AppDomain.CurrentDomain.BaseDirectory}\bin\WebApplication.xml";





包含xml注释,在.EnableSwagger里找到c.IncludeXmlComments并传入刚才添加的xml路径,此处是(XMLAPI)

.EnableSwagger(c=>{
  c.IncludeXmlComments(xmlAPI);
})

到此已经可以运行项目并且可以看到注释,在浏览器地址栏输入http://xxx/Swagger回车即可

现在看到的文档界面都是英文的,接下来进行汉化

4、汉化

  4.1创建js文件,把下面的js代码放入到项目里

/// <summary>/// 中文转换/// </summary>var SwaggerTranslator = (function () { //定时执行检测是否转换成中文,最多执行500次 即500*50/1000=25s var iexcute = 0, //中文语言包 _words = { "Warning: Deprecated": "警告:已过时", "Implementation Notes": "实现备注", "Response Class": "响应类", "Status": "状态", "Parameters": "参数", "Parameter": "参数", "Value": "值", "Description": "描述", "Parameter Type": "参数类型", "Data Type": "数据类型", "Response Messages": "响应消息", "HTTP Status Code": "HTTP状态码", "Reason": "原因", "Response Model": "响应模型", "Request URL": "请求URL", "Response Body": "响应体", "Response Code": "响应码", "Response Headers": "响应头", "Hide Response": "隐藏响应", "Headers": "头", "Try it out!": "试一下!", "Show/Hide": "显示/隐藏", "List Operations": "显示操作", "Expand Operations": "展开操作", "Raw": "原始", "can‘t parse JSON. Raw result": "无法解析JSON. 原始结果", "Model Schema": "模型架构", "Model": "模型", "apply": "应用", "Username": "用户名", "Password": "密码", "Terms of service": "服务条款", "Created by": "创建者", "See more at": "查看更多:", "Contact the developer": "联系开发者", "api version": "api版本", "Response Content Type": "响应Content Type", "fetching resource": "正在获取资源", "fetching resource list": "正在获取资源列表", "Explore": "浏览", "Show Swagger Petstore Example Apis": "显示 Swagger Petstore 示例 Apis", "Can‘t read from server. It may not have the appropriate access-control-origin settings.": "无法从服务器读取。可能没有正确设置access-control-origin。", "Please specify the protocol for": "请指定协议:", "Can‘t read swagger JSON from": "无法读取swagger JSON于", "Finished Loading Resource Information. Rendering Swagger UI": "已加载资源信息。正在渲染Swagger UI", "Unable to read api": "无法读取api", "from path": "从路径", "Click to set as parameter value": "点击设置参数", "server returned": "服务器返回" }, //定时执行转换 _translator2Cn = function () { if ($("#resources_container .resource").length > 0) { _tryTranslate(); } if ($("#explore").text() == "Explore" && iexcute < 500) { iexcute++; setTimeout(_translator2Cn, 50); } }, //设置控制器注释 _setControllerSummary = function () { $.ajax({ type: "get", async: true, url: $("#input_baseUrl").val(), dataType: "json", success: function (data) { var summaryDict = data.ControllerDesc; var id, controllerName, strSummary; $("#resources_container .resource").each(function (i, item) { id = $(item).attr("id"); if (id) { controllerName = id.substring(9); strSummary = summaryDict[controllerName]; if (strSummary) { $(item).children(".heading").children(".options").prepend(‘<li class="controller-summary" title="‘ + strSummary + ‘">‘ + strSummary + ‘</li>‘); } } }); } }); }, //尝试将英文转换成中文 _tryTranslate = function () { $(‘[data-sw-translate]‘).each(function () { $(this).html(_getLangDesc($(this).html())); $(this).val(_getLangDesc($(this).val())); $(this).attr(‘title‘, _getLangDesc($(this).attr(‘title‘))); }); }, _getLangDesc = function (word) { return _words[$.trim(word)] !== undefined ? _words[$.trim(word)] : word; }; return { Translator: function () { document.title = "API描述文档"; $(‘body‘).append(‘<style type="text/css">.controller-summary{color:#10a54a !important;word-break:keep-all;white-space:nowrap;overflow:hidden;text-overflow:ellipsis;max-width:250px;text-align:right;cursor:default;} </style>‘); $("#logo").html("接口描述").attr("href", "/Home/Index"); //设置控制器描述 _setControllerSummary(); _translator2Cn(); } }})();//执行转换SwaggerTranslator.Translator();

右击刚才创建的js文件,选择属性,生成操作改为嵌入的资源

SwaggerConfig文件里加入配置

 .EnableSwaggerUi(c =>{ //路径规则,项目命名空间.文件夹名称.js文件名称  c.InjectJavaScript(thisAssembly, "WebApplication.Scripts.swagger-ui-zh-cn.js");})

  4.2、控制器描述和接口文档缓存

 在App_Start目录下创建类文件CachingSwaggerProvider

 public class CachingSwaggerProvider : ISwaggerProvider { private readonly ISwaggerProvider _swaggerProvider; private static ConcurrentDictionary<string, SwaggerDocument> _cache = new ConcurrentDictionary<string, SwaggerDocument>(); private readonly string _xml; public CachingSwaggerProvider(ISwaggerProvider swaggerProvider, string xml) { _swaggerProvider = swaggerProvider; _xml = xml; } public SwaggerDocument GetSwagger(string rootUrl, string apiVersion) { var cacheKey = string.Format("{0}_{1}", rootUrl, apiVersion); SwaggerDocument srcDoc = null; //只读取一次 if (!_cache.TryGetValue(cacheKey, out srcDoc)) { srcDoc = _swaggerProvider.GetSwagger(rootUrl, apiVersion); srcDoc.vendorExtensions = new Dictionary<string, object> { { "ControllerDesc", GetControllerDesc() } }; _cache.TryAdd(cacheKey, srcDoc); } return srcDoc; } /// <summary> /// 从API文档中读取控制器描述 /// </summary> /// <returns>所有控制器描述</returns> public ConcurrentDictionary<string, string> GetControllerDesc() { string xmlpath = _xml; ConcurrentDictionary<string, string> controllerDescDict = new ConcurrentDictionary<string, string>(); if (File.Exists(xmlpath)) { XmlDocument xmldoc = new XmlDocument(); xmldoc.Load(xmlpath); string type = string.Empty, path = string.Empty, controllerName = string.Empty; string[] arrPath; int length = -1, cCount = "Controller".Length; XmlNode summaryNode = null; foreach (XmlNode node in xmldoc.SelectNodes("//member")) { type = node.Attributes["name"].Value; if (type.StartsWith("T:")) { //控制器 arrPath = type.Split(.); length = arrPath.Length; controllerName = arrPath[length - 1]; if (controllerName.EndsWith("Controller")) { //获取控制器注释 summaryNode = node.SelectSingleNode("summary"); string key = controllerName.Remove(controllerName.Length - cCount, cCount); if (summaryNode != null && !string.IsNullOrEmpty(summaryNode.InnerText) && !controllerDescDict.ContainsKey(key)) { controllerDescDict.TryAdd(key, summaryNode.InnerText.Trim()); } } } } } return controllerDescDict; } }

SwaggerConfig文件里加入配置

.EnableSwagger(c=>{  c.CustomProvider((defaultProvider) => new CachingSwaggerProvider(defaultProvider,xmlAPI));})

  4.3、action 方法名称相同处理

.EnableSwagger(c=>{  c.ResolveConflictingActions(apiDescriptions => apiDescriptions.First());})

5、一个Controller不支持多个Get/Post请求问题,修改WebApiConfig.cs

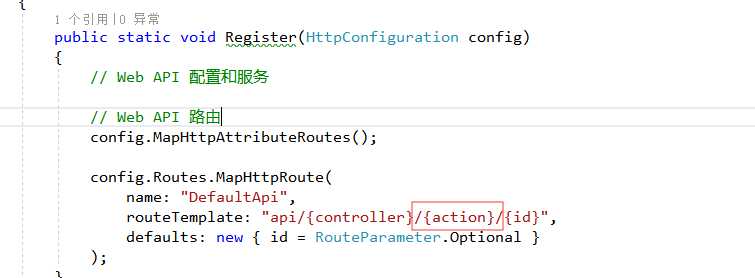

打开 App_Start目录下的WebApiConfig文件
