Kubernetes2-K8s的集群部署

一、简介

  1、架构参考

              Kubernetes1-K8s的简单介绍

   2、实例架构

    192.168.216.51 master  etcd

    192.168.216.53 node1

    192.168.216.54 node1

  3、拓扑

  4、软件版本

[root@master ~]# cat /etc/redhat-release CentOS Linux release 7.6.1810 (Core) [root@master ~]# uname -aLinux master 3.10.0-957.21.3.el7.x86_64 #1 SMP Tue Jun 18 16:35:19 UTC 2019 x86_64 x86_64 x86_64 GNU/Linux[root@master ~]# [root@master ~]# docker version Client: Version: 1.13.1 API version: 1.26

    kubernetes版本请见下面安装时候的依赖关系



二、部署软件

  1、修改主机名

    1)按照如下名称修改主机名每台主机分别修改

     hostnamectl set-hostname master     #hostnamectl set-hostname etcd 暂时不用此节点和master公用一个节点     hostnamectl set-hostname node1     hostnamectl set-hostname node2

    2)并修改hosts文件

      三台主机都修改hosts文件

[root@node2 yum.repos.d]# cat >>/etc/hosts<<eof> 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4> ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6> 192.168.216.51 master> 192.168.216.52 etcd #因为做实验时候虚拟机有点问题,暂时不用此节点etcd和master一个节点> 192.168.216.53 node1> 192.168.216.54 node2> eof



  2、时间同步

    三台节点都启用chronyd,保证时间同步

    systemctl start chronyd
    systemctl enable chronyd



  3、安装软件

    master/etcd:kubenetes flannel etcd



yum install kubernetes etcd flannel ntp -y


Installed: etcd.x86_64 0:3.3.11-2.el7.centos flannel.x86_64 0:0.7.1-4.el7 kubernetes.x86_64 0:1.5.2-0.7.git269f928.el7 Dependency Installed: conntrack-tools.x86_64 0:1.4.4-5.el7_7.2 docker.x86_64 2:1.13.1-103.git7f2769b.el7.centos docker-client.x86_64 2:1.13.1-103.git7f2769b.el7.centos docker-common.x86_64 2:1.13.1-103.git7f2769b.el7.centos kubernetes-client.x86_64 0:1.5.2-0.7.git269f928.el7 kubernetes-master.x86_64 0:1.5.2-0.7.git269f928.el7 kubernetes-node.x86_64 0:1.5.2-0.7.git269f928.el7 libnetfilter_cthelper.x86_64 0:1.0.0-10.el7_7.1 libnetfilter_cttimeout.x86_64 0:1.0.0-6.el7_7.1 libnetfilter_queue.x86_64 0:1.0.2-2.el7_2 socat.x86_64 0:1.7.3.2-2.el7 Updated: ntp.x86_64 0:4.2.6p5-29.el7.centos Dependency Updated: ntpdate.x86_64 0:4.2.6p5-29.el7.centos Complete![root@master backup1]#

View Code


    node1/node2

[root@node4 ~]# yum install kubernetes flannel ntp -y
[root@node3 ~]# yum install kubernetes flannel ntp -y



三、配置

  1、配置etct

    1)修改第6,10,23行为第7、11、24行的内容即可,也就是标红部分

[root@etcd ~]# vim /etc/etcd/etcd.conf 6 #ETCD_LISTEN_CLIENT_URLS="http://localhost:2379" 7 ETCD_LISTEN_CLIENT_URLS="http://localhost:2379,http://192.168.216.51:2379" 10 #ETCD_NAME="default" 11 ETCD_NAME="etcd"   23 #ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379" 24 ETCD_ADVERTISE_CLIENT_URLS="http://192.168.216.51:2379"

    2)配置文件含义



  ETCD_NAME="etcd"
 #etcd节点名称,如果etcd机器只有一台etcd可以不修改,保持默认default  ETCD_DATA_DIR
="/var/lib/etcd/default.etcd"
 #数据存储目录  ETCD_LISTEN_CLIENT_URLS
="http://localhost:2379,http://192.168.216.51:2379"
#etcd对外服务监听地址,一般指定2379端口,如果为0.0.0.0将会监听所有端口  ETCD_ADVERTISE_CLIENT_URLS="http://192.168.216.51:2379"
#这个是通知客户端的urls



    3)启动服务

systemctl start etcd
systemctl status etcd
systemctl enable etcd

    4)监听端口 2379

netstat -antup |grep 2379

    5)查看成员列表

[root@master ~]# etcdctl member list
8e9e05c52164694d: name=etcd peerURLs=http://localhost:2380 clientURLs=http://192.168.216.51:2379 isLeader=true
[root@master ~]#



  2、配置master服务器

     1)修改kubernetes配置文件

      修改第22行标红的

[root@master ~]# vim /etc/kubernetes/config 22 KUBE_MASTER="--master=http://192.168.216.51:8080"

    2)配置文件意思

 1 ### 2 # kubernetes system config 3 # 4 # The following values are used to configure various aspects of all 5 # kubernetes services, including 6 7 # kube-apiserver.service 8 # kube-controller-manager.service 9 # kube-scheduler.service 10 # kubelet.service 11 # kube-proxy.service 12 # logging to stderr means we get it in the systemd journal 13 KUBE_LOGTOSTDERR="--logtostderr=true" 14 #---表示错误日志记录道文件还是输出道stderr标准错误输出 15 # journal message level, 0 is debug 16 KUBE_LOG_LEVEL="--v=0" 17 #---日志等级 18 # Should this cluster be allowed to run privileged docker containers 19 KUBE_ALLOW_PRIV="--allow-privileged=false" 20 #---是否运行运行特权容器,false是不允许 21 # How the controller-manager, scheduler, and proxy find the apiserver 22 KUBE_MASTER="--master=http://192.168.216.51:8080" 23 #---监听端口 ~

     3)修改apiserver配置文件

      修改标红部分

[root@master ~]# vim /etc/kubernetes/apiserver 1 ### 2 # kubernetes system config 3 # 4 # The following values are used to configure the kube-apiserver 5 # 6 7 # The address on the local server to listen to. 8 #KUBE_API_ADDRESS="--insecure-bind-address=127.0.0.1" 9 KUBE_API_ADDRESS="--insecure-bind-address=0.0.0.0" 10 #---监听的接口,修改为0.0.0.0监听所有端口 11 # The port on the local server to listen on. 12 # KUBE_API_PORT="--port=8080" 13 14 # Port minions listen on 15 # KUBELET_PORT="--kubelet-port=10250" 16 17 # Comma separated list of nodes in the etcd cluster 18 #KUBE_ETCD_SERVERS="--etcd-servers=http://127.0.0.1:2379" 19 KUBE_ETCD_SERVERS="--etcd-servers=http://192.168.216.51:2379" 20 #---etcd服务地址,之前配置的etcd服务 21 # Address range to use for services 22 KUBE_SERVICE_ADDRESSES="--service-cluster-ip-range=10.254.0.0/16" 23 #---kubernetes可以分配的ip的范围,kubernetes启动的每个pod以及service都会分配一个地址这里定义一个ip池 24 # default admission control policies 25 #KUBE_ADMISSION_CONTROL="--admission-control=NamespaceLifecycle,NamespaceExists,LimitRanger,SecurityContextDeny, ServiceAccount,ResourceQuota" 26 KUBE_ADMISSION_CONTROL="--admission-control=AlwaysAdmit" 27 #---不做限制,允许所有节点可以访问apiserver,对所有请求的允许
 28 # Add your own! 29 KUBE_API_ARGS="" ~

    4)配置kube-controller-manager配置文件

      这里保持默认即可,先不用修改

[root@master ~]# cat /etc/kubernetes/controller-manager #### The following values are used to configure the kubernetes controller-manager# defaults from config and apiserver should be adequate# Add your own!KUBE_CONTROLLER_MANAGER_ARGS=""[root@master ~]#

    5)配置kube-schedule

[root@master ~]# vim /etc/kubernetes/scheduler #### kubernetes scheduler config# default config should be adequate# Add your own!KUBE_SCHEDULER_ARGS="0.0.0.0"#---改为监听所有  ~

  3、设置etcd网络

etcdctl mkdir /k8s/network
#---创建一个k8s/network用于存储flannel网络信息
etcdctl set /k8s/network/config ‘{"Network": "10.255.0.0/16"}‘
#---给/k8s/network/config 赋一个字符串的值‘{"Network": "10.255.0.0/16"}‘,这个配置将用于flannel分配给每个docker的虚拟ip地址段,用于配置在minion上的dockerip地址

[root@master ~]# etcdctl get /k8s/network/config

#---查看etcd网络配置记录
{"Network": "10.255.0.0/16"}
[root@master ~]#

  4、flanneld



[root@master ~]# vim /etc/sysconfig/flanneld

# Flanneld configuration options

# etcd url location. Point this to the server where etcd runs
FLANNEL_ETCD_ENDPOINTS="http://192.168.216.51:2379"

#---etcd url位置信息,指向运行的etcd服务器

# etcd config key. This is the configuration key that flannel queries
# For address range assignment
FLANNEL_ETCD_PREFIX="/k8s/network"

#---指定网络配置目录

# Any additional options that you want to pass
FLANNEL_OPTIONS="--iface=ens33"

#---指定网卡

[root@master ~]# systemctl restart flanneld

 [root@master ~]# systemctl status flanneld
● flanneld.service - Flanneld overlay address etcd agent
Loaded: loaded (/usr/lib/systemd/system/flanneld.service; enabled; vendor preset: disabled)
Active: active (running) since Tue 2019-10-29 17:21:54 CST; 42min ago
Main PID: 12715 (flanneld)
CGroup: /system.slice/flanneld.service
└─12715 /usr/bin/flanneld -etcd-endpoints=http://192.168.216.51:2379 -etcd-prefix=/k8s/network --iface...

Oct 29 17:21:53 master systemd[1]: Starting Flanneld overlay address etcd agent...
Oct 29 17:21:54 master flanneld-start[12715]: I1029 17:21:54.022949 12715 main.go:132] Installing signal handlers
Oct 29 17:21:54 master flanneld-start[12715]: I1029 17:21:54.023985 12715 manager.go:149] Using interface w...6.51
Oct 29 17:21:54 master flanneld-start[12715]: I1029 17:21:54.024047 12715 manager.go:166] Defaulting extern....51)
Oct 29 17:21:54 master flanneld-start[12715]: I1029 17:21:54.048791 12715 local_manager.go:134] Found lease...sing
Oct 29 17:21:54 master flanneld-start[12715]: I1029 17:21:54.068556 12715 manager.go:250] Lease acquired: 1...0/24
Oct 29 17:21:54 master flanneld-start[12715]: I1029 17:21:54.069202 12715 network.go:98] Watching for new s...ases
Oct 29 17:21:54 master systemd[1]: Started Flanneld overlay address etcd agent.
Oct 29 17:38:56 master flanneld-start[12715]: I1029 17:38:56.822596 12715 network.go:191] Subnet added: 10....0/24
Oct 29 17:56:05 master flanneld-start[12715]: I1029 17:56:05.501411 12715 network.go:191] Subnet added: 10....0/24
Hint: Some lines were ellipsized, use -l to show in full.
[root@master ~]#



    查看子网信息

[root@master ~]# ifconfig
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.216.51 netmask 255.255.255.0 broadcast 192.168.216.255
inet6 fe80::3409:e73d:1ef:2e1 prefixlen 64 scopeid 0x20<link>
inet6 fe80::9416:80e8:f210:1e24 prefixlen 64 scopeid 0x20<link>
inet6 fe80::39cb:d8d1:a78b:9be1 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:1c:8b:39 txqueuelen 1000 (Ethernet)
RX packets 124978 bytes 149317395 (142.4 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 47636 bytes 5511781 (5.2 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

flannel0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST> mtu 1472
inet 10.255.16.0 netmask 255.255.0.0 destination 10.255.16.0
inet6 fe80::1837:1885:18c6:5e52 prefixlen 64 scopeid 0x20<link>
unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 500 (UNSPEC)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 3 bytes 144 (144.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 178940 bytes 55467759 (52.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 178940 bytes 55467759 (52.8 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
ether 52:54:00:23:a5:7c txqueuelen 1000 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

[root@master ~]#

[root@master ~]# cat /run/flannel/subnet.env

#---查看子网信息,之后会有一个脚本将subnet.env转写成一个docker的环境变量文件/run/flannel/docker
FLANNEL_NETWORK=10.255.0.0/16
FLANNEL_SUBNET=10.255.16.1/24
FLANNEL_MTU=1472
FLANNEL_IPMASQ=false
[root@master ~]#


[root@etcd ~]# cat /run/flannel/docker DOCKER_OPT_BIP="--bip=10.255.93.1/24"DOCKER_OPT_IPMASQ="--ip-masq=true"DOCKER_OPT_MTU="--mtu=1472"DOCKER_NETWORK_OPTIONS=" --bip=10.255.93.1/24 --ip-masq=true --mtu=1472"[root@etcd ~]#

  5、配置node1

    1)配置flanneld服务

[root@node1 ~]# vim /etc/sysconfig/flanneld # Flanneld configuration options# etcd url location. Point this to the server where etcd runsFLANNEL_ETCD_ENDPOINTS="http://192.168.216.51:2379" #---指定etcd服务器url# etcd config key. This is the configuration key that flannel queries# For address range assignmentFLANNEL_ETCD_PREFIX="/k8s/network" #---指定网络配置目录# Any additional options that you want to pass#FLANNEL_OPTIONS="--iface=ens33"

    2)配置master地址和kube-proxy

[root@node1 ~]# vim /etc/kubernetes/config#### kubernetes system config## The following values are used to configure various aspects of all# kubernetes services, including## kube-apiserver.service# kube-controller-manager.service# kube-scheduler.service# kubelet.service# kube-proxy.service# logging to stderr means we get it in the systemd journalKUBE_LOGTOSTDERR="--logtostderr=true"# journal message level, 0 is debugKUBE_LOG_LEVEL="--v=0"# Should this cluster be allowed to run privileged docker containersKUBE_ALLOW_PRIV="--allow-privileged=false"# How the controller-manager, scheduler, and proxy find the apiserverKUBE_MASTER="--master=http://192.168.216.51:8080"
#---指定master url地址

    3)配置kube-proxy

      主要是负责service的实现,就是实现内部从pod到service

      这里保持默认即可

[root@node1 ~]# grep -v ^# /etc/kubernetes/proxyKUBE_PROXY_ARGS=""[root@node1 ~]#

    4)配置node1的kubelet

      kubelet组件管理pod,pod中容器及容器的镜像和卷等信息

[root@node1 ~]# vim /etc/kubernetes/kubelet

1 ###
2 # kubernetes kubelet (minion) config
3
4 # The address for the info server to serve on (set to 0.0.0.0 or "" for all interfaces)
5 KUBELET_ADDRESS="--address=0.0.0.0"
6 #---监听所有地址
7 # The port for the info server to serve on
8 # KUBELET_PORT="--port=10250"
9
10 # You may leave this blank to use the actual hostname
11 KUBELET_HOSTNAME="--hostname-override=node1"
12
13 # location of the api-server
14 KUBELET_API_SERVER="--api-servers=http://192.168.216.51:8080"
15 #---api-servers-url地址
16 # pod infrastructure container
17 KUBELET_POD_INFRA_CONTAINER="--pod-infra-container-image=registry.access.redhat.com/rhel7/pod-infrastructure:lat est"
18
19 # Add your own!
20 KUBELET_ARGS=""
~
~
~



    5)启动相关服务

[root@node1 ~]# systemctl restart flanneld kube-proxy kubelet docker[root@node1 ~]# systemctl enable flanneld kube-proxy kubelet docker
[root@node1 ~]# systemctl status flanneld kube-proxy kubelet docker
   注意:这里kubelet可能无法正常启动,请见最后排错

    6)查看ifconfig信息,及端口监听



[root@node1 ~]# ifconfig
docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 10.255.41.1 netmask 255.255.255.0 broadcast 0.0.0.0
ether 02:42:22:ac:66:2f txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.216.53 netmask 255.255.255.0 broadcast 192.168.216.255
inet6 fe80::3409:e73d:1ef:2e1 prefixlen 64 scopeid 0x20<link>
inet6 fe80::9416:80e8:f210:1e24 prefixlen 64 scopeid 0x20<link>
ether 00:0c:29:79:23:62 txqueuelen 1000 (Ethernet)
RX packets 2490 bytes 802004 (783.2 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 1853 bytes 397450 (388.1 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

flannel0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST> mtu 1472
inet 10.255.41.0 netmask 255.255.0.0 destination 10.255.41.0
unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 500 (UNSPEC)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1 (Local Loopback)
RX packets 76 bytes 6004 (5.8 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 76 bytes 6004 (5.8 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
ether 52:54:00:23:a5:7c txqueuelen 1000 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0





[root@node1 ~]# netstat -antup |grep proxytcp 0 0 127.0.0.1:10249  0.0.0.0:* LISTEN 918/kube-proxy tcp 0 0 192.168.216.53:58700 192.168.216.51:8080 ESTABLISHED 918/kube-proxy tcp 0 0 192.168.216.53:58698 192.168.216.51:8080 ESTABLISHED 918/kube-proxy [root@node1 ~]#

    7)验证

      master节点上通过kubectl命令查看

[root@master ~]# kubectl get nodeNAME STATUS AGEnode1 Ready 17h[root@master ~]#

      看到node1 Ready 17h,就是成功了



  6、配置node2,基本和node1一致

    1)从node1发送配置文件到node2

scp /etc/sysconfig/flanneld 192.168.216.54:/etc/sysconfig/scp /etc/kubernetes/config 192.168.216.54:/etc/kubernetes/scp /etc/kubernetes/proxy 192.168.216.54:/etc/kubernetes/scp /etc/kubernetes/kubelet 192.168.216.54:/etc/kubernetes/

    2)只需要改一个文件

      把node1换成node2

[root@node2 ~]# vim /etc/kubernetes/kubelet #### kubernetes kubelet (minion) config# The address for the info server to serve on (set to 0.0.0.0 or "" for all interfaces)KUBELET_ADDRESS="--address="0.0.0.0"# The port for the info server to serve on# KUBELET_PORT="--port=10250"# You may leave this blank to use the actual hostnameKUBELET_HOSTNAME="--hostname-override=node2"# location of the api-serverKUBELET_API_SERVER="--api-servers=http://192.168.216.51:8080"# pod infrastructure containerKUBELET_POD_INFRA_CONTAINER="--pod-infra-container-image=registry.access.redhat.com/rhel7/pod-infrastructure:latest"# Add your own!KUBELET_ARGS=""~~

    3)启动服务,并开机运行

systemctl restart flanneld kube-proxy kubelet dockersystemctl enable flanneld kube-proxy kubelet docker

  7、master验证节点是否加入进来

    看到status 为Ready状态证明成功加入到集群了

[root@master ~]# kubectl get nodeNAME STATUS AGEnode1 Ready 17h node2 Ready 1m[root@master ~]#



四、排错

    针对无法启用kubelet的问题

  1、查看启动详情

[root@node1 ~]# systemctl status -l kubelet● kubelet.service - Kubernetes Kubelet Server Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled) Active: failed (Result: start-limit) since Fri 2019-10-25 15:39:18 CST; 2s ago Docs: https://github.com/GoogleCloudPlatform/kubernetes Process: 71003 ExecStart=/usr/bin/kubelet $KUBE_LOGTOSTDERR $KUBE_LOG_LEVEL $KUBELET_API_SERVER $KUBELET_ADDRESS $KUBELET_PORT $KUBELET_HOSTNAME $KUBE_ALLOW_PRIV $KUBELET_POD_INFRA_CONTAINER $KUBELET_ARGS (code=exited, status=204/MEMORY) Main PID: 71003 (code=exited, status=204/MEMORY)Oct 25 15:39:17 node1 systemd[1]: kubelet.service: main process exited, code=exited, status=204/MEMORYOct 25 15:39:17 node1 systemd[1]: Unit kubelet.service entered failed state.Oct 25 15:39:17 node1 systemd[1]: kubelet.service failed.Oct 25 15:39:18 node1 systemd[1]: kubelet.service holdoff time over, scheduling restart.Oct 25 15:39:18 node1 systemd[1]: start request repeated too quickly for kubelet.serviceOct 25 15:39:18 node1 systemd[1]: Failed to start Kubernetes Kubelet Server.Oct 25 15:39:18 node1 systemd[1]: Unit kubelet.service entered failed state.Oct 25 15:39:18 node1 systemd[1]: kubelet.service failed.[root@node1 ~]# journalctl -f -u kubelet-- Logs begin at Thu 2019-10-24 19:20:13 CST. --Oct 25 15:39:17 node1 systemd[1]: Started Kubernetes Kubelet Server.Oct 25 15:39:17 node1 systemd[1]: Starting Kubernetes Kubelet Server...Oct 25 15:39:17 node1 systemd[1]: kubelet.service: main process exited, code=exited, status=204/MEMORYOct 25 15:39:17 node1 systemd[1]: Unit kubelet.service entered failed state.Oct 25 15:39:17 node1 systemd[1]: kubelet.service failed.Oct 25 15:39:18 node1 systemd[1]: kubelet.service holdoff time over, scheduling restart.Oct 25 15:39:18 node1 systemd[1]: start request repeated too quickly for kubelet.serviceOct 25 15:39:18 node1 systemd[1]: Failed to start Kubernetes Kubelet Server.Oct 25 15:39:18 node1 systemd[1]: Unit kubelet.service entered failed state.Oct 25 15:39:18 node1 systemd[1]: kubelet.service failed.

  2、交换内存

        对应方法是禁用 swap

           swapoff -a

  3、kubelet文件驱动默认cgroupfs, 而我们安装的docker使用的文件驱动是systemd,更改驱动

    1)方法1,这个方法不行,修改后启动docker有问题

#修改daemon.jsonvi /etc/docker/daemon.json#添加如下属性"exec-opts": [ "native.cgroupdriver=systemd"]

    2)方法2,修改docker.service

# 修改docker.servicevi /lib/systemd/system/docker.service找到--exec-opt native.cgroupdriver=systemd 修改为:--exec-opt native.cgroupdriver=cgroupfs \
查看是否更改成功
docker info



  4、虚拟机问题,就重新做了一遍就ok了

    如果上面都不行,估计和我这里一样应该是虚拟机问题,重新恢复镜像重新做了一遍发现没问题

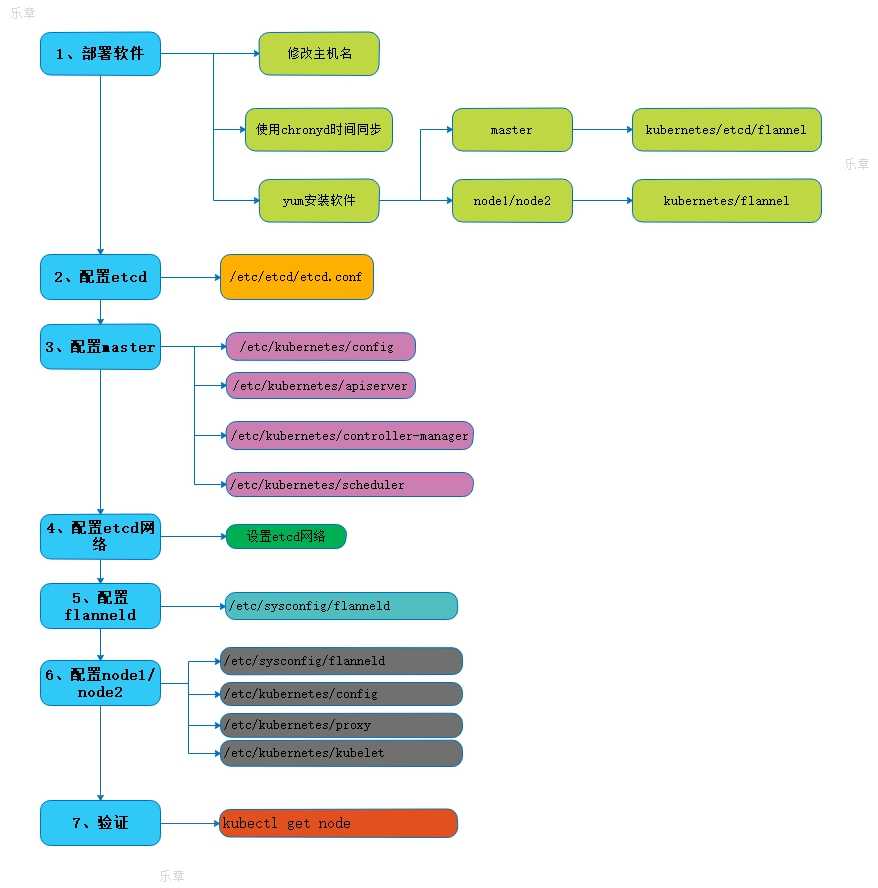

五、配置流程总结:







转载请注明出处:https://www.cnblogs.com/zhangxingeng/p/11721035.html
