怎样通过Html网页调用本地安卓app

怎样使用html网页和本地app进行传递数据呢?经过研究。发现还是有方法的,总结了一下,大致有一下几种方式



一、通过html页面打开Android本地的app

1、首先在编写一个简单的html页面

复制代码
<html> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>Insert title here</title> </head> <body> <a href="m://my.com/">打开app</a><br/> </body></html>
复制代码

2、在Android本地app的配置

复制代码
在AndroidManifest的清单文件中的intent-filte中增加例如以下元素: <intent-filter><action android:name="android.intent.action.VIEW" /> <category android:name="android.intent.category.DEFAULT" /> <category android:name="android.intent.category.BROWSABLE" /> <data android:host="my.com" android:scheme="m" /></intent-filter>
复制代码

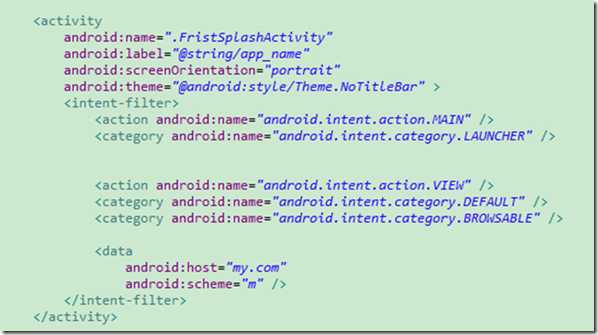

演示样例截图例如以下:




然后使用“手机浏览器”或者“webview”的方式打开这个本地的html网页。点击“打开APP”就可以成功开启本地的指定的app



二、怎样通过这种方法获取网页带过来的数据

仅仅能打开就没什么意思了,最重要的是。我们要传递数据,那么怎么去传递数据呢?

我们能够使用上述的方法,把一些数据传给本地app,那么首先我们更改一下网页。代码改动后:

复制代码
<html> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>Insert title here</title> </head> <body> <a href="m://my.com/?arg0=0&arg1=1">打开app</a><br/> </body></html>
复制代码

(1).假如你是通过浏览器打开这个网页的,那么获取数据的方式为:

Uri uri = getIntent().getData();  String test1= uri.getQueryParameter("arg0");  String test2= uri.getQueryParameter("arg1");

(2)假设使用webview訪问该网页。获取数据的操作为:

复制代码
webView.setWebViewClient(new WebViewClient(){ @Override public boolean shouldOverrideUrlLoading(WebView view, String url) { Uri uri=Uri.parse(url); if(uri.getScheme().equals("m")&&uri.getHost().equals("my.com")){ String arg0=uri.getQueryParameter("arg0"); String arg1=uri.getQueryParameter("arg1"); }else{ view.loadUrl(url); } return true; }});
复制代码
