Linux平台 Oracle 18c RAC安装指导：
Part1：Linux平台 Oracle 18c RAC安装Part1：准备工作
Part2：Linux平台 Oracle 18c RAC安装Part2：GI配置
Part3：Linux平台 Oracle 18c RAC安装Part3：DB安装
本文安装环境：OEL 7.5 + Oracle 18.3 GI & RAC
su - grid
解压 GRID 到 GRID用户的$ORACLE_HOME下
[grid@db40 grid]$ pwd/u01/app/18.3.0/grid[grid@db40 grid]$ unzip /tmp/LINUX.X64_180000_grid_home.zip 在自己的Windows系统上成功安装Xmanager Enterprise之后，运行Xstart.exe可执行程序，
配置如下
Session：db40
Host：192.168.1.40
Protocol：SSH
User Name：grid
Execution Command：/usr/bin/xterm -ls -display $DISPLAY
点击RUN，输入grid用户的密码可以正常弹出命令窗口界面，即配置成功。
当然也可以通过开启Xmanager - Passive，直接在SecureCRT连接的会话窗口中临时配置DISPLAY变量直接调用图形：
export DISPLAY=192.168.1.31:0.0
vi /etc/udev/rules.d/12-dm-permissions.rules
# MULTIPATH DEVICES## Set permissions for all multipath devicesENV{DM_UUID}=="mpath-?*", OWNER:="grid", GROUP:="asmadmin", MODE:="660"配置重载生效：
# udevadm control --reload# udevadm triggerXmanager通过grid用户登录，进入$ORACLE_HOME目录，运行gridSetup配置GI

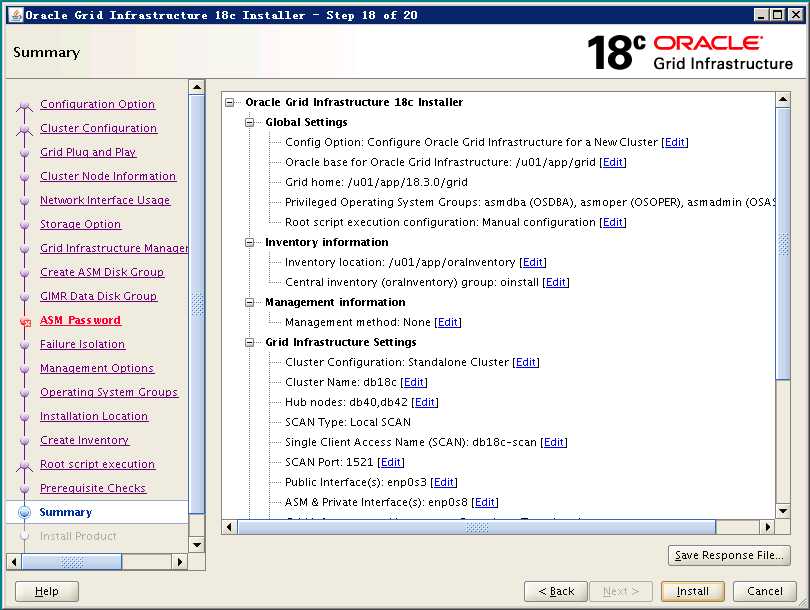

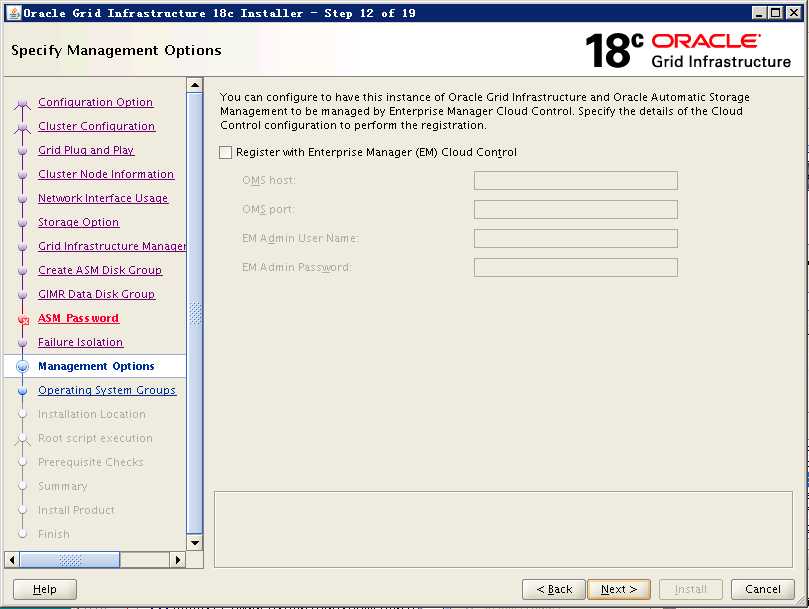

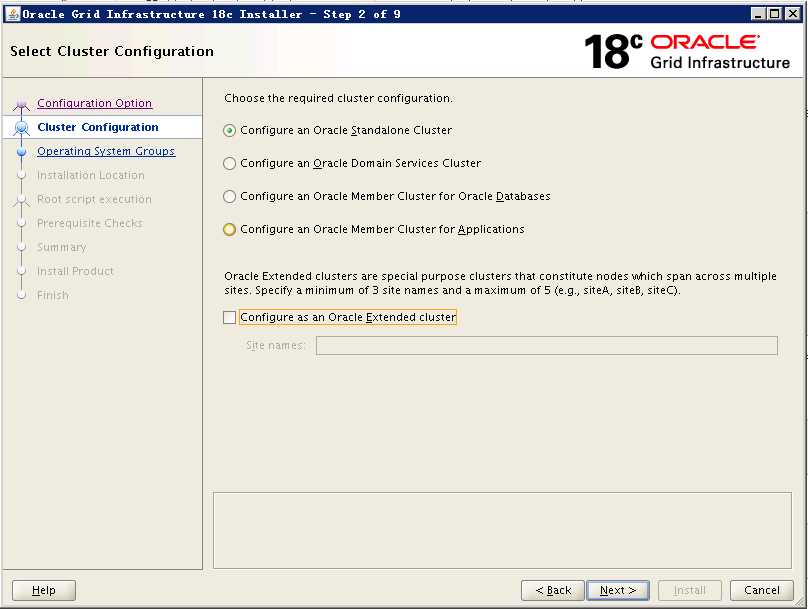

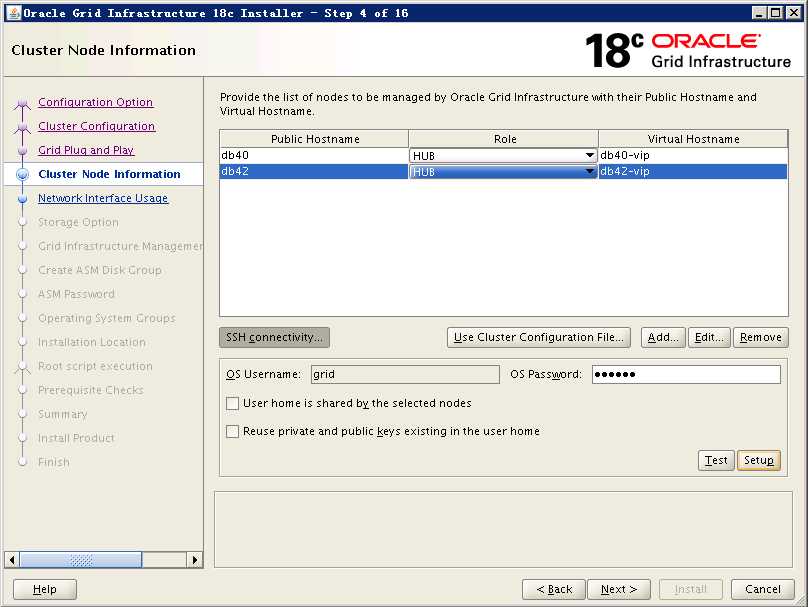

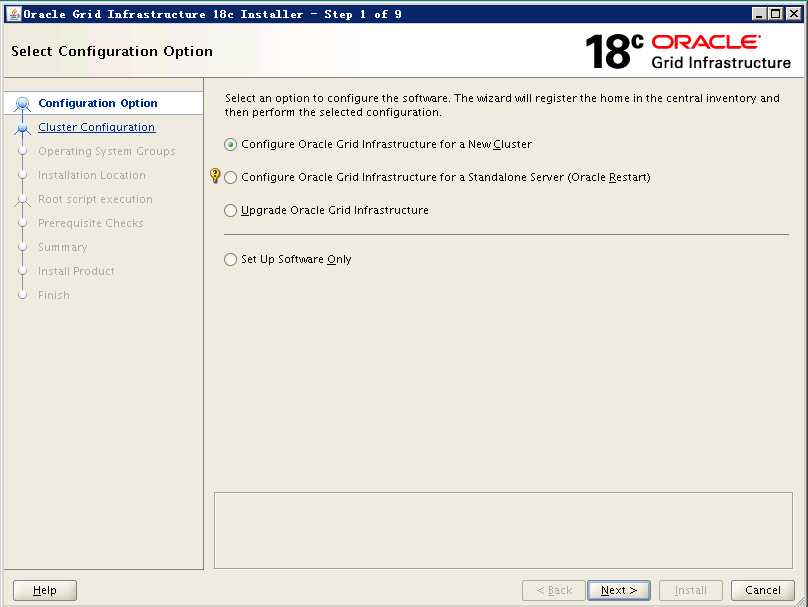

$ cd $ORACLE_HOME$ ./gridSetup.sh其实从12cR2开始，GI的配置就跟之前有一些变化，18c也一样，下面来看下GI配置的整个图形化安装的过程截图：

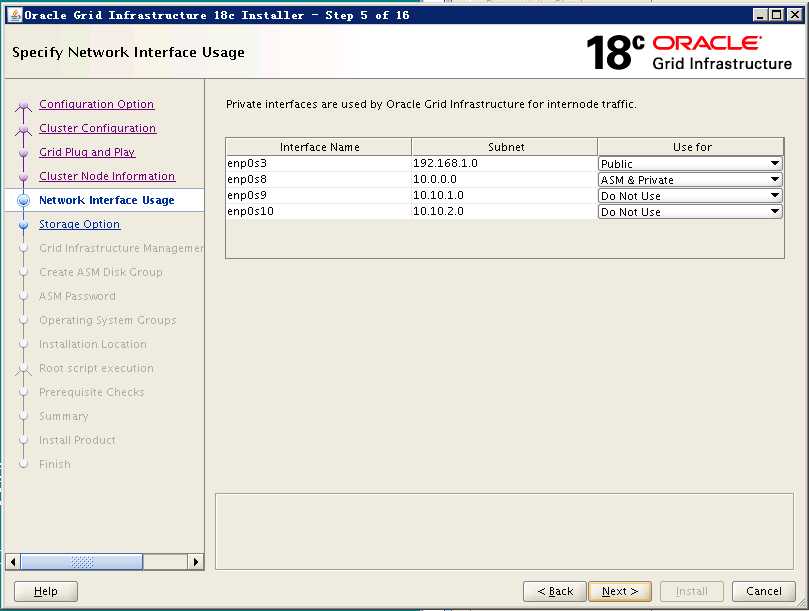

注：这里Public网卡这里用的enp0s3，ASM&Private这里用的enp0s8，enp0s9和enp0s10是模拟IPSAN用到的网卡，所以这里不使用它们。

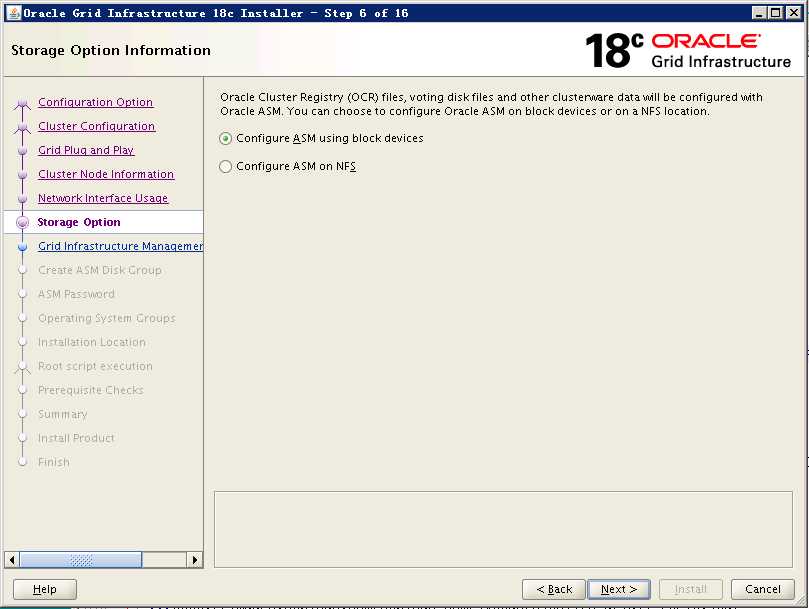

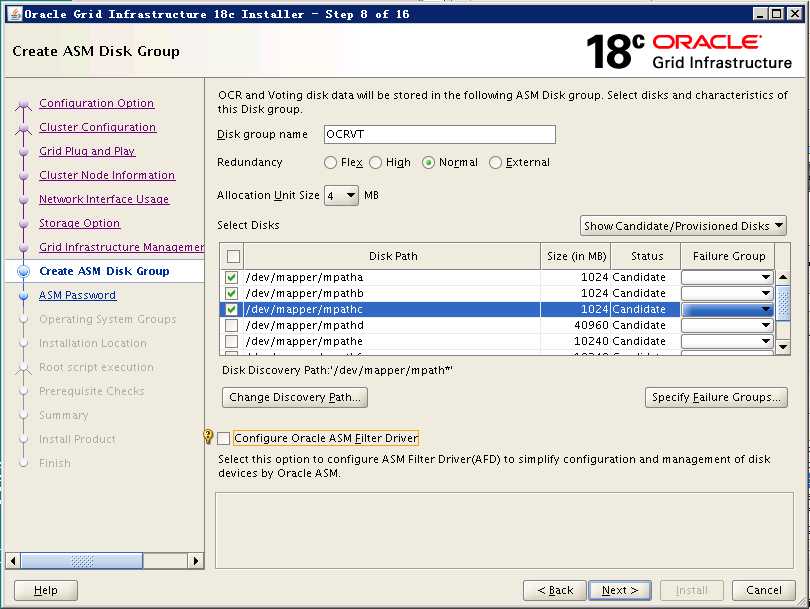

注：这里跟之前区别不大，我依然是选择3块1G的盘，Normal冗余作为OCR和voting disk。

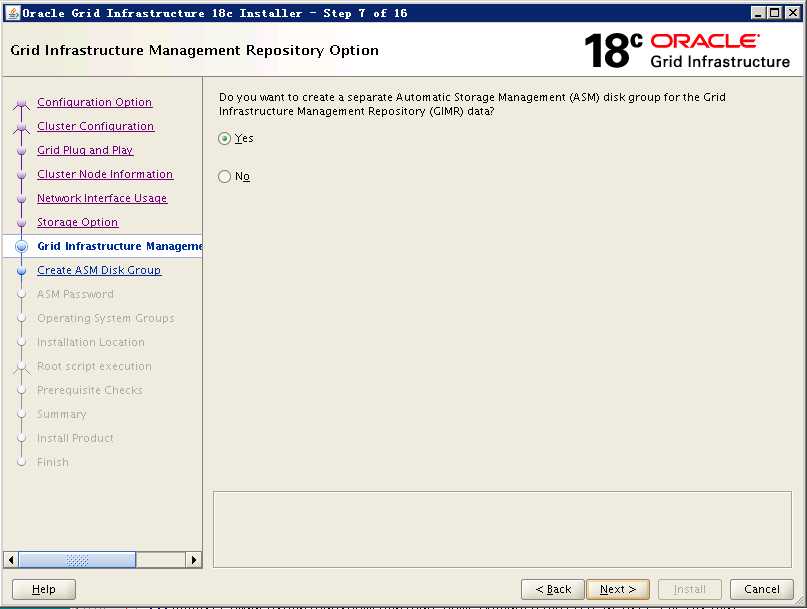

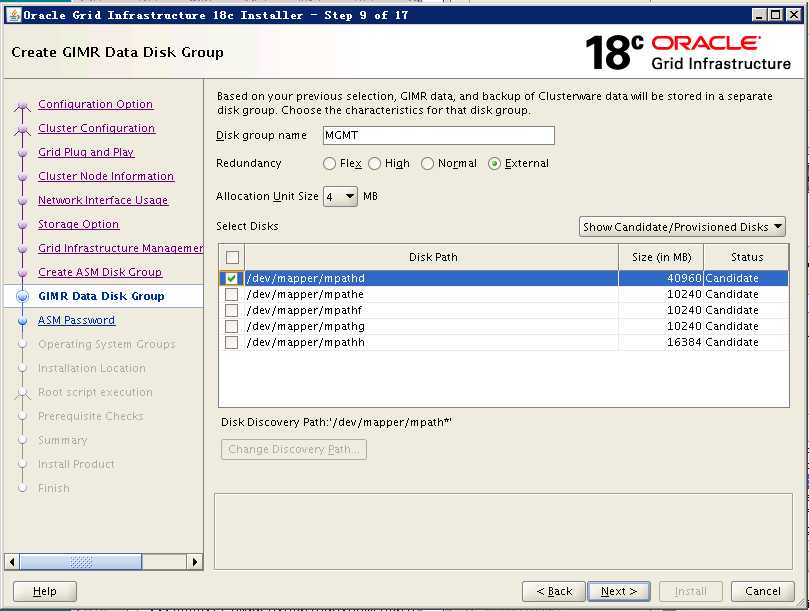

注：这里有一个新的存储GIMR的，我这里选择是外部冗余的一个40G大小的盘，这是12c新引入的概念，18c依然如此。

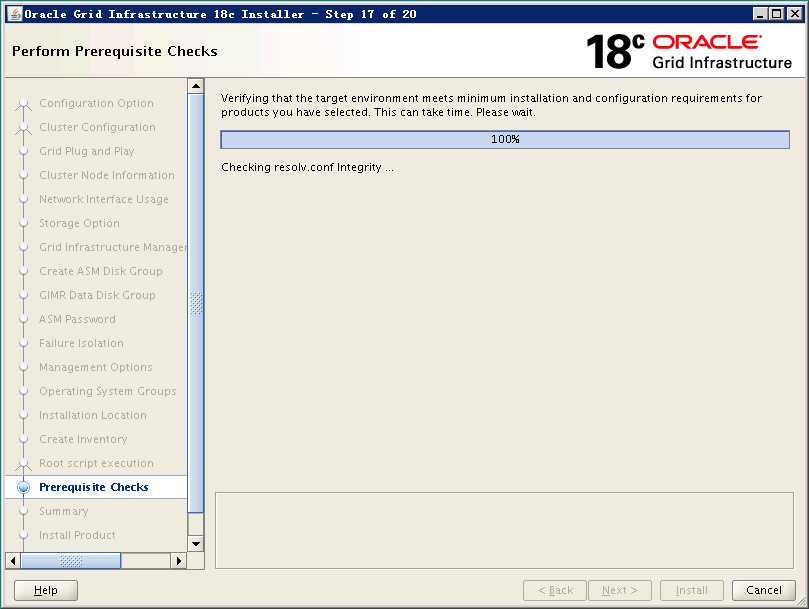

注：这里检查出来的问题都需要认真核对，确认确实可以忽略才可以点击“Ignore All”，如果这里检测出缺少某些RPM包，需要使用yum安装好。

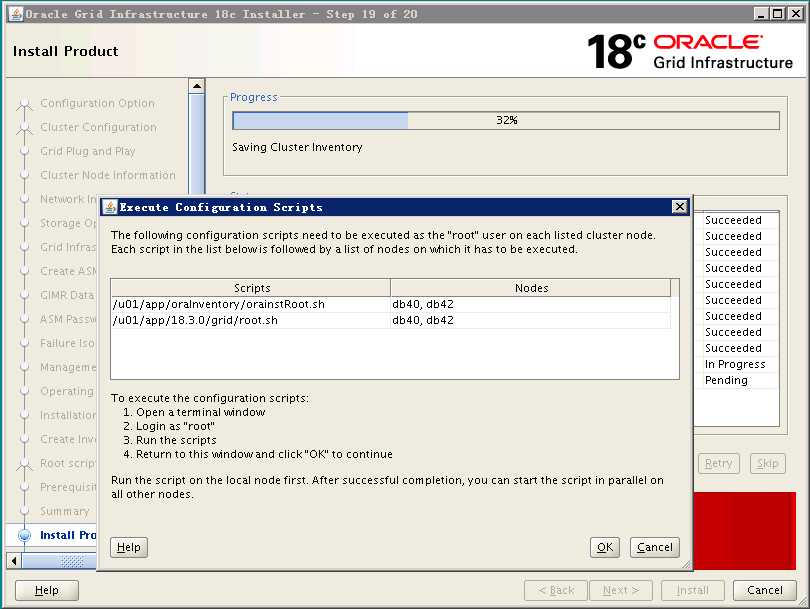

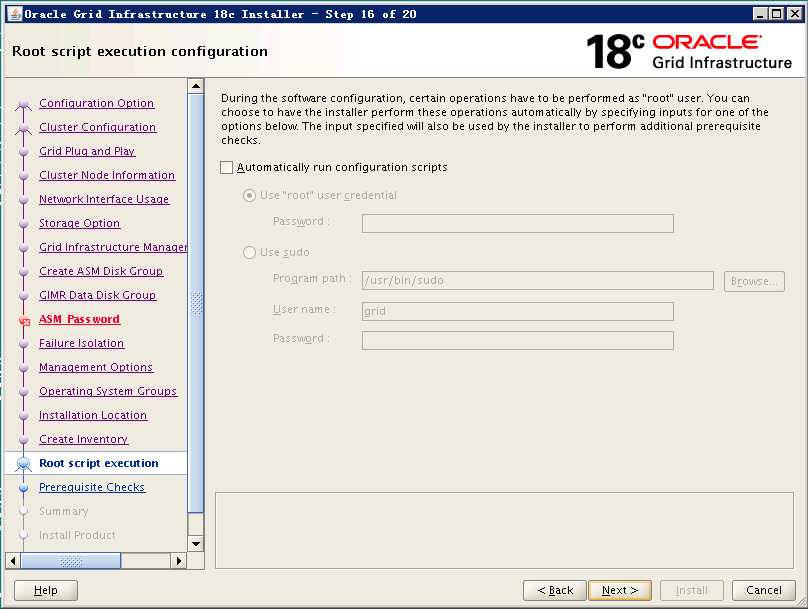

注：执行root脚本，确保先在一节点执行完毕后，再在其他节点执行。
第一个节点root执行脚本：
[root@db40 tmp]# /u01/app/oraInventory/orainstRoot.shChanging permissions of /u01/app/oraInventory.Adding read,write permissions for group.Removing read,write,execute permissions for world.Changing groupname of /u01/app/oraInventory to oinstall.The execution of the script is complete.[root@db40 tmp]# /u01/app/18.3.0/grid/root.shPerforming root user operation.The following environment variables are set as: ORACLE_OWNER= grid ORACLE_HOME= /u01/app/18.3.0/gridEnter the full pathname of the local bin directory: [/usr/local/bin]: Copying dbhome to /usr/local/bin ... Copying oraenv to /usr/local/bin ... Copying coraenv to /usr/local/bin ...Creating /etc/oratab file...Entries will be added to the /etc/oratab file as needed byDatabase Configuration Assistant when a database is createdFinished running generic part of root script.Now product-specific root actions will be performed.Relinking oracle with rac_on optionUsing configuration parameter file: /u01/app/18.3.0/grid/crs/install/crsconfig_paramsThe log of current session can be found at: /u01/app/grid/crsdata/db40/crsconfig/rootcrs_db40_2018-08-04_10-25-09AM.log2018/08/04 10:25:34 CLSRSC-594: Executing installation step 1 of 20: ‘SetupTFA‘.2018/08/04 10:25:35 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.2018/08/04 10:26:29 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.2018/08/04 10:26:29 CLSRSC-594: Executing installation step 2 of 20: ‘ValidateEnv‘.2018/08/04 10:26:29 CLSRSC-363: User ignored prerequisites during installation2018/08/04 10:26:29 CLSRSC-594: Executing installation step 3 of 20: ‘CheckFirstNode‘.2018/08/04 10:26:35 CLSRSC-594: Executing installation step 4 of 20: ‘GenSiteGUIDs‘.2018/08/04 10:26:37 CLSRSC-594: Executing installation step 5 of 20: ‘SaveParamFile‘.2018/08/04 10:26:53 CLSRSC-594: Executing installation step 6 of 20: ‘SetupOSD‘.2018/08/04 10:26:53 CLSRSC-594: Executing installation step 7 of 20: ‘CheckCRSConfig‘.2018/08/04 10:26:53 CLSRSC-594: Executing installation step 8 of 20: ‘SetupLocalGPNP‘.2018/08/04 10:27:47 CLSRSC-594: Executing installation step 9 of 20: ‘CreateRootCert‘.2018/08/04 10:27:54 CLSRSC-594: Executing installation step 10 of 20: ‘ConfigOLR‘.2018/08/04 10:28:09 CLSRSC-594: Executing installation step 11 of 20: ‘ConfigCHMOS‘.2018/08/04 10:28:10 CLSRSC-594: Executing installation step 12 of 20: ‘CreateOHASD‘.2018/08/04 10:28:21 CLSRSC-594: Executing installation step 13 of 20: ‘ConfigOHASD‘.2018/08/04 10:28:21 CLSRSC-330: Adding Clusterware entries to file ‘oracle-ohasd.service‘2018/08/04 10:30:29 CLSRSC-594: Executing installation step 14 of 20: ‘InstallAFD‘.2018/08/04 10:30:43 CLSRSC-594: Executing installation step 15 of 20: ‘InstallACFS‘.CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘db40‘CRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘db40‘ has completedCRS-4133: Oracle High Availability Services has been stopped.CRS-4123: Oracle High Availability Services has been started.2018/08/04 10:32:34 CLSRSC-594: Executing installation step 16 of 20: ‘InstallKA‘.2018/08/04 10:32:47 CLSRSC-594: Executing installation step 17 of 20: ‘InitConfig‘.CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘db40‘CRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘db40‘ has completedCRS-4133: Oracle High Availability Services has been stopped.CRS-4123: Oracle High Availability Services has been started.CRS-2672: Attempting to start ‘ora.evmd‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.mdnsd‘ on ‘db40‘CRS-2676: Start of ‘ora.mdnsd‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.evmd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.gpnpd‘ on ‘db40‘CRS-2676: Start of ‘ora.gpnpd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.cssdmonitor‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.gipcd‘ on ‘db40‘CRS-2676: Start of ‘ora.cssdmonitor‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.gipcd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.cssd‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.diskmon‘ on ‘db40‘CRS-2676: Start of ‘ora.diskmon‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.cssd‘ on ‘db40‘ succeeded[INFO] [DBT-30001] Disk groups created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-180804AM103332.log for details.2018/08/04 10:37:38 CLSRSC-482: Running command: ‘/u01/app/18.3.0/grid/bin/ocrconfig -upgrade grid oinstall‘CRS-2672: Attempting to start ‘ora.crf‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.storage‘ on ‘db40‘CRS-2676: Start of ‘ora.storage‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.crf‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.crsd‘ on ‘db40‘CRS-2676: Start of ‘ora.crsd‘ on ‘db40‘ succeededCRS-4256: Updating the profileSuccessful addition of voting disk e234d69db62c4f41bff377eec5bed671.Successful addition of voting disk eb9d2950a5aa4f4cbfa46432f7c4f709.Successful addition of voting disk 84c44e2025be4fe3bf7d5a7a4049d4fd.Successfully replaced voting disk group with +OCRVT.CRS-4256: Updating the profileCRS-4266: Voting file(s) successfully replaced## STATE File Universal Id File Name Disk group-- ----- ----------------- --------- --------- 1. ONLINE e234d69db62c4f41bff377eec5bed671 (/dev/mapper/mpatha) [OCRVT] 2. ONLINE eb9d2950a5aa4f4cbfa46432f7c4f709 (/dev/mapper/mpathb) [OCRVT] 3. ONLINE 84c44e2025be4fe3bf7d5a7a4049d4fd (/dev/mapper/mpathc) [OCRVT]Located 3 voting disk(s).CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘db40‘CRS-2673: Attempting to stop ‘ora.crsd‘ on ‘db40‘CRS-2677: Stop of ‘ora.crsd‘ on ‘db40‘ succeededCRS-2673: Attempting to stop ‘ora.storage‘ on ‘db40‘CRS-2673: Attempting to stop ‘ora.crf‘ on ‘db40‘CRS-2673: Attempting to stop ‘ora.drivers.acfs‘ on ‘db40‘CRS-2673: Attempting to stop ‘ora.mdnsd‘ on ‘db40‘CRS-2677: Stop of ‘ora.crf‘ on ‘db40‘ succeededCRS-2677: Stop of ‘ora.storage‘ on ‘db40‘ succeededCRS-2673: Attempting to stop ‘ora.asm‘ on ‘db40‘CRS-2677: Stop of ‘ora.drivers.acfs‘ on ‘db40‘ succeededCRS-2677: Stop of ‘ora.mdnsd‘ on ‘db40‘ succeededCRS-2677: Stop of ‘ora.asm‘ on ‘db40‘ succeededCRS-2673: Attempting to stop ‘ora.cluster_interconnect.haip‘ on ‘db40‘CRS-2677: Stop of ‘ora.cluster_interconnect.haip‘ on ‘db40‘ succeededCRS-2673: Attempting to stop ‘ora.ctssd‘ on ‘db40‘CRS-2673: Attempting to stop ‘ora.evmd‘ on ‘db40‘CRS-2677: Stop of ‘ora.evmd‘ on ‘db40‘ succeededCRS-2677: Stop of ‘ora.ctssd‘ on ‘db40‘ succeededCRS-2673: Attempting to stop ‘ora.cssd‘ on ‘db40‘CRS-2677: Stop of ‘ora.cssd‘ on ‘db40‘ succeededCRS-2673: Attempting to stop ‘ora.gipcd‘ on ‘db40‘CRS-2673: Attempting to stop ‘ora.gpnpd‘ on ‘db40‘CRS-2677: Stop of ‘ora.gipcd‘ on ‘db40‘ succeededCRS-2677: Stop of ‘ora.gpnpd‘ on ‘db40‘ succeededCRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘db40‘ has completedCRS-4133: Oracle High Availability Services has been stopped.2018/08/04 10:42:19 CLSRSC-594: Executing installation step 18 of 20: ‘StartCluster‘.CRS-4123: Starting Oracle High Availability Services-managed resourcesCRS-2672: Attempting to start ‘ora.evmd‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.mdnsd‘ on ‘db40‘CRS-2676: Start of ‘ora.mdnsd‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.evmd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.gpnpd‘ on ‘db40‘CRS-2676: Start of ‘ora.gpnpd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.gipcd‘ on ‘db40‘CRS-2676: Start of ‘ora.gipcd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.crf‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.cssdmonitor‘ on ‘db40‘CRS-2676: Start of ‘ora.cssdmonitor‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.cssd‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.diskmon‘ on ‘db40‘CRS-2676: Start of ‘ora.diskmon‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.crf‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.cssd‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.cluster_interconnect.haip‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.ctssd‘ on ‘db40‘CRS-2676: Start of ‘ora.ctssd‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.cluster_interconnect.haip‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.asm‘ on ‘db40‘CRS-2676: Start of ‘ora.asm‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.storage‘ on ‘db40‘CRS-2676: Start of ‘ora.storage‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.crsd‘ on ‘db40‘CRS-2676: Start of ‘ora.crsd‘ on ‘db40‘ succeededCRS-6023: Starting Oracle Cluster Ready Services-managed resourcesCRS-6017: Processing resource auto-start for servers: db40CRS-6016: Resource auto-start has completed for server db40CRS-6024: Completed start of Oracle Cluster Ready Services-managed resourcesCRS-4123: Oracle High Availability Services has been started.2018/08/04 10:45:28 CLSRSC-343: Successfully started Oracle Clusterware stack2018/08/04 10:45:28 CLSRSC-594: Executing installation step 19 of 20: ‘ConfigNode‘.CRS-2672: Attempting to start ‘ora.ASMNET1LSNR_ASM.lsnr‘ on ‘db40‘CRS-2676: Start of ‘ora.ASMNET1LSNR_ASM.lsnr‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.asm‘ on ‘db40‘CRS-2676: Start of ‘ora.asm‘ on ‘db40‘ succeededCRS-2672: Attempting to start ‘ora.OCRVT.dg‘ on ‘db40‘CRS-2676: Start of ‘ora.OCRVT.dg‘ on ‘db40‘ succeeded2018/08/04 10:49:35 CLSRSC-594: Executing installation step 20 of 20: ‘PostConfig‘.[INFO] [DBT-30001] Disk groups created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-180804AM104944.log for details.2018/08/04 10:55:24 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded执行成功后，在第二个节点root执行脚本：
[root@db42 app]# /u01/app/oraInventory/orainstRoot.shChanging permissions of /u01/app/oraInventory.Adding read,write permissions for group.Removing read,write,execute permissions for world.Changing groupname of /u01/app/oraInventory to oinstall.The execution of the script is complete.[root@db42 app]# /u01/app/18.3.0/grid/root.shPerforming root user operation.The following environment variables are set as: ORACLE_OWNER= grid ORACLE_HOME= /u01/app/18.3.0/gridEnter the full pathname of the local bin directory: [/usr/local/bin]: Copying dbhome to /usr/local/bin ... Copying oraenv to /usr/local/bin ... Copying coraenv to /usr/local/bin ...Creating /etc/oratab file...Entries will be added to the /etc/oratab file as needed byDatabase Configuration Assistant when a database is createdFinished running generic part of root script.Now product-specific root actions will be performed.Relinking oracle with rac_on optionUsing configuration parameter file: /u01/app/18.3.0/grid/crs/install/crsconfig_paramsThe log of current session can be found at: /u01/app/grid/crsdata/db42/crsconfig/rootcrs_db42_2018-08-04_11-09-32AM.log2018/08/04 11:09:50 CLSRSC-594: Executing installation step 1 of 20: ‘SetupTFA‘.2018/08/04 11:09:50 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.2018/08/04 11:10:38 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.2018/08/04 11:10:38 CLSRSC-594: Executing installation step 2 of 20: ‘ValidateEnv‘.2018/08/04 11:10:38 CLSRSC-363: User ignored prerequisites during installation2018/08/04 11:10:39 CLSRSC-594: Executing installation step 3 of 20: ‘CheckFirstNode‘.2018/08/04 11:10:41 CLSRSC-594: Executing installation step 4 of 20: ‘GenSiteGUIDs‘.2018/08/04 11:10:42 CLSRSC-594: Executing installation step 5 of 20: ‘SaveParamFile‘.2018/08/04 11:10:48 CLSRSC-594: Executing installation step 6 of 20: ‘SetupOSD‘.2018/08/04 11:10:48 CLSRSC-594: Executing installation step 7 of 20: ‘CheckCRSConfig‘.2018/08/04 11:10:49 CLSRSC-594: Executing installation step 8 of 20: ‘SetupLocalGPNP‘.2018/08/04 11:10:52 CLSRSC-594: Executing installation step 9 of 20: ‘CreateRootCert‘.2018/08/04 11:10:52 CLSRSC-594: Executing installation step 10 of 20: ‘ConfigOLR‘.2018/08/04 11:10:58 CLSRSC-594: Executing installation step 11 of 20: ‘ConfigCHMOS‘.2018/08/04 11:10:58 CLSRSC-594: Executing installation step 12 of 20: ‘CreateOHASD‘.2018/08/04 11:11:01 CLSRSC-594: Executing installation step 13 of 20: ‘ConfigOHASD‘.2018/08/04 11:11:02 CLSRSC-330: Adding Clusterware entries to file ‘oracle-ohasd.service‘2018/08/04 11:13:06 CLSRSC-594: Executing installation step 14 of 20: ‘InstallAFD‘.2018/08/04 11:13:10 CLSRSC-594: Executing installation step 15 of 20: ‘InstallACFS‘.CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘db42‘CRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘db42‘ has completedCRS-4133: Oracle High Availability Services has been stopped.CRS-4123: Oracle High Availability Services has been started.2018/08/04 11:14:48 CLSRSC-594: Executing installation step 16 of 20: ‘InstallKA‘.2018/08/04 11:14:50 CLSRSC-594: Executing installation step 17 of 20: ‘InitConfig‘.CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘db42‘CRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘db42‘ has completedCRS-4133: Oracle High Availability Services has been stopped.CRS-4123: Oracle High Availability Services has been started.CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘db42‘CRS-2673: Attempting to stop ‘ora.drivers.acfs‘ on ‘db42‘CRS-2677: Stop of ‘ora.drivers.acfs‘ on ‘db42‘ succeededCRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘db42‘ has completedCRS-4133: Oracle High Availability Services has been stopped.2018/08/04 11:15:18 CLSRSC-594: Executing installation step 18 of 20: ‘StartCluster‘.CRS-4123: Starting Oracle High Availability Services-managed resourcesCRS-2672: Attempting to start ‘ora.evmd‘ on ‘db42‘CRS-2672: Attempting to start ‘ora.mdnsd‘ on ‘db42‘CRS-2676: Start of ‘ora.evmd‘ on ‘db42‘ succeededCRS-2676: Start of ‘ora.mdnsd‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.gpnpd‘ on ‘db42‘CRS-2676: Start of ‘ora.gpnpd‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.gipcd‘ on ‘db42‘CRS-2676: Start of ‘ora.gipcd‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.crf‘ on ‘db42‘CRS-2672: Attempting to start ‘ora.cssdmonitor‘ on ‘db42‘CRS-2676: Start of ‘ora.crf‘ on ‘db42‘ succeededCRS-2676: Start of ‘ora.cssdmonitor‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.cssd‘ on ‘db42‘CRS-2672: Attempting to start ‘ora.diskmon‘ on ‘db42‘CRS-2676: Start of ‘ora.diskmon‘ on ‘db42‘ succeededCRS-2676: Start of ‘ora.cssd‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.cluster_interconnect.haip‘ on ‘db42‘CRS-2672: Attempting to start ‘ora.ctssd‘ on ‘db42‘CRS-2676: Start of ‘ora.ctssd‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.crsd‘ on ‘db42‘CRS-2676: Start of ‘ora.crsd‘ on ‘db42‘ succeededCRS-2676: Start of ‘ora.cluster_interconnect.haip‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.asm‘ on ‘db42‘CRS-2676: Start of ‘ora.asm‘ on ‘db42‘ succeededCRS-6017: Processing resource auto-start for servers: db42CRS-2672: Attempting to start ‘ora.ASMNET1LSNR_ASM.lsnr‘ on ‘db42‘CRS-2672: Attempting to start ‘ora.ons‘ on ‘db42‘CRS-2676: Start of ‘ora.ASMNET1LSNR_ASM.lsnr‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.asm‘ on ‘db42‘CRS-2676: Start of ‘ora.ons‘ on ‘db42‘ succeededCRS-2676: Start of ‘ora.asm‘ on ‘db42‘ succeededCRS-2672: Attempting to start ‘ora.proxy_advm‘ on ‘db40‘CRS-2672: Attempting to start ‘ora.proxy_advm‘ on ‘db42‘CRS-2676: Start of ‘ora.proxy_advm‘ on ‘db40‘ succeededCRS-2676: Start of ‘ora.proxy_advm‘ on ‘db42‘ succeededCRS-6016: Resource auto-start has completed for server db42CRS-6024: Completed start of Oracle Cluster Ready Services-managed resourcesCRS-4123: Oracle High Availability Services has been started.2018/08/04 11:21:10 CLSRSC-343: Successfully started Oracle Clusterware stack2018/08/04 11:21:11 CLSRSC-594: Executing installation step 19 of 20: ‘ConfigNode‘.2018/08/04 11:21:52 CLSRSC-594: Executing installation step 20 of 20: ‘PostConfig‘.2018/08/04 11:22:06 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeededroot脚本成功执行完后继续安装:
这段时间也很漫长，看来Oracle集群软件是越来越庞大了，老DBA们此时此刻有没有怀念11g甚至10g的时代呢？

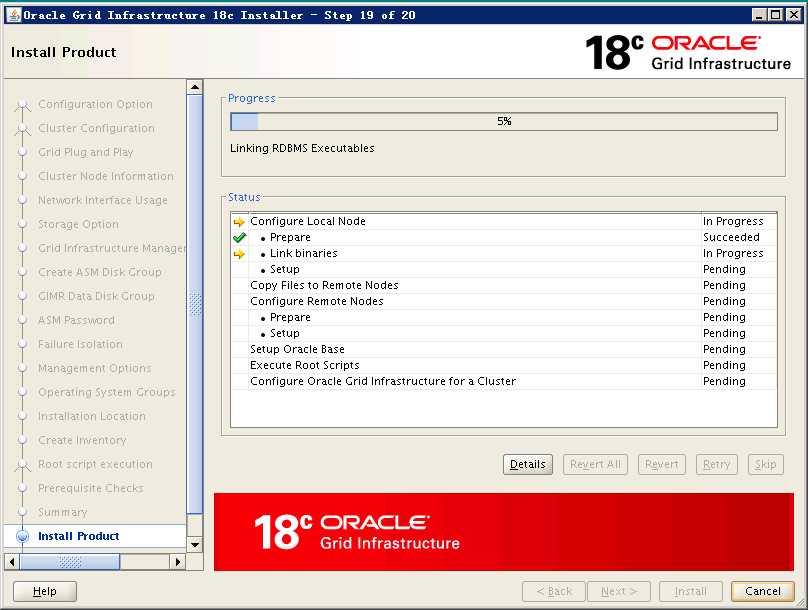

安装过程中可以跟踪安装日志：
tail -20f /tmp/GridSetupActions2018-08-03_11-27-06PM/gridSetupActions2018-08-03_11-27-06PM.log注：日志中可以看到有一个阶段starting read loop消耗了1个多小时才进入到下个阶段，这很可能是有异常导致时间过长，但即使排除这个异常时间段依然还有将近2小时的时间。
INFO: [Aug 4, 2018 2:04:42 PM] ... GenericInternalPlugIn: starting read loop.INFO: [Aug 4, 2018 3:25:37 PM] Completed Plugin named: mgmtca

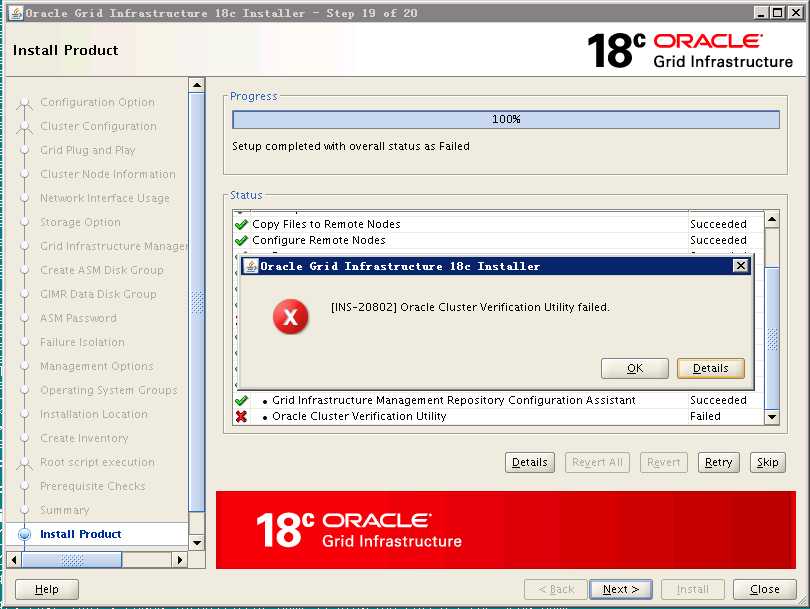

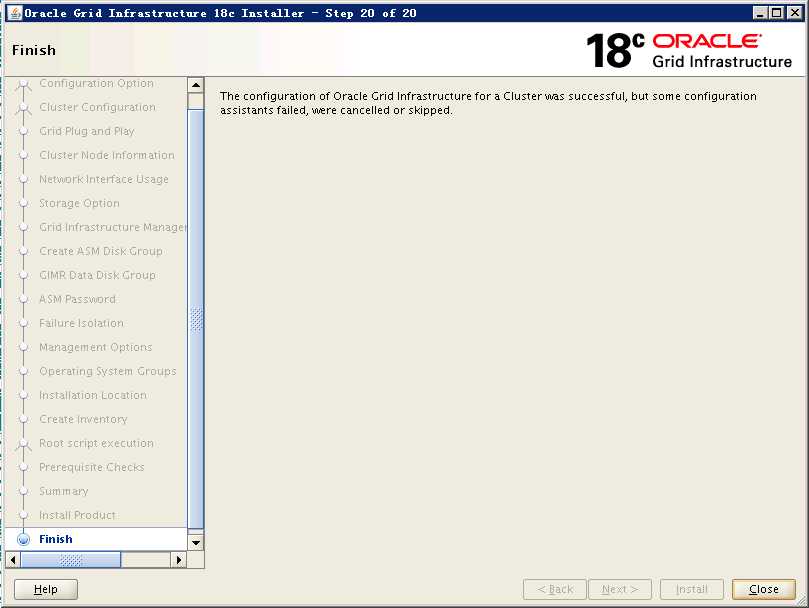

注：最后这个报错提示，查看日志发现是因为使用了一个scan ip的提示，可以忽略。
至此GI配置完成。
crsctl stat res -t查看集群资源状态信息，看到18c又新出现一些资源了，看来DBA又有新东西需要学习了~
[grid@db40 grid]$ crsctl stat res -t--------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources--------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.LISTENER.lsnr ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.MGMT.GHCHKPT.advm OFFLINE OFFLINE db40 STABLE OFFLINE OFFLINE db42 STABLEora.MGMT.dg ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.OCRVT.dg ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.chad ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.helper OFFLINE OFFLINE db40 STABLE OFFLINE OFFLINE db42 IDLE,STABLEora.mgmt.ghchkpt.acfs OFFLINE OFFLINE db40 volume /opt/oracle/r hp_images/chkbase is unmounted,STABLE OFFLINE OFFLINE db42 STABLEora.net1.network ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.ons ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLEora.proxy_advm ONLINE ONLINE db40 STABLE ONLINE ONLINE db42 STABLE--------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db40 STABLEora.MGMTLSNR 1 ONLINE ONLINE db40 169.254.7.255 10.0.0 .40,STABLEora.asm 1 ONLINE ONLINE db40 Started,STABLE 2 ONLINE ONLINE db42 Started,STABLE 3 OFFLINE OFFLINE STABLEora.cvu 1 ONLINE ONLINE db40 STABLEora.db40.vip 1 ONLINE ONLINE db40 STABLEora.db42.vip 1 ONLINE ONLINE db42 STABLEora.mgmtdb 1 ONLINE ONLINE db40 Open,STABLEora.qosmserver 1 ONLINE ONLINE db40 STABLEora.rhpserver 1 OFFLINE OFFLINE STABLEora.scan1.vip 1 ONLINE ONLINE db40 STABLE--------------------------------------------------------------------------------crsctl stat res -t -init
--------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.asm 1 ONLINE ONLINE db40 Started,STABLEora.cluster_interconnect.haip 1 ONLINE ONLINE db40 STABLEora.crf 1 ONLINE ONLINE db40 STABLEora.crsd 1 ONLINE ONLINE db40 STABLEora.cssd 1 ONLINE ONLINE db40 STABLEora.cssdmonitor 1 ONLINE ONLINE db40 STABLEora.ctssd 1 ONLINE ONLINE db40 ACTIVE:0,STABLEora.diskmon 1 OFFLINE OFFLINE STABLEora.drivers.acfs 1 ONLINE ONLINE db40 STABLEora.evmd 1 ONLINE ONLINE db40 STABLEora.gipcd 1 ONLINE ONLINE db40 STABLEora.gpnpd 1 ONLINE ONLINE db40 STABLEora.mdnsd 1 ONLINE ONLINE db40 STABLEora.storage 1 ONLINE ONLINE db40 STABLE--------------------------------------------------------------------------------节点2被重启，查看节点1状态：
[grid@db40 trace]$ crsctl stat res -t--------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources--------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr ONLINE ONLINE db40 STABLEora.LISTENER.lsnr ONLINE ONLINE db40 STABLEora.MGMT.GHCHKPT.advm OFFLINE OFFLINE db40 STABLEora.MGMT.dg ONLINE ONLINE db40 STABLEora.OCRVT.dg ONLINE ONLINE db40 STABLEora.chad ONLINE ONLINE db40 STABLEora.helper OFFLINE OFFLINE db40 STABLEora.mgmt.ghchkpt.acfs OFFLINE OFFLINE db40 volume /opt/oracle/r hp_images/chkbase is unmounted,STABLEora.net1.network ONLINE ONLINE db40 STABLEora.ons ONLINE ONLINE db40 STABLEora.proxy_advm ONLINE ONLINE db40 STABLE--------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db40 STABLEora.MGMTLSNR 1 ONLINE ONLINE db40 169.254.7.255 10.0.0 .40,STABLEora.asm 1 ONLINE ONLINE db40 Started,STABLE 2 ONLINE OFFLINE STABLE 3 OFFLINE OFFLINE STABLEora.cvu 1 ONLINE ONLINE db40 STABLEora.db40.vip 1 ONLINE ONLINE db40 STABLEora.db42.vip 1 ONLINE INTERMEDIATE db40 FAILED OVER,STABLEora.mgmtdb 1 ONLINE ONLINE db40 Open,STABLEora.qosmserver 1 ONLINE ONLINE db40 STABLEora.rhpserver 1 OFFLINE OFFLINE STABLEora.scan1.vip 1 ONLINE ONLINE db40 STABLE--------------------------------------------------------------------------------节点1被重启，查看节点2状态：
[grid@db42 ~]$ crsctl stat res -t--------------------------------------------------------------------------------Name Target State Server State details --------------------------------------------------------------------------------Local Resources--------------------------------------------------------------------------------ora.ASMNET1LSNR_ASM.lsnr ONLINE ONLINE db42 STABLEora.LISTENER.lsnr ONLINE ONLINE db42 STABLEora.MGMT.GHCHKPT.advm OFFLINE OFFLINE db42 STABLEora.MGMT.dg ONLINE INTERMEDIATE db42 STABLEora.OCRVT.dg ONLINE INTERMEDIATE db42 STABLEora.chad ONLINE ONLINE db42 STABLEora.helper OFFLINE OFFLINE db42 STABLEora.mgmt.ghchkpt.acfs OFFLINE OFFLINE db42 STABLEora.net1.network ONLINE ONLINE db42 STABLEora.ons ONLINE ONLINE db42 STABLEora.proxy_advm ONLINE ONLINE db42 STABLE--------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.LISTENER_SCAN1.lsnr 1 ONLINE ONLINE db42 STABLEora.MGMTLSNR 1 ONLINE ONLINE db42 169.254.7.154 10.0.0 .42,STABLEora.asm 1 ONLINE OFFLINE STABLE 2 ONLINE ONLINE db42 Started,STABLE 3 OFFLINE OFFLINE STABLEora.cvu 1 ONLINE ONLINE db42 STABLEora.db40.vip 1 ONLINE INTERMEDIATE db42 FAILED OVER,STABLEora.db42.vip 1 ONLINE ONLINE db42 STABLEora.mgmtdb 1 ONLINE ONLINE db42 Open,STABLEora.qosmserver 1 ONLINE ONLINE db42 STABLEora.rhpserver 1 OFFLINE OFFLINE STABLEora.scan1.vip 1 ONLINE ONLINE db42 STABLE--------------------------------------------------------------------------------附：集群日志位置：
[grid@db40 log]$ cd $ORACLE_BASE/diag/crs/db40/crs/trace [grid@db40 trace]$ pwd/u01/app/grid/diag/crs/db40/crs/trace[grid@db40 trace]$ tail -5f ocssd.trc2018-08-04 17:35:16.507 : CSSD:758277888: clssgmMbrDataUpdt: Sending member data change to GMP for group HB+ASM, memberID 17:2:12018-08-04 17:35:16.509 : CSSD:770635520: clssgmpcMemberDataUpdt: grockName HB+ASM memberID 17:2:1, datatype 1 datasize 42018-08-04 17:35:16.514 : CSSD:755123968: clssgmcpDataUpdtCmpl: Status 0 mbr data updt memberID 17:2:1 from clientID 1:39:22018-08-04 17:35:17.319 : CSSD:3337582336: clssnmSendingThread: sending status msg to all nodes2018-08-04 17:35:17.321 : CSSD:3337582336: clssnmSendingThread: sent 4 status msgs to all nodes2018-08-04 17:35:17.793 : CSSD:762750720: clssgmpcGMCReqWorkerThread: processing msg (0x7f2914038720) type 2, msg size 76, payload (0x7f291403874c) size 32, sequence 27970, for clientID 1:39:22018-08-04 17:35:18.424 : CSSD:758277888: clssgmMbrDataUpdt: Processing member data change type 1, size 4 for group HB+ASM, memberID 17:2:12018-08-04 17:35:18.424 : CSSD:758277888: clssgmMbrDataUpdt: Sending member data change to GMP for group HB+ASM, memberID 17:2:12018-08-04 17:35:18.425 : CSSD:770635520: clssgmpcMemberDataUpdt: grockName HB+ASM memberID 17:2:1, datatype 1 datasize 42018-08-04 17:35:18.427 : CSSD:755123968: clssgmcpDataUpdtCmpl: Status 0 mbr data updt memberID 17:2:1 from clientID 1:39:22018-08-04 17:35:19.083 : CSSD:755123968: clssgmSendEventsToMbrs: Group GR+DB_+ASM, member count 1, event master 0, event type 6, event incarn 346, event member count 1, pids 31422-21167708, 2018-08-04 17:35:19.446 : CSSD:762750720: clssgmpcGMCReqWorkerThread: processing msg (0x7f2914038720) type 2, msg size 76, payload (0x7f291403874c) size 32, sequence 27972, for clientID 1:37:2[grid@db40 trace]$ tail -20f alert.log Build version: 18.0.0.0.0 Build full version: 18.3.0.0.0 Build hash: 9256567290 Bug numbers: NoTransactionInformationCommands: Build version: 18.0.0.0.0 Build full version: 18.3.0.0.0 Build hash: 9256567290 Bug numbers: NoTransactionInformation2018-08-04 18:02:57.013 [CLSECHO(3376)]ACFS-9327: Verifying ADVM/ACFS devices.2018-08-04 18:02:57.058 [CLSECHO(3384)]ACFS-9156: Detecting control device ‘/dev/asm/.asm_ctl_spec‘.2018-08-04 18:02:57.115 [CLSECHO(3395)]ACFS-9156: Detecting control device ‘/dev/ofsctl‘.2018-08-04 18:02:58.991 [CLSECHO(3482)]ACFS-9294: updating file /etc/sysconfig/oracledrivers.conf2018-08-04 18:02:59.032 [CLSECHO(3490)]ACFS-9322: completed2018-08-04 18:03:00.398 [OSYSMOND(3571)]CRS-8500: Oracle Clusterware OSYSMOND process is starting with operating system process ID 35712018-08-04 18:03:00.324 [CSSDMONITOR(3567)]CRS-8500: Oracle Clusterware CSSDMONITOR process is starting with operating system process ID 35672018-08-04 18:03:00.796 [CSSDAGENT(3598)]CRS-8500: Oracle Clusterware CSSDAGENT process is starting with operating system process ID 35982018-08-04 18:03:01.461 [OCSSD(3621)]CRS-8500: Oracle Clusterware OCSSD process is starting with operating system process ID 36212018-08-04 18:03:03.374 [OCSSD(3621)]CRS-1713: CSSD daemon is started in hub mode2018-08-04 18:03:23.052 [OCSSD(3621)]CRS-1707: Lease acquisition for node db40 number 1 completed2018-08-04 18:03:29.122 [OCSSD(3621)]CRS-1605: CSSD voting file is online: /dev/mapper/mpathc; details in /u01/app/grid/diag/crs/db40/crs/trace/ocssd.trc.2018-08-04 18:03:29.150 [OCSSD(3621)]CRS-1605: CSSD voting file is online: /dev/mapper/mpathb; details in /u01/app/grid/diag/crs/db40/crs/trace/ocssd.trc.2018-08-04 18:03:31.087 [OCSSD(3621)]CRS-1605: CSSD voting file is online: /dev/mapper/mpatha; details in /u01/app/grid/diag/crs/db40/crs/trace/ocssd.trc.2018-08-04 18:03:33.767 [OCSSD(3621)]CRS-1601: CSSD Reconfiguration complete. Active nodes are db40 db42 .2018-08-04 18:03:35.311 [OLOGGERD(3862)]CRS-8500: Oracle Clusterware OLOGGERD process is starting with operating system process ID 38622018-08-04 18:03:35.833 [OCTSSD(3869)]CRS-8500: Oracle Clusterware OCTSSD process is starting with operating system process ID 38692018-08-04 18:03:36.055 [OCSSD(3621)]CRS-1720: Cluster Synchronization Services daemon (CSSD) is ready for operation.2018-08-04 18:03:39.797 [OCTSSD(3869)]CRS-2407: The new Cluster Time Synchronization Service reference node is host db42.2018-08-04 18:03:39.810 [OCTSSD(3869)]CRS-2401: The Cluster Time Synchronization Service started on host db40.2018-08-04 18:03:41.572 [CRSD(3956)]CRS-8500: Oracle Clusterware CRSD process is starting with operating system process ID 39562018-08-04 18:03:57.242 [CRSD(3956)]CRS-1012: The OCR service started on node db40.2018-08-04 18:03:59.550 [CRSD(3956)]CRS-1201: CRSD started on node db40.至此，12cR2的GI配置已全部完成。
