小程序实现左滑删除效果

小程序的左滑删除效果用的是组件 movable-area 和 movable-view

文档 : https://developers.weixin.qq.com/miniprogram/dev/component/movable-view.html



1、movable-area基本概念

(1)movable-area这个就是定义了一个移动的区域,跟普通的<view></view>的含义是一样的,不同在于,接着往下看;

注意:movable-area 必须设置width和height属性,不设置默认为10px

(2)movable-view这个就是一个可移动的视图容器,可以在页面中拖拽滑动。

movable-view 必须设置width和height属性,不设置默认为10px

movable-view 默认为绝对定位,top和left属性为0px

当movable-view小于movable-area时,movable-view的移动范围是在movable-area内;当movable-view大于movable-area时,movable-view的移动范围必须包含movable-area(x轴方向和y轴方向分开考虑)
  • 但是要注意: movable-view必须在<movable-area/>组件中,并且必须是直接子节点,否则不能移动。



movable-view 还有很多属性,这里就不介绍了.



2、页面结构

test.wxml

<!--pages/test/test.wxml--><view class="page"><movable-area class="m_a" > <movable-view class="data_list" direction="horizontal" inertia="true" out-of-bounds="true"> <view class="d_box"> <view class="data">内容内容内容内容内容内容内容</view> <view>删除</view> </view> </movable-view></movable-area></view>

test.wxss

/* pages/test/test.wxss */.page{ width: 100vw; height: 100vh;}.m_a{ width: 100%; height: 100%; border: 1rpx solid gray; }.data_list{ height: 200rpx; width: 120%; border: 1rpx solid red;}.d_box{ display: flex; justify-content: flex-start; justify-items: center; height: 100%;}.data{ width: 100vw; background: red;}

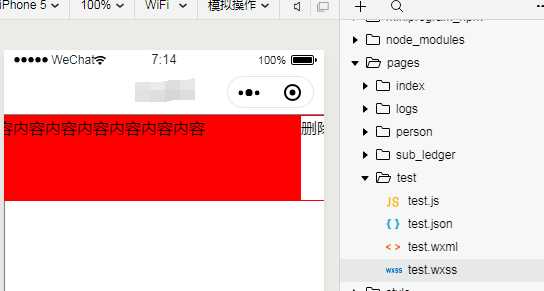

技术图片
